315 - Husqvarna Automower Robotic Lawn Mower (2016-02) WHEELS & TIRES Parts Diagram

Automower Robotic Lawn Mower

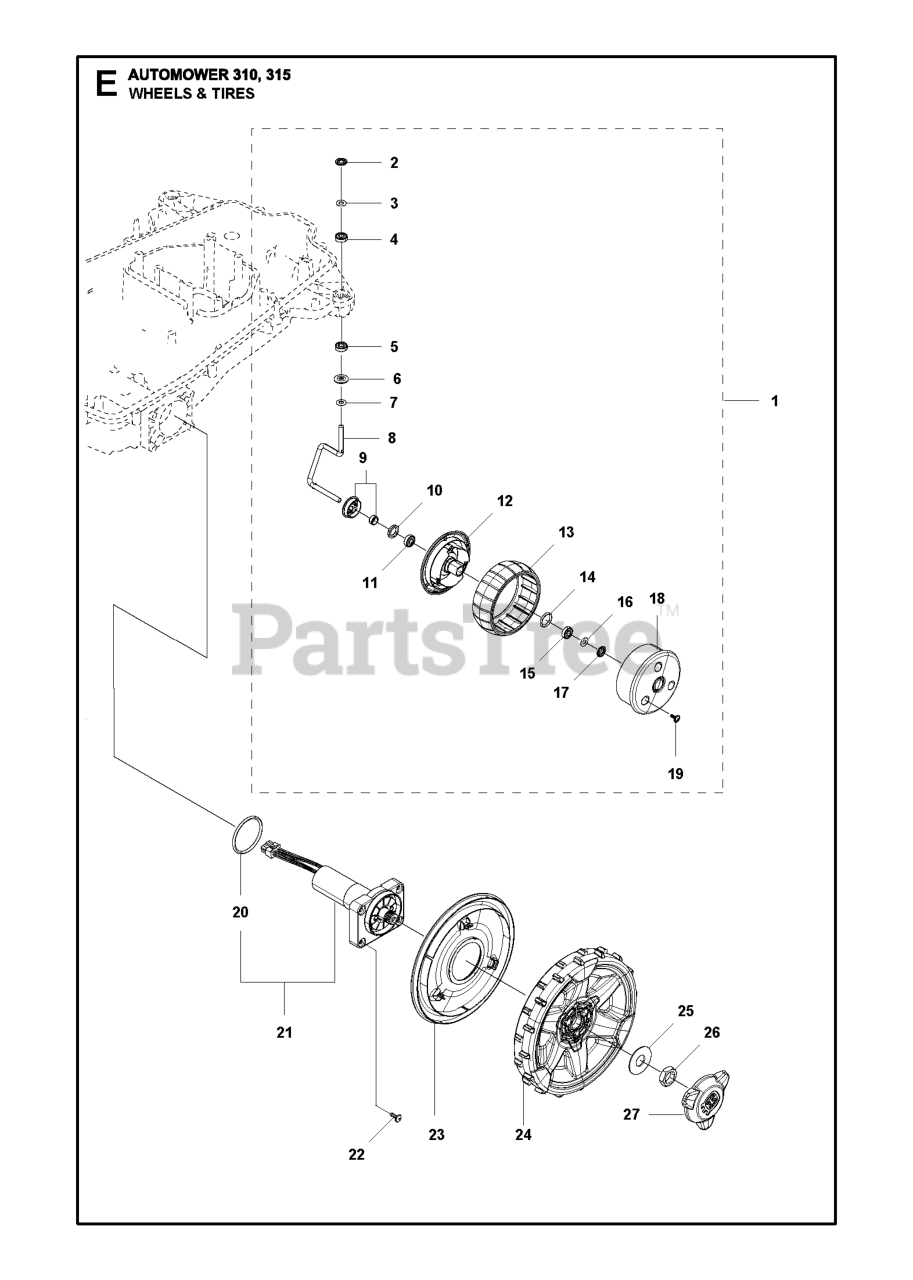

WHEELS & TIRES Parts Diagram

  • Title

24

Husqvarna 585066101

REAR WHEEL FINE THREAD
(Superseded to 590217501)

Note: Rear

$45.99

$

Usually ships in 3-10 days

0

15

Husqvarna 585214201

BALL BEARING SINGLE ROW S696

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 579457101

WHEEL FRONT WHEEL INSIDE

Note: Inside

$7.99

$

In Stock, only 2 left!

0

7

Husqvarna 585196801

WASHER FRONT WHEEL 6MM

$

$

Not available

9

Husqvarna 587449301

SHIELD KIT

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 535087802

WASHER

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 585214201

BALL BEARING SINGLE ROW S696

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 585214201

BALL BEARING SINGLE ROW S696

$10.99

$

Usually ships in 3-10 days

0

18

Husqvarna 579457201

WHEEL FRONT WHEEL OUTSIDE

Note: Outside

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 580487101

SEALING 12X18X3

$7.99

$

In Stock, only 3 left!

0

23

Husqvarna 585065601

COVER REAR WHEEL

Note: Rear Wheel

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 574449801

WHEEL RUBBER TYRE

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 585187201

SPINDLE FRONT WHEEL 6 MM

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 585214201

BALL BEARING SINGLE ROW S696

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 585196801

WASHER FRONT WHEEL 6MM

$

$

Not available

25

Husqvarna 586210601

WASHER WASHER REAR WHEEL 16X40

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 580445101

O-RING 2,62X15,54

$5.99

$

In Stock, only 2 left!

0

26

Husqvarna 731432401

HEXAGON THIN NUT

$17.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576019402

LOCKWASHER STARLOCK SS 6MM GEO

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 576019401

LOCKWASHER STARLOCK SS 6MM THI
(Superseded to 576019402)

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 580443902

O-RING LIGHT GREY

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 585196801

WASHER FRONT WHEEL 6MM

$

$

Not available

21

Husqvarna 587449404

Motor

$261.99

$

Usually ships in 3-10 days

0

22

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 587651901

WHEEL KIT FRONT

Note: Front

$113.99

$

Usually ships in 3-10 days

0

27

Husqvarna 579505502

HUB CAP REAR WHEEL NO CENTER P

$7.99

$

Usually ships in 3-10 days

0

19

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0
