315 - Husqvarna Automower Robotic Lawn Mower (2017-01) CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

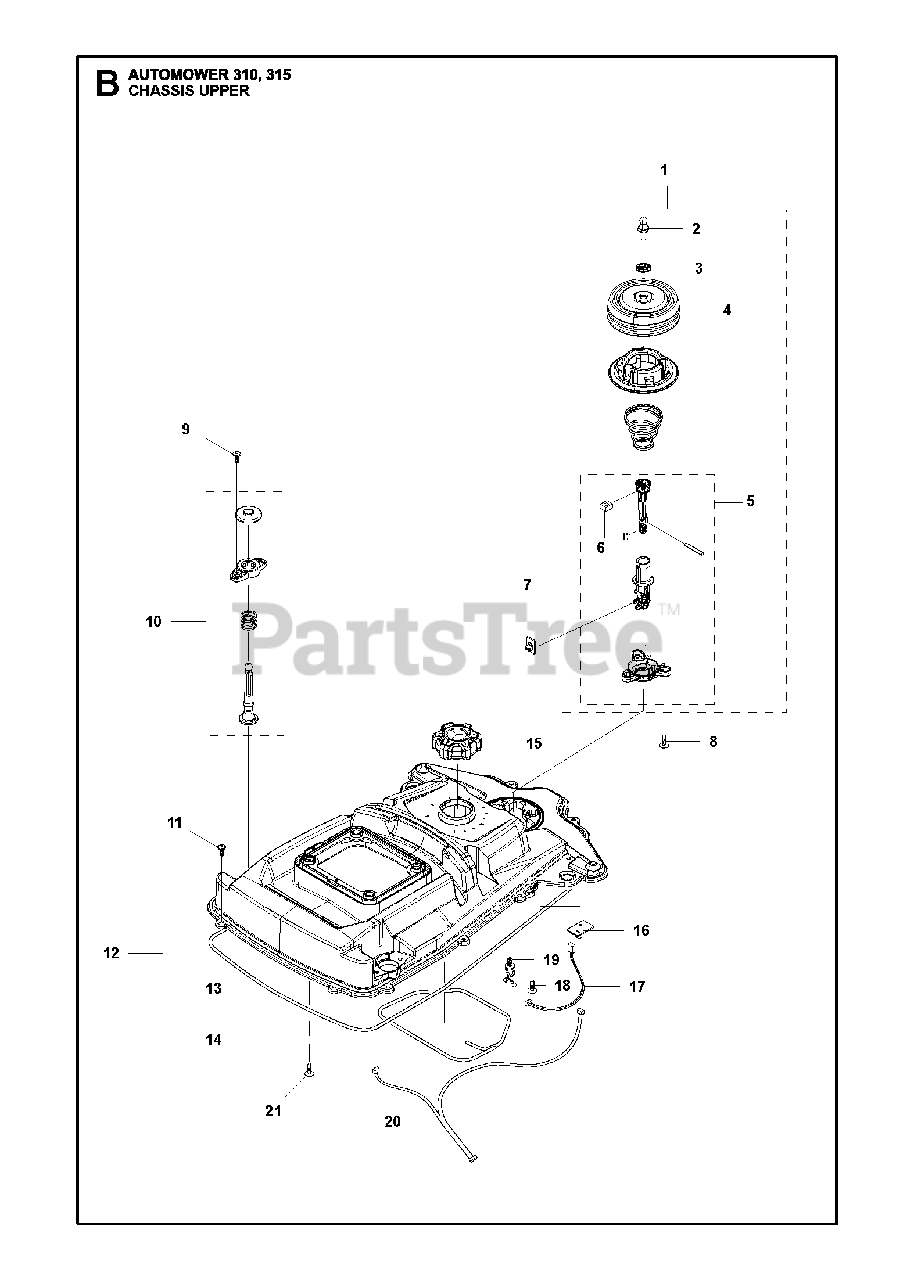

CHASSIS UPPER Parts Diagram

  • Title

1

Husqvarna 581620903

JOYSTICK KIT

Note: Joystick KIT Front

$94.99

$

Usually ships in 3-10 days

0

2

Husqvarna 580526701

STUD SNAPLOC

Note: Stud

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 579525701

WASHER JOYSTICK

Note: Washer

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 579474601

BELLOWS LIFT-COLLISION

Note: Bellows

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna 587448802

JOYSTICK KIT

Note: Joystick ASSY

$31.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503226601

NUT

Note: Square Nut

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 579669001

PRINTED CIRCUIT ASSY PCBA LIFT
(Superseded to 592852301)

Note: PCBA Lift Sensor

$35.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 18

0

9

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 501106201

JOYSTICK KIT
(Superseded to 594058601)

Note: Joystick KIT Rear

$29.99

$

Usually ships in 3-10 days

0

11

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587448902

CHASSIS KIT

Note: Chassis KIT

$102.99

$

Usually ships in 3-10 days

0

13

Husqvarna 574874709

SEALING STRIP P 15 CHASSI LOW

Note: Sealing Strip (1 pcs 5 mm)

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 574874708

SEALING STRIP P15 UPPER
(Superseded to 588616101)

Note: Sealing Strip (1 pcs 5 mm)

$18.99

$

Usually ships in 3-10 days

0

15

Husqvarna 585281401

KNOB HEIGHT ADJUSTMENT

Note: Knob

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 584969001

PRINTED CIRCUIT ASSY COLLISION
(Superseded to 592909501)

Note: PCBA Collision Sensor

$26.99

$

Usually ships in 3-10 days

0

17

Husqvarna 585208501

LOOM LIFT, COLLISION

Note: Loom Lift-Collision

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 580682901

HOLDER TWIST LOCK

Note: Holder Twist Lock

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 588797801

WIRING ASSY HMI

Note: Loom

$31.99

$

Usually ships in 3-10 days

0

21

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0
