315 - Husqvarna Automower Robotic Lawn Mower (2018) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

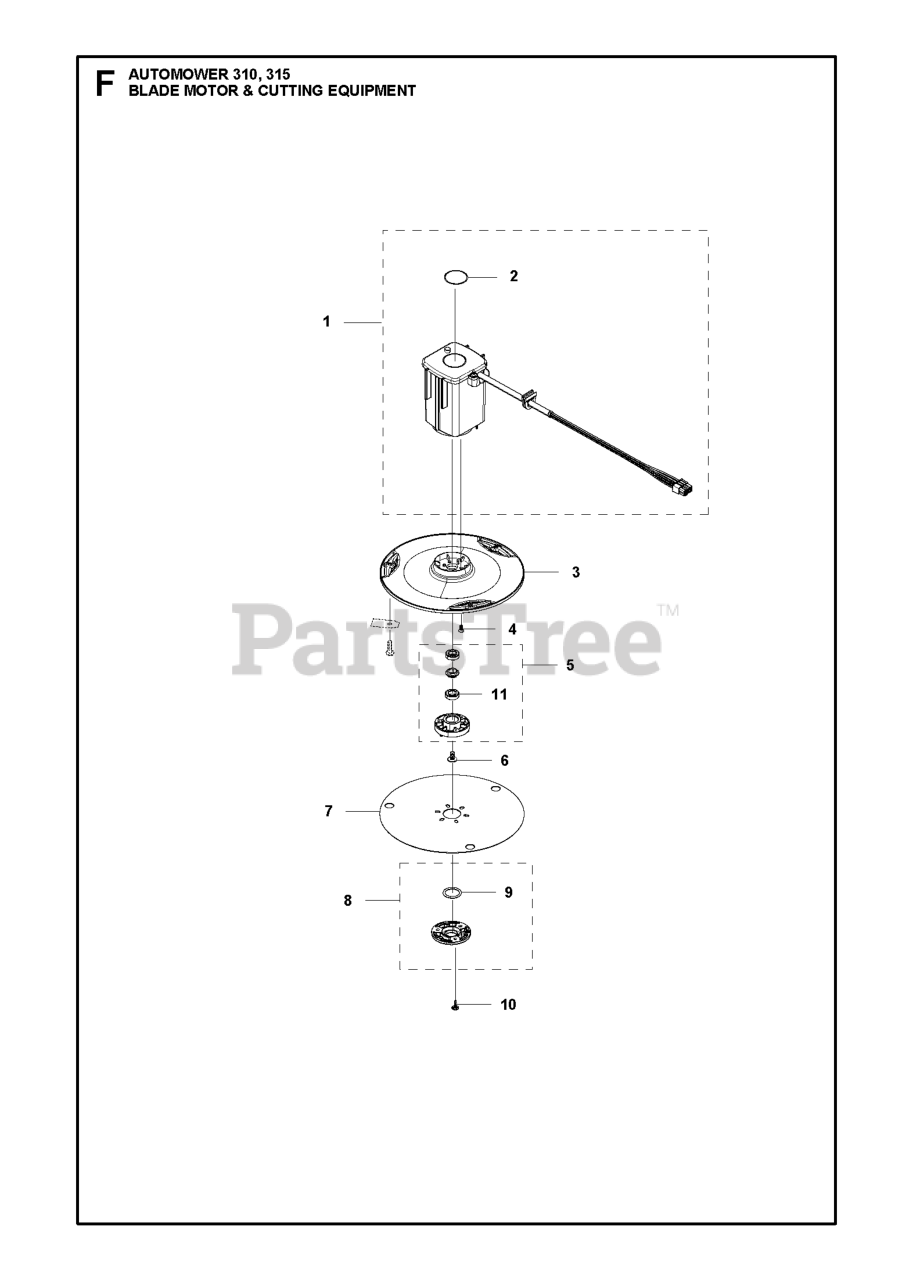

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

4

Husqvarna 535130502

SCREW TORX M4X8 8.8 NYLON PATC

Note: Screw

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 593080801

BALL BEARING BALL BEARING 535

Note: Tube 50 pcs

$341.99

$

Usually ships in 3-10 days

0

5

Husqvarna 588421702

BEARING HOUSING ASSY

Note: Bearing Housing ASSY

$28.99

$

In Stock, only 4 left!

0

3

Husqvarna 585296901

CUTTING DISC CUTTING WIDTH 22

Note: Cutting Disk

$20.99

$

In Stock, only 1 left!

0

11

Husqvarna 535075703

BALL BEARING 2 RS,TIGHT CLEAR

$6.99

$

In Stock, only 1 left!

0

9

Husqvarna 585297501

O-RING 20X2,5 MM

Note: O-Ring

$4.99

$

In Stock, Qty 10

0

6

Husqvarna 535076001

SCREW

Note: Screw

$4.99

$

In Stock, Qty 17

0

10

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 9

0

7

Husqvarna 585297001

SKID PLATE

Note: Skid Plate

$20.99

$

In Stock, only 2 left!

0

2

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

Note: Air Filter

$51.99

$

Usually ships in 3-10 days

0

8

Husqvarna 587449601

COVER KIT BEARING

Note: Bearing Cover

$13.99

$

Usually ships in 3-10 days

0

1

Husqvarna 501843701

MOTOR ASSY

Note: Motor ASSY

$193.99

$

Usually ships in 3-10 days

0
