315 - Husqvarna Automower Robotic Lawn Mower (Original) COVER Parts Diagram

Automower Robotic Lawn Mower

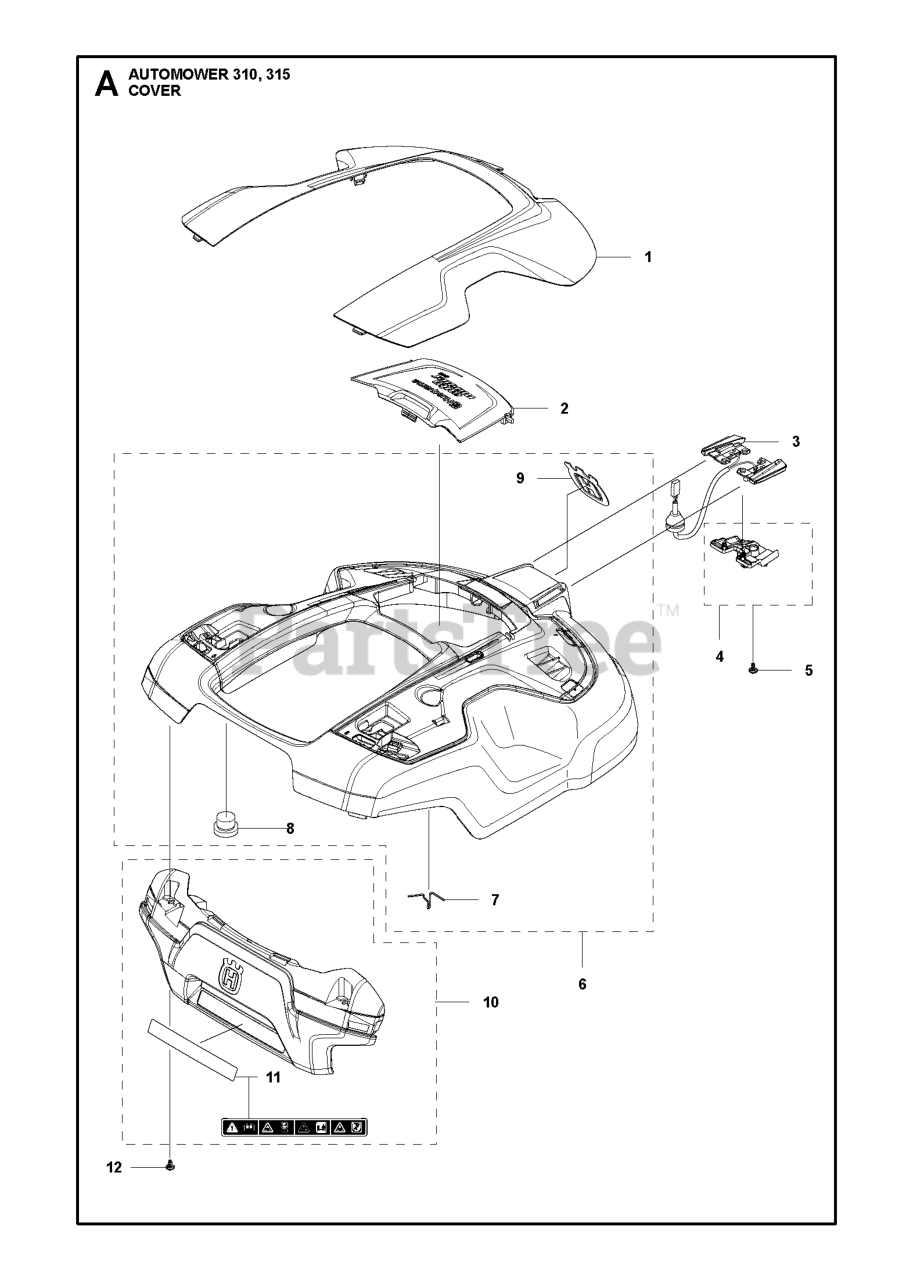

COVER Parts Diagram

  • Title

1

Husqvarna 587235801

GREY COVER
(Superseded to 587235810)

Note: Top Cover Grey

$

$

Not available

1

Husqvarna 587235802

WHITE COVER
(Superseded to 587235811)

Note: Top Cover White

$

$

Not available

1

Husqvarna 587235803

ORANGE COVER
(Superseded to 587235812)

Note: Top Cover Orange

$

$

Not available

2

Husqvarna 585538102

HOOD 315

Note: Hood 315

$35.99

$

Usually ships in 3-10 days

0

3

Husqvarna 585539204

CABLE ASSY CHARGING PLATE
(Superseded to 531144701)

Note: Charging Plate Wiring

$65.99

$

In Stock, only 2 left!

0

4

Husqvarna 587448602

HOLDER KIT MAGNET

Note: Holder KIT

$21.99

$

Usually ships in 3-10 days

0

5

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587448501

BODY KIT

Note: Body ASSY

$239.99

$

Usually ships in 3-10 days

0

7

Husqvarna 587419402

SPRING HOOD

Note: Spring Hood

$

$

Not available

8

Husqvarna 580526801

CAP SNAPLOC

Note: Cap Snaploc

$7.49

$

In Stock, only 2 left!

0

9

Husqvarna 574382101

DECAL HUSQVARNA CROWN HEIGHT 5

Note: Crown

$15.99

$

Usually ships in 3-10 days

0

10

Husqvarna 587448701

BUMPER KIT

Note: Bumper ASSY

$45.99

$

Usually ships in 3-10 days

0

11

Husqvarna 586359701

LABEL WARNING P15

Note: Label Warning

$8.49

$

Usually ships in 3-10 days

0

12

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 580532501

MAGNET NEODYMIUM D5X8

Note: For 2015 models

$

$

Not available

14

Husqvarna 580532501

MAGNET NEODYMIUM D5X8

Note: For 2015 models

$

$

Not available
