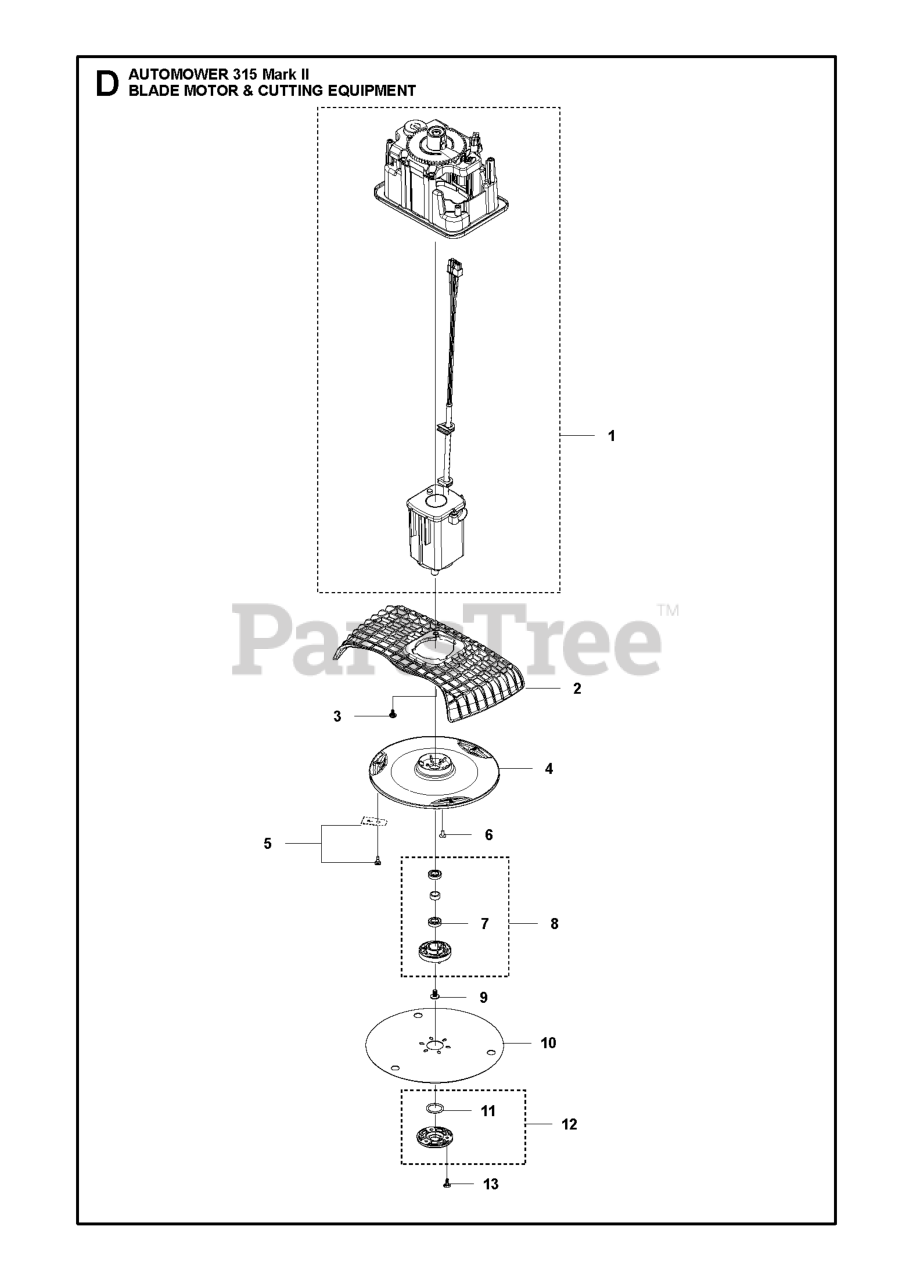

315 Mark II - Husqvarna Automower Robotic Lawn Mower BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

7

Husqvarna 535075703

BALL BEARING 2 RS,TIGHT CLEAR

$6.99

$

In Stock, only 1 left!

0

1

Husqvarna 529695901

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 598794801

NEEDS DESCRIPTION

$37.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 585297501

O-RING 20X2,5 MM

$4.99

$

In Stock, Qty 10

0

12

Husqvarna 587449601

COVER KIT BEARING

$13.99

$

Usually ships in 3-10 days

0

9

Husqvarna 535076001

SCREW

$4.99

$

In Stock, Qty 17

0

13

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 590508701

SCREW HEXAGON SOCKET BUTTON HE

$3.99

$

In Stock, only 3 left!

0

8

Husqvarna 588421702

BEARING HOUSING ASSY

$28.99

$

In Stock, only 4 left!

0

2

Husqvarna 596568901

NEEDS DESCRIPTION

$

$

Currently unavailable

5

Husqvarna 595084401

NEEDS DESCRIPTION
(Superseded to 595084411)

Note: Endurance 6 pcs, Blister

$30.99

$

Usually ships in 3-10 days

0

4

Husqvarna 531177401

CUTTING DISC

Note: incl. screws

$31.99

$

In Stock, only 2 left!

0

7

Husqvarna 593080801

BALL BEARING BALL BEARING 535

$341.99

$

Usually ships in 3-10 days

0
