315 X - Husqvarna Automower Robotic Lawn Mower (2019) WHEELS & TIRES Parts Diagram

Automower Robotic Lawn Mower

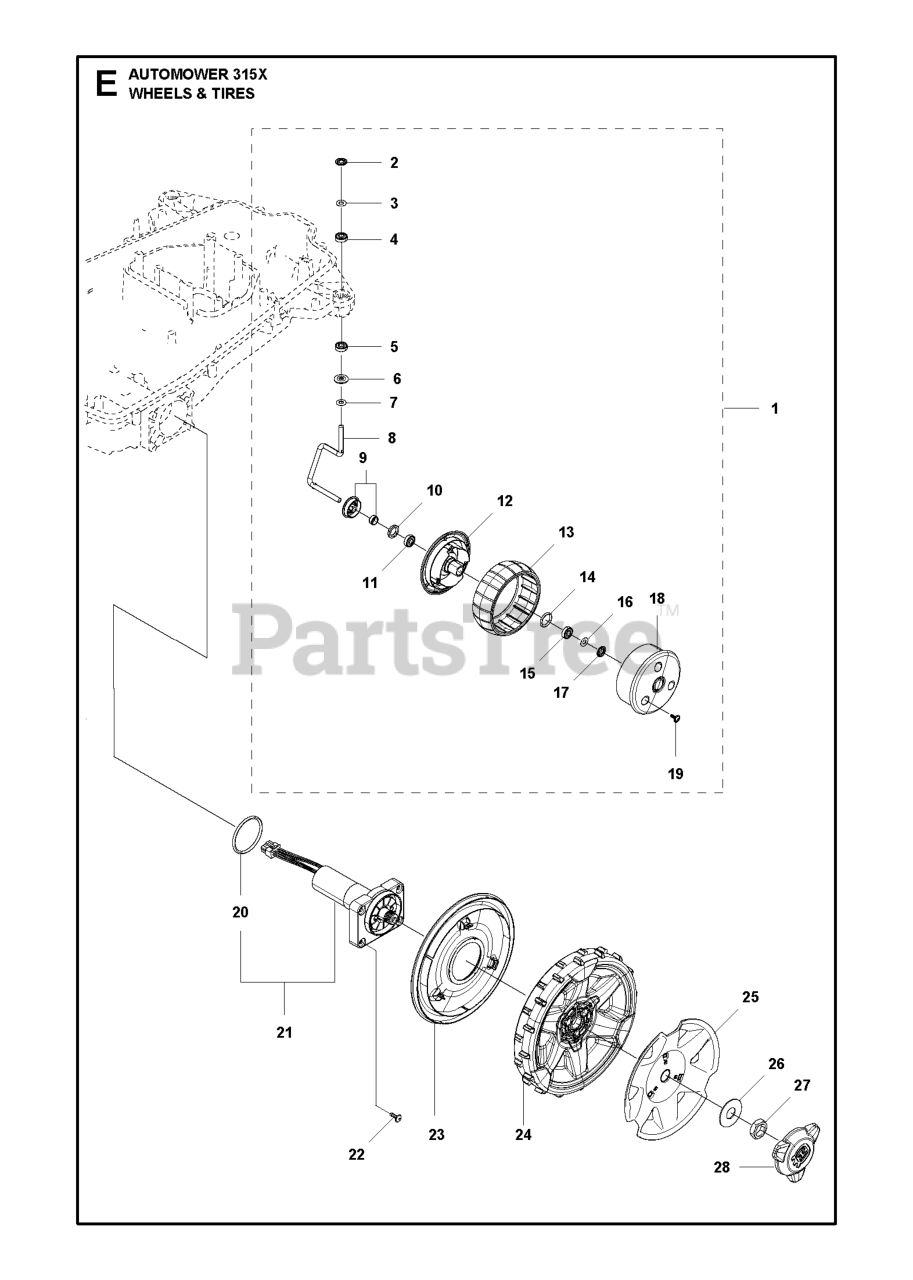

WHEELS & TIRES Parts Diagram

  • Title

3

Husqvarna 585196801

WASHER FRONT WHEEL 6MM

Note: Washer

$

$

Not available

10

Husqvarna 580487101

SEALING 12X18X3

Note: Sealing

$7.49

$

In Stock, Qty 12

0

14

Husqvarna 580445101

O-RING 2,62X15,54

Note: O-ring

$4.99

$

In Stock, Qty 12

0

25

Husqvarna 590217801

WHEEL COVER PAINTED

Note: Cover Painted

$

$

Not available

2

Husqvarna 576019402

LOCKWASHER STARLOCK SS 6MM GEO

Note: Lock Washer

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 586210601

WASHER WASHER REAR WHEEL 16X40

Note: Washer

$8.49

$

Usually ships in 3-10 days

0

17

Husqvarna 576019401

LOCKWASHER STARLOCK SS 6MM THI
(Superseded to 576019402)

Note: Lock Washer

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 585214201

BALL BEARING SINGLE ROW S696

Note: Ball Bearing

$9.99

$

Usually ships in 3-10 days

0

16

Husqvarna 585196801

WASHER FRONT WHEEL 6MM

Note: Washer

$

$

Not available

15

Husqvarna 585214201

BALL BEARING SINGLE ROW S696

Note: Ball Bearing

$9.99

$

Usually ships in 3-10 days

0

28

Husqvarna 579505502

HUB CAP REAR WHEEL NO CENTER P

Note: Hub Cap

$8.49

$

Usually ships in 3-10 days

0

5

Husqvarna 585214201

BALL BEARING SINGLE ROW S696

Note: Ball Bearing

$9.99

$

Usually ships in 3-10 days

0

7

Husqvarna 585196801

WASHER FRONT WHEEL 6MM

Note: Washer

$

$

Not available

24

Husqvarna 590217303

NEEDS DESCRIPTION

Note: Rear Wheel

$53.99

$

Usually ships in 3-10 days

0

8

Husqvarna 585187201

SPINDLE FRONT WHEEL 6 MM

Note: Spindle

$11.99

$

Usually ships in 3-10 days

0

21

Husqvarna 587449404

Motor

Note: Motor Assy (o-ring incl from suppl)

$275.99

$

Usually ships in 3-10 days

0

18

Husqvarna 579457201

WHEEL FRONT WHEEL OUTSIDE

Note: Wheel Outside

$6.99

$

In Stock, Qty 10

0

27

Husqvarna 731432401

HEXAGON THIN NUT

Note: Thin Nut

$8.49

$

Usually ships in 3-10 days

0

9

Husqvarna 587449301

SHIELD KIT

Note: Shield KIT

$14.99

$

Usually ships in 3-10 days

0

19

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 8

0

1

Husqvarna 587651901

WHEEL KIT FRONT

Note: Front Wheel KIT

$155.99

$

Usually ships in 3-10 days

0

6

Husqvarna 535087802

WASHER

Note: Washer

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 580443902

O-RING LIGHT GREY

Note: O-ring

$8.49

$

Usually ships in 3-10 days

0

23

Husqvarna 585065601

COVER REAR WHEEL
(Superseded to 590217303)

Note: Cover - Rear Wheel

$53.99

$

Usually ships in 3-10 days

0

12

Husqvarna 579457101

WHEEL FRONT WHEEL INSIDE

Note: Wheel Inside

$7.49

$

In Stock, Qty 10

0

11

Husqvarna 585214201

BALL BEARING SINGLE ROW S696

Note: Ball Bearing

$9.99

$

Usually ships in 3-10 days

0

22

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 574449801

WHEEL RUBBER TYRE

Note: Wheel Tyre

$9.49

$

In Stock, Qty 9

0
