315 X - Husqvarna Automower Robotic Lawn Mower (2020) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

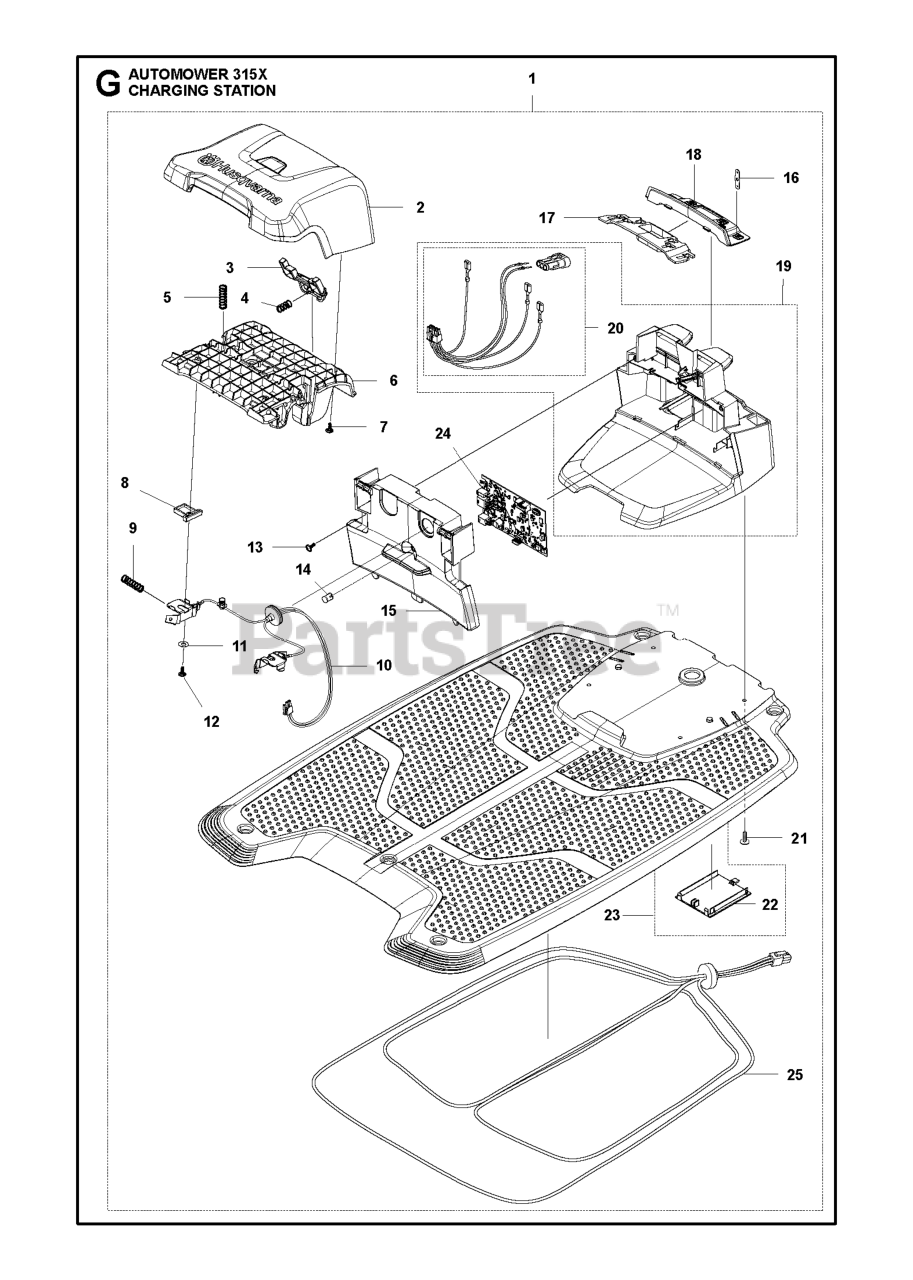

CHARGING STATION Parts Diagram

  • Title

8

Husqvarna 579460501

DISTANCE CHARGING STATION
(Superseded to 579460502)

Note: Distance

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 579459801

PAN CHARGING STATION 320, ONE

Note: Panel

$11.99

$

Usually ships in 3-10 days

0

6

Husqvarna 579458004

FRAME CHARGING STATION

Note: Frame

$29.99

$

Usually ships in 3-10 days

0

12

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 8

0

5

Husqvarna 580511401

SPRING SPRING CAP

Note: Spring

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 585071102

CAP CHARGING STATION

Note: Cap

$47.99

$

Usually ships in 3-10 days

0

24

Husqvarna 592909302

Circuits

Note: Printed Circuit ASSY PCBA

$179.99

$

Usually ships in 3-10 days

0

22

Husqvarna 585919301

COVER CHARGING PLATE

Note: Cover

$8.49

$

Usually ships in 3-10 days

0

14

Husqvarna 590217201

LENS DIODE

Note: Lens

$8.49

$

Usually ships in 3-10 days

0

3

Husqvarna 579462402

BUTTON CHARGING STATION, RELEA

Note: Button - Release

$8.49

$

Usually ships in 3-10 days

0

19

Husqvarna 588416101

HOUSING ASSY CHARGING STATION

Note: Housing

$131.99

$

Usually ships in 3-10 days

0

20

Husqvarna 587651501

LOOM KIT GENERATOR BOARD

Note: Loom KIT

$39.99

$

Usually ships in 3-10 days

0

23

Husqvarna 587651602

CHARGING PLATE KIT

Note: Charging Plate KIT

$159.99

$

Usually ships in 3-10 days

0

21

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 8

0

18

Husqvarna 579459901

HOLDER CHARGING STATION

Note: Holder

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 8

0

11

Husqvarna 734113741

WASHER

Note: Washer

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 580511401

SPRING SPRING CAP

Note: Spring

$5.99

$

Usually ships in 3-10 days

0

1

Husqvarna 585164002

CHARGING STATION ASSY HUSQVAR
(Superseded to 585164003)

Note: Charging Station

$718.99

$

Usually ships in 3-10 days

0

15

Husqvarna 585071401

LID CHARGING STATION

Note: Lid

$31.99

$

Usually ships in 3-10 days

0

10

Husqvarna 585539502

CABLE ASSY CHARGING CONTACTS
(Superseded to 531242201)

Note: Loom Charging Contact

$59.99

$

Usually ships in 3-10 days

0

25

Husqvarna 590527201

CABLE ASSY CHARGING PLATE SPAR

Note: Cable Assy

$39.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574487001

SPRING STOP BUTTON

Note: Spring

$5.99

$

In Stock, only 1 left!

0

7

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 8

0

16

Husqvarna 580504101

TERMINAL TERMINAL CHARGING STA

Note: Terminal

$14.99

$

Usually ships in 3-10 days

0
