31505 - Toro SnowMaster Snow Thrower (SN: 005000001 - 005999999) (1975) ENGINE ASSEMBLY Parts Diagram

SnowMaster Snow Thrower

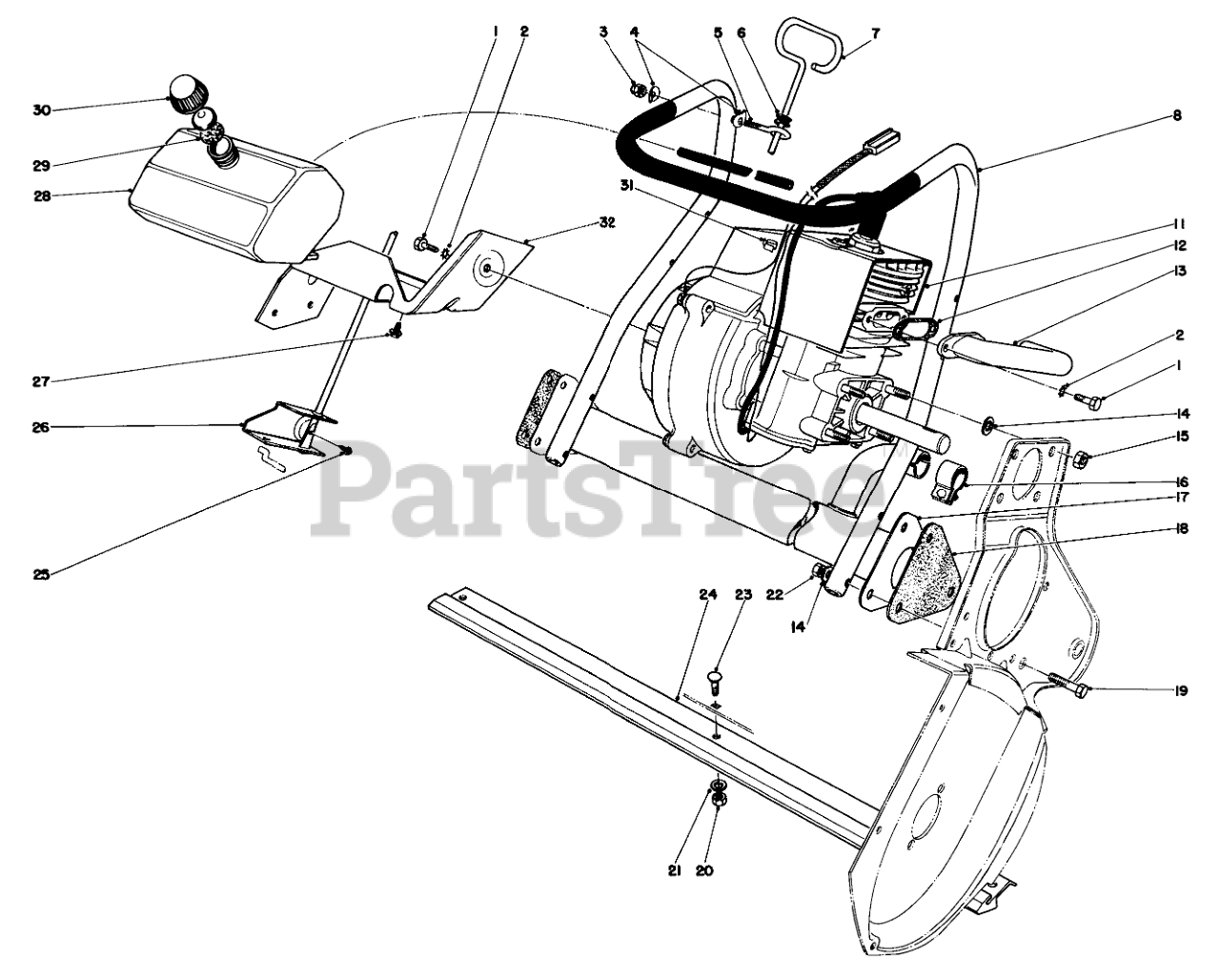

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

2

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

3

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

4

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 15

0

5

Toro 3-9278

Bolt-Eye
(Superseded to 52-7120)

$

$

Not available

6

Toro 237-73

GROMMET

$

$

Not available

7

Toro 23-4540

Rod Vane Adjustment

$

$

Not available

8

Toro 23-4250

Lower Handle
(Superseded to 49-1390)

$110.99

$

Usually ships in 3-6 days

0

11

Toro 221-476

Engine

$

$

Currently unavailable

12

Toro 23-3810

EXHAUST GASKET

$

$

Not available

13

Toro 23-3710

Exhaust Pipe
(Superseded to 52-7200)

$

$

Not available

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 32149-5

NUT-KEPS
(Superseded to 121-4698)

$1.99

$

Usually ships in 3-6 days

0

16

Toro 23-7760

MUFFLER CLAMP

$

$

Not available

17

Toro 23-3660

Muffler

$

$

Currently unavailable

18

Toro 23-3800

Gasket

$

$

Currently unavailable

19

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

21

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

23

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

24

Toro 23-3170

SCRAPER

$26.99

$

In Stock, Qty 11

0

25

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

26

Toro 23-4520

Bracket-Vane Adjustment
(Superseded to 39-0840)

$

$

Not available

27

Toro 32140-42

1/4-20X1/2 THDG SEMS

$

$

Not available

28

Toro 23-5230

Gas Tank

$

$

Not available

29

Toro 20-4620

GAS CAP GASKET

$8.99

$

In Stock, Qty 6

0

30

Toro 23-4380

Gas Cap (Incl. Ref. #29)
(Superseded to 42-0680)

$

$

Not available

31

Toro 218-214

CLIP

$

$

Currently unavailable

32

Toro 23-3230

Rear Support Engine

$

$

Not available

Toro 6-2269

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
