31505 - Toro SnowMaster Snow Thrower (SN: 005000001 - 005999999) (1975) Lower Main Frame Parts Diagram

SnowMaster Snow Thrower

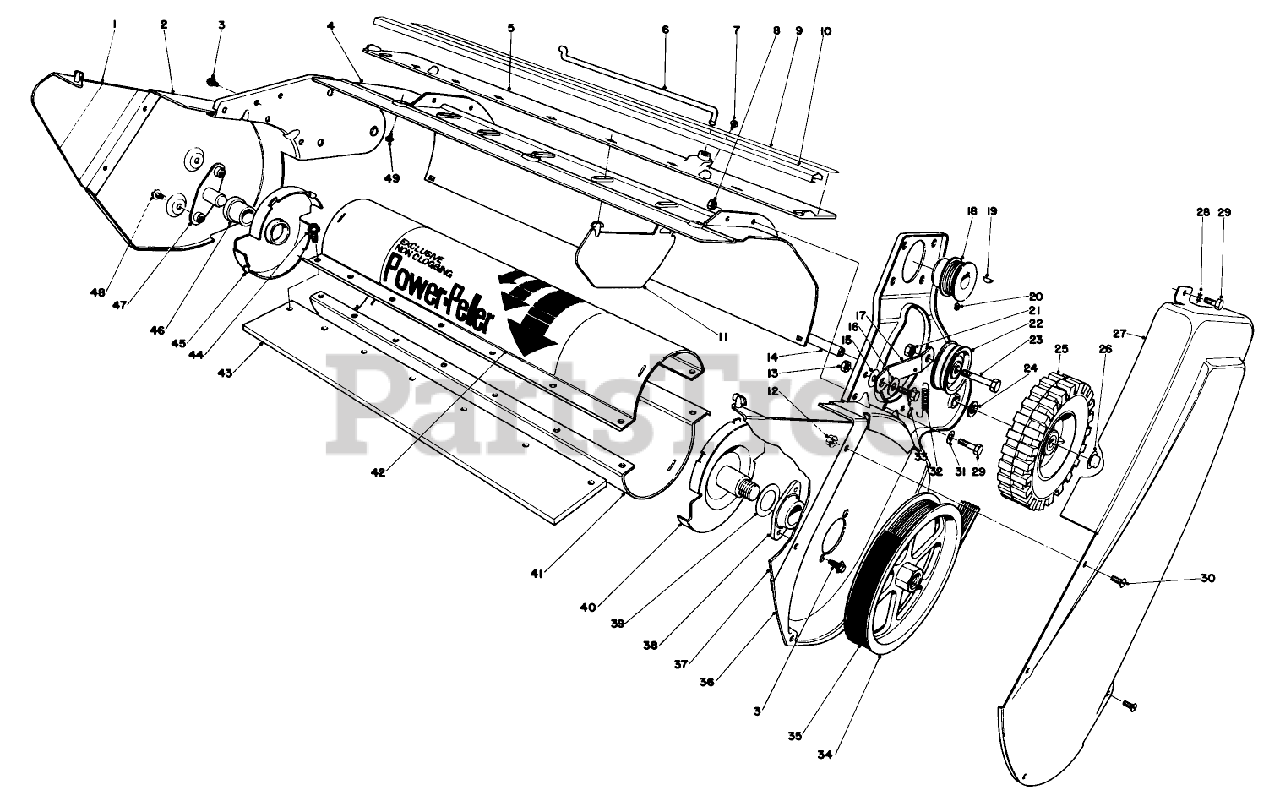

Lower Main Frame Parts Diagram

  • Title

1

Toro 23-2650

Side Plate Right

$

$

Currently unavailable

2

Toro 23-3680

See Supercession: 52-7080
(Superseded to 52-7080)

$9.49

$

Usually ships in 3-6 days

0

3

Toro 32140-42

DISCONTINUED

$

$

Not available

4

Toro 23-2580

DISCONTINUED

$

$

Not available

5

Toro 23-3180

DISCONTINUED

$

$

Not available

6

Toro 23-4530

DISCONTINUED

$

$

Not available

7

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

8

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

9

Toro 23-5370

DISCONTINUED

$

$

Not available

10

Toro 23-2640

See Supercession: 29-5500
(Superseded to 29-5500)

$

$

Not available

11

Toro 23-3670

See Supercession: 52-7060
(Superseded to 52-7060)

$11.99

$

In Stock, Qty 20+

0

12

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 11

0

13

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 5

0

14

Toro 23-7480

DISCONTINUED

$

$

Not available

15

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 8

0

16

Toro 5-0744

WASHER

$

$

Not available

17

Toro 23-7400

DISCONTINUED

$

$

Not available

18

Toro 23-7380

See Supercession: 25-6400
(Superseded to 25-6400)

$

$

Not available

19

Toro 3257-31

Key

$

$

Currently unavailable

20

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, Qty 9

0

21

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, only 2 left!

0

22

Toro 7-0056

DISCONTINUED

$

$

Not available

23

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 12

0

24

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

25

Toro 23-3250

WHEEL

$19.99

$

Usually ships in 3-6 days

0

26

Toro 3290-320

NUT-PUSH

$1.99

$

In Stock, Qty 20+

0

27

Toro 23-4350

DISCONTINUED

$

$

Not available

28

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

In Stock, only 3 left!

0

29

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 32122-30

SCREW-PTH

$1.49

$

In Stock, Qty 15

0

31

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

32

Toro 23-7750

IDLER SPRING

$41.99

$

Usually ships in 3-6 days

0

33

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

34

Toro 23-7360

DISCONTINUED XREF

$

$

Not available

35

Toro 23-7350

See Supercession: 25-6430
(Superseded to 25-6430)

$27.99

$

In Stock, only 2 left!

0

36

Toro 23-7980

Side Plate Left

$

$

Currently unavailable

37

Toro 23-3740

See Supercession: 52-7080
(Superseded to 52-7080)

$9.49

$

Usually ships in 3-6 days

0

38

Toro 23-3260

See Supercession: 37-6850
(Superseded to 37-6850)

$33.99

$

In Stock, only 1 left!

0

39

Toro 3-6498

WASHER-THRUST

$7.49

$

In Stock, Qty 20+

0

40

Toro 23-3650

See Supercession: 93-8026
(Superseded to 93-8026)

$281.99

$

Usually ships in 3-6 days

0

41

Toro 23-3190

DISCONTINUED

$

$

Not available

42

Toro 23-5400

Decal-Power Peller

$

$

Currently unavailable

43

Toro 23-3730

ROTOR BLADE

$30.99

$

In Stock, only 3 left!

0

44

Toro 32144-9

SCREW-TAP

$5.49

$

In Stock, only 2 left!

0

45

Toro 11-6090

See Supercession: 39-4060
(Superseded to 39-4060)

$

$

Not available

46

Toro 11-6160

DISCONTINUED

$

$

Not available

47

Toro 11-6040

See Supercession: 27-9710
(Superseded to 27-9710)

$

$

Not available

48

Toro 32140-55

1/4-20 X 3/8 SEMS SCR

$

$

Not available

49

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0
