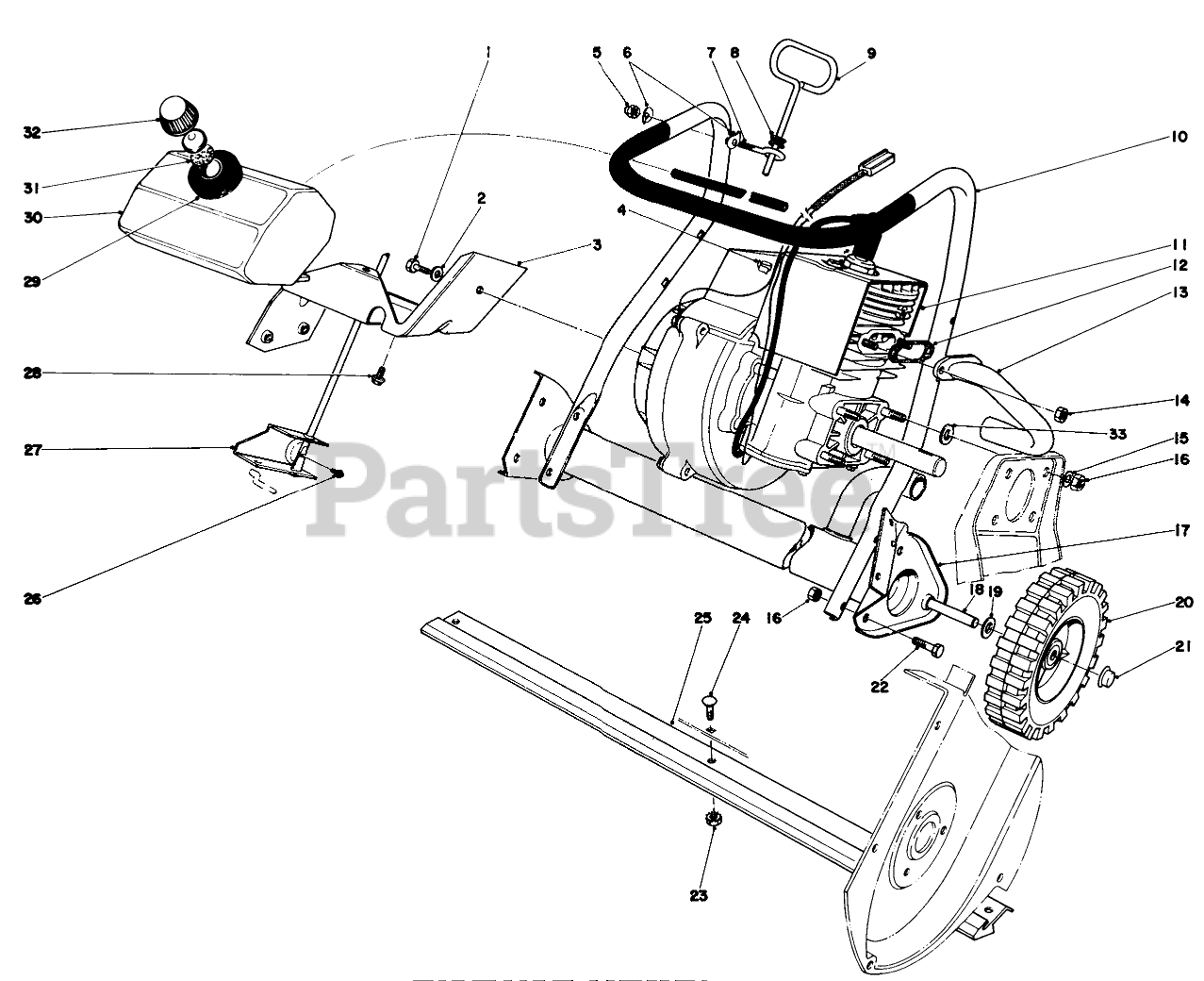

31506 - Toro SnowMaster Snow Thrower (SN: 007000001 - 007999999) (1977) ENGINE ASSEMBLY Parts Diagram

SnowMaster Snow Thrower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3235-18

1/4-20 X 5/8 CAPSCREW

$9.49

$

Usually ships in 3-6 days

0

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 26-6560

Rear Support Engine

$

$

Not available

4

Toro 218-214

CLIP

$

$

Currently unavailable

5

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

6

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 15

0

7

Toro 3-9278

Bolt-Eye
(Superseded to 52-7120)

$

$

Not available

8

Toro 237-73

GROMMET

$

$

Not available

9

Toro 23-4540

Rod Vane Adjustment

$

$

Not available

10

Toro 26-9750

Lower Handle
(Superseded to 49-1390)

$110.99

$

Usually ships in 3-6 days

0

11

Toro 221-499

Engine

$

$

Currently unavailable

12

Toro 23-3810

EXHAUST GASKET

$

$

Not available

13

Toro 27-0530

Exhaust Pipe
(Superseded to 52-7200)

$

$

Not available

14

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

17

Toro 26-6550

EXHAUST MUFFLER ASM

$362.99

$

Usually ships in 3-6 days

0

18

Toro 27-0060

AXLE

$61.99

$

Usually ships in 3-6 days

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 23-3250

WHEEL

$18.99

$

In Stock, Qty 8

0

21

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

24

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

25

Toro 23-3170

SCRAPER

$26.99

$

In Stock, Qty 11

0

26

Toro 12-5450

SCREW

$8.99

$

Usually ships in 3-6 days

0

27

Toro 25-5690

Bracket-Vane Adjustment
(Superseded to 39-0840)

$

$

Not available

28

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

29

Toro 25-1610

FOAM PAD

$

$

Not available

30

Toro 23-5230

Gas Tank

$

$

Not available

31

Toro 20-4620

GAS CAP GASKET

$8.99

$

In Stock, Qty 6

0

32

Toro 23-4380

Gas Cap (Incl. Ref. #31)
(Superseded to 42-0680)

$

$

Not available

33

Toro 27-9560

SPACER

$4.99

$

Usually ships in 3-6 days

0

Toro 6-6549

Loose Parts

Note: Not Illustrated.

$

$

Currently unavailable

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not Illustrated.

$17.99

$

Usually ships in 3-6 days

0
