31506 - Toro SnowMaster Snow Thrower (SN: 007000001 - 007999999) (1977) Engine Assembly Engine, Tecumseh Model No. Ah 520 Type 1574b Parts Diagram

SnowMaster Snow Thrower

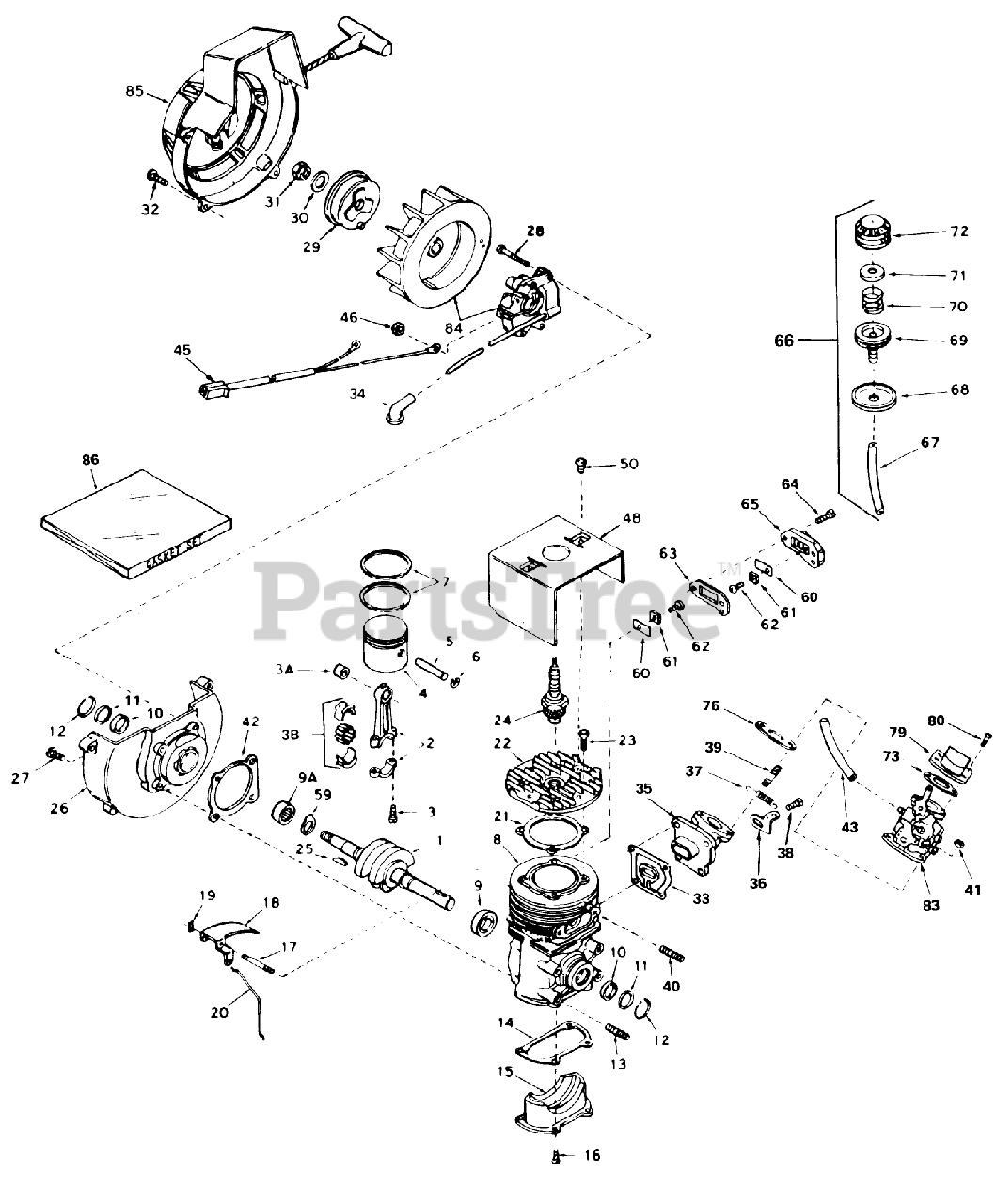

Engine Assembly Engine, Tecumseh Model No. Ah 520 Type 1574b Parts Diagram

  • Title

1

Toro 290468

Crankshaft

$

$

Currently unavailable

2

Toro 310244

Rod Assembly, Connecting (Incl. #3, 3A 3B)

$

$

Currently unavailable

3

Toro 650633

Bolt-Rod, Connecting

$

$

Currently unavailable

3A

Toro 530104A

Bearing-Cartridge

$

$

Currently unavailable

3B

Toro 530149

Bearing Liner Set Needle

$

$

Currently unavailable

4

Toro 310230

Piston

$

$

Currently unavailable

5

Toro 310178

Pin, Piston

$

$

Currently unavailable

6

Toro 310167

Ring-Retaning

$

$

Currently unavailable

7

Toro 310190

Ring Set

$

$

Currently unavailable

8

Toro 250195

Block Assy., Cylinder (Incl. Nos. 9, 10 thru 13 17)

$

$

Currently unavailable

9

Toro 530133

Bearing Ball

$

$

Currently unavailable

9A

Toro 530105

Bearing-Cartridge

$

$

Currently unavailable

10

Toro 510105

Seal, Crankshaft
(Superseded to 510195)

$

$

Not available

11

Toro 510106

Retainer, Crankshaft Seal

$

$

Currently unavailable

12

Toro 510109

Spring, Crankshaft Seal

$

$

Currently unavailable

13

Toro 650796

Stud

$

$

Currently unavailable

14

Toro 510270

Gasket, Cover

Note: Indicates items included in gasket set, part no. 510264C.

$

$

Currently unavailable

15

Toro 570370

Plate, Cover

$

$

Currently unavailable

16

Toro 650579

Screw (T-25, 10-24 x 1/2)

$

$

Currently unavailable

17

Toro 490276

Shaft, Air Vane

$

$

Currently unavailable

18

Toro 490277

Vane Assy, Air

$

$

Currently unavailable

19

Toro 490278

Clip,Air Vane

$

$

Currently unavailable

20

Toro 490285

Link, Governor

$

$

Currently unavailable

21

Toro 510262

Gasket, Cylinder Head

Note: Indicates items included in gasket set, part no. 510264C.

$

$

Currently unavailable

22

Toro 250182

DISCONTINUED

$

$

Not available

23

Toro 650477

Screw (T-30, 1/4-20 x 3/4)

$

$

Currently unavailable

24

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

25

Toro 650455

Key, Woodruff

$

$

Currently unavailable

26

Toro 350339

Base Assembly, Shroud (Incl. #9A-12)

$

$

Currently unavailable

27

Toro 650497

Screw

$

$

Currently unavailable

28

Toro 650582

Screw

$

$

Currently unavailable

29

Toro 590382

Cup, Starter

$

$

Currently unavailable

30

Toro 29544

Washer, Flat

$

$

Currently unavailable

31

Toro 650577

Nut, Flywheel

$

$

Currently unavailable

32

Toro 650477

Screw (T-30, 1/4-20 x 3/4)

$

$

Currently unavailable

33

Toro 510312

Gasket, Port

Note: Indicates items included in gasket set, part no. 510264C.

$

$

Currently unavailable

34

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

35

Toro 570627

Elbow Assy., Adapter

$

$

Currently unavailable

36

Toro 570626

Lever, Adjusting

$

$

Currently unavailable

37

Toro 490286

Spring, Adjusting Lever

$

$

Currently unavailable

38

Toro 650576

Screw

$

$

Currently unavailable

39

Toro 650564

Stud

$

$

Currently unavailable

40

Toro 650801

Stud

$

$

Currently unavailable

41

Toro 650457

Locknut

$

$

Currently unavailable

42

Toro 510239

Gasket, Shroud Base

Note: Indicates items included in gasket set, part no. 510264C.

$

$

Currently unavailable

43

Toro 30705

Line-Fuel

$

$

Currently unavailable

45

Toro 610930

Harness, Wire

$

$

Currently unavailable

46

Toro 610408

DECAL

$

$

Not available

48

Toro 350364

Shroud, Cylinder

$

$

Currently unavailable

50

Toro 650737

Screw (1/4-20 x 1/2)

$

$

Currently unavailable

59

Toro 530132

Washer, Thrust

$

$

Currently unavailable

60

Toro 470136

Reed, Compression Release

$

$

Currently unavailable

61

Toro 470137

Plate, Reed Hold Down

$

$

Currently unavailable

62

Toro 650654

Screw

$

$

Currently unavailable

63

Toro 510263

Gasket, Compression Release

Note: Indicates items included in gasket set, part no. 510264C.

$

$

Currently unavailable

64

Toro 650576

Screw

$

$

Currently unavailable

65

Toro 570437

Cover, Compression Release

$

$

Currently unavailable

66

Toro 570629

Primer Assy. (Incl. Nos. 67 thru 72)

$

$

Currently unavailable

67

Toro 32180A

Line, Primer

$

$

Currently unavailable

68

Toro 32312

Retainer, Primer Bulb

$

$

Currently unavailable

69

Toro 32184

Body, Primer

$

$

Currently unavailable

70

Toro 570443

Spring, Primer Bulb

$

$

Currently unavailable

71

Toro 570444

Washer, Primer Bulb

$

$

Currently unavailable

72

Toro 570442

Bulb, Primer

$

$

Currently unavailable

73

Toro 510206

Gasket

$

$

Currently unavailable

76

Toro 510217

Gasket, Carburetor

Note: Indicates items included in gasket set, part no. 510264C.

$

$

Currently unavailable

79

Toro 570434

Baffle-Carburetor

$

$

Currently unavailable

80

Toro 650229

Screw

$

$

Currently unavailable

83

Toro 631887

Carburetor (Incl. #76)

$

$

Currently unavailable

84

Toro 610659

BRACKET S

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

$

$

Not available

85

Toro 590464A

Shroud Starter Assy.

$

$

Currently unavailable

86

Toro 510264C

GasketSet

$

$

Currently unavailable

Toro 710395

RIVET

Note: Not Illustrated.

$

$

Not available
