315E733E401 - Yard-Man Snow Thrower (1995) Engine And V-Belts 7 HP With Electric Starter Parts Diagram

Snow Thrower

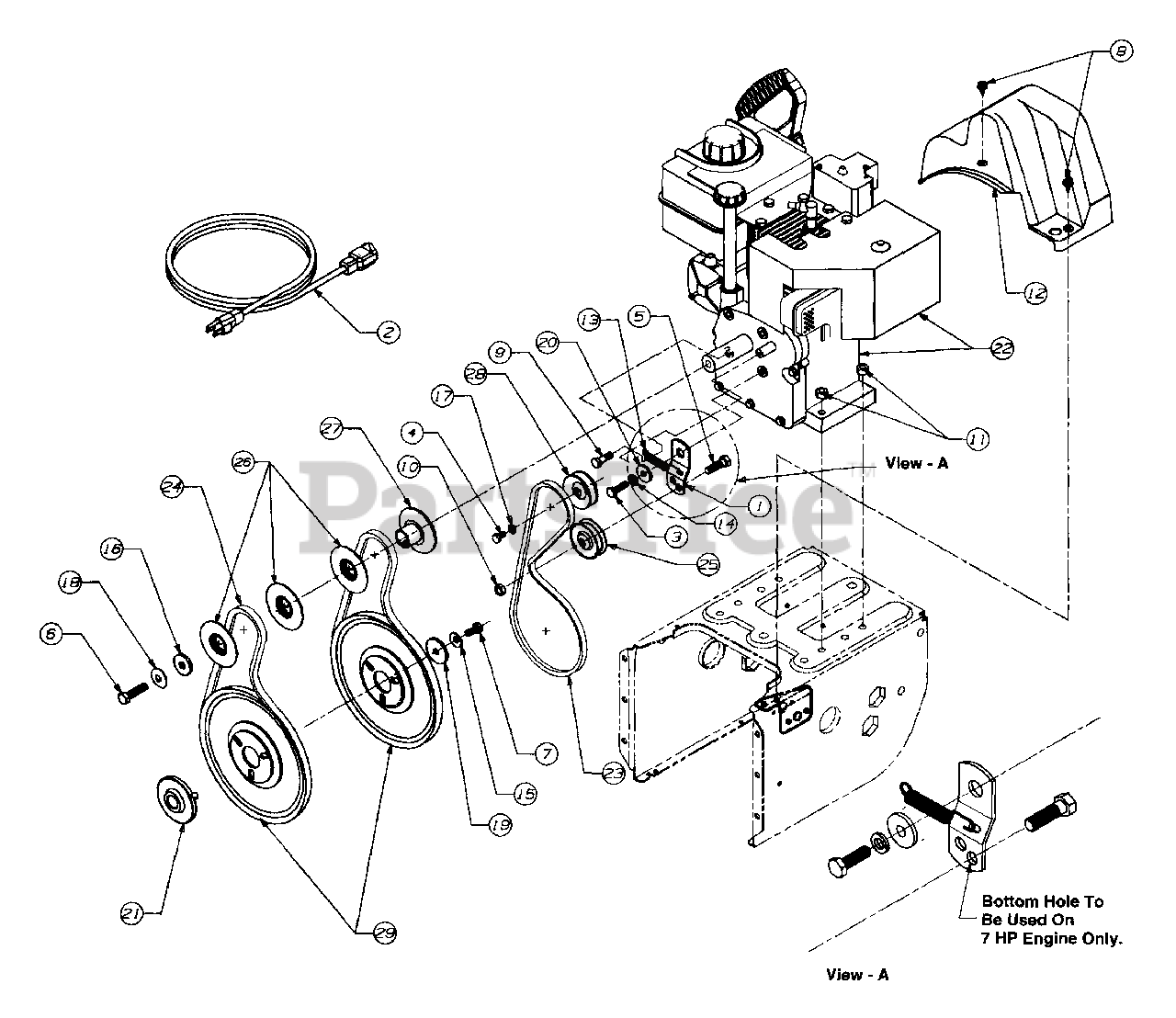

Engine And V-Belts 7 HP With Electric Starter Parts Diagram

  • Title

1

MTD 05896A

Bracket Drive Clutch Idler

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 629-0071

Cord, Extension
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0

3

MTD 710-0117

Screw, Hex
(Superseded to 710-0888)

$3.99

$

In Stock, Qty 11

0

4

MTD 710-0230

Hex Screw

$

$

Not available

5

MTD 710-0342

Screw, Hex
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0459

Hex Screw
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

7

MTD 710-0627

Screw, Hex

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0776A

Hex Screw
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0888

Screw, Hex

$3.99

$

In Stock, Qty 11

0

10

MTD 712-0181

Hex Jam Nut

$3.99

$

In Stock, Qty 5

0

11

MTD 712-0798

Nut, Hex

$3.99

$

Usually ships in 3-6 days

0

12

MTD 731-1324

Belt, Cover

$20.99

$

In Stock, only 1 left!

0

13

MTD 732-0710

Spring
(Superseded to 932-0710)

$6.99

$

In Stock, Qty 12

0

14

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0242

Washer, Bell

$3.99

$

In Stock, Qty 20+

0

16

MTD 736-0247

Flat Washer

$8.99

$

In Stock, Qty 20+

0

17

MTD 736-0329

Washer, Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

18

MTD 736-0331

Washer, Lock

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-0505

Washer, Flat

$5.99

$

In Stock, Qty 6

0

20

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

21

MTD 748-0360

Pulley Adapter
(Superseded to 948-0360)

$21.99

$

In Stock, only 3 left!

0

22

Eng., HSK70 Tec. 7.0 HP Horz. w/Electric Starter

$

$

Not available

23

MTD 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

24

MTD 754-0430

V-Belt Matched Set
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

25

MTD 756-0313

Idler, Flat

$24.99

$

In Stock, Qty 8

0

26

MTD 756-0620

Pulley, Half

$

$

Not available

27

MTD 756-0621

Pulley, Half

$

$

Not available

28

MTD 756-0959

Pulley
(Superseded to 956-0959)

$

$

Not available

29

MTD 756-0967

Pulley, Auger

$52.99

$

Usually ships in 3-6 days

0
