316.292600 (21A-154A799) - Craftsman Tiller (2005) (Sears) General Assembly Parts Diagram

Tiller

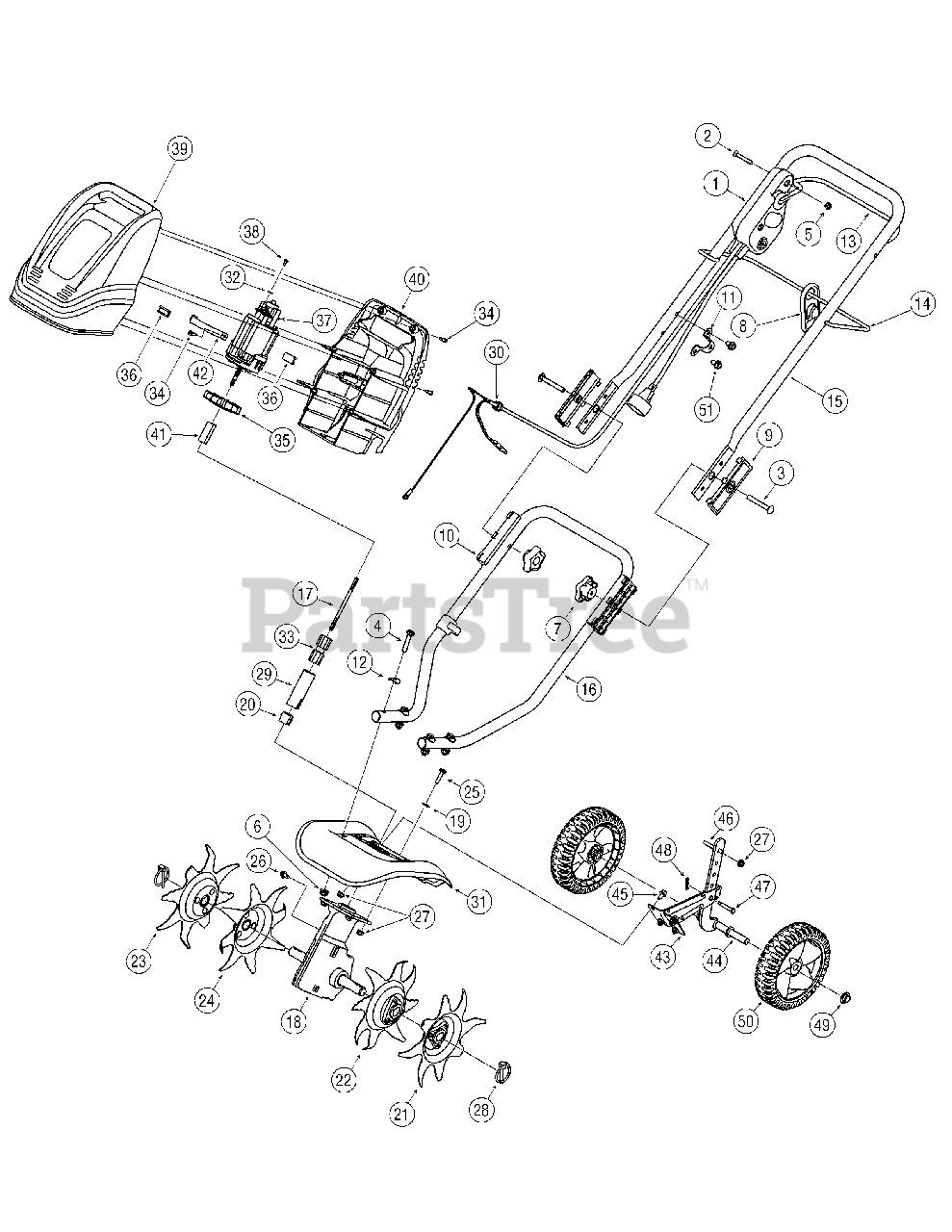

General Assembly Parts Diagram

  • Title

1

MTD 625-04027

Switch Assembly
(Superseded to 625-04027AS)

$222.99

$

Usually ships in 3-6 days

0

2

MTD 710-04213

Screw, T27, 1/4-20, 1.75"
(Superseded to 753-04430)

$3.99

$

Usually ships in 3-6 days

0

3

MTD 710-0572

Bolt, Carriage, 5/16-18, 2.50, Gr1

$3.99

$

In Stock, only 4 left!

0

4

MTD 710-0805

Hex Screw, 5/16-18, 1.50, Gr5
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

5

MTD 912-0324

Nut, Hex Lock, 1/4-20, Gr8, Nylon
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

6

MTD 712-04063

Nut, Flange Lock, 5/16-18, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

7

MTD 720-04052

Knob, Nut, 5/16-18
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

8

MTD 726-0368-0637

Cord Retainer
(Superseded to 726-0368)

$8.49

$

Usually ships in 3-6 days

0

9

MTD 731-05178

Insulator, Upper Handle

$3.99

$

Usually ships in 3-6 days

0

10

MTD 731-05186

Insulator, Lower Handle

$9.99

$

Usually ships in 3-6 days

0

11

MTD 786-04295

Cord Mount Bracket (use with 749-04244 & 710-0604A) Shown

$

$

Not available

11

MTD 731-1820

Guide Cable Cord (use with 749-1295A)

$8.49

$

Usually ships in 3-6 days

0

12

MTD 736-0451

Washer, Saddle, 320 x .93 x .060

$3.99

$

In Stock, only 2 left!

0

13

MTD 747-04375

Control Bail
(Superseded to 747-04375-0637)

Variations

MTD 747-04375-0637

BAIL-CONTROL - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

14

MTD 747-04376A

Guide Rod
(Superseded to 747-04376A-0637)

Variations

MTD 747-04376A-0637

ROD-GUIDE - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

15

MTD 749-04244

Handle, Upper (use with 786-04295 & 710-0604A) Shown

$

$

Not available

15

MTD 749-04210

Handle, Upper (use with 731-1820)

$73.99

$

Usually ships in 3-6 days

0

16

MTD 749-1295A

Handle, Lower
(Superseded to 749-1295A-0637)

Variations

MTD 749-1295A-0637

Lower Handle for Tiller, Black - POWDER BLACK (0637)

$55.99

$

In Stock, only 1 left!

0

$55.99

$

In Stock, only 1 left!

0

17

MTD 10055-20

Flex Shaft, 4.5"

$

$

Not available

18

MTD 753-04075

Gearbox

$182.99

$

Usually ships in 3-6 days

0

19

MTD 791-182678

Washer, Flat
(Superseded to 4150)

$2.99

$

Usually ships in 3-6 days

0

20

MTD 753-04078

Sleeve

$9.99

$

Usually ships in 3-6 days

0

21

MTD 753-04071

Tine Assembly, Outer

$

$

Not available

22

MTD 753-04072

Tine Assembly, Inner

$

$

Not available

23

MTD 753-04073

Tine Assembly, Outer

$

$

Not available

24

MTD 753-04074

Tine Assembly, Inner

$

$

Not available

25

MTD 710-0597

Hex Screw, 1/4-20, 1.00, Gr5

$3.99

$

In Stock, Qty 19

0

26

MTD 4543

Bolt, Hex Washer 1/4-20, .50
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-04064

Nut, Flange Lock, 1/4-20, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

28

MTD 753-04070

Lynch Pin, .1875

$9.49

$

In Stock, Qty 20+

0

29

MTD 750-04441

Tube, .922 x 1.0 x 3.0
(Superseded to 750-04441-0637)

Variations

MTD 750-04441-0637

TUBE-BOOM ASM - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

30

MTD 753-04428

Bushing, Cord

$16.99

$

Usually ships in 3-6 days

0

31

MTD 753-04067

Tine Shield

$64.99

$

Usually ships in 3-6 days

0

32

MTD 1625

Washer, Lock, #10

$2.99

$

Usually ships in 3-6 days

0

33

MTD 1A2679

Tube w/ Spacers

$7.49

$

Usually ships in 3-6 days

0

34

MTD 1948

Screw, .750
(Superseded to 791-181844)

$5.99

$

Usually ships in 3-6 days

0

35

MTD 50004

Fan
(Superseded to 791-180155)

$18.99

$

Usually ships in 3-6 days

0

36

MTD 50545

Motor Pad, 1"

$

$

Not available

37

MTD 924-04008

Motor Assembly, 120 V

$

$

Not available

38

MTD 791-145569

Screw, #8-32 x .312

$9.49

$

In Stock, Qty 11

0

39

MTD 731-05207

Motor Cover, Front

$64.99

$

Usually ships in 3-6 days

0

40

MTD 731-05208

Motor Cover, Rear

$64.99

$

Usually ships in 3-6 days

0

41

MTD 748-04085

Motor Hub

$10.99

$

Usually ships in 3-6 days

0

42

MTD 786-04268

Motor Strap

$3.49

$

Usually ships in 3-6 days

0

43

MTD 753-04058

Bracket Assembly, Tail Piece

$38.99

$

Usually ships in 3-6 days

0

44

MTD 753-04063

Support Bracket Assembly, Wheel

$54.99

$

In Stock, only 1 left!

0

45

MTD 710-04468

Hex Flange Screw, 1/4-20, .50, Gr5

$3.99

$

Usually ships in 3-6 days

0

46

MTD 911-0993

Belt Guard Pin 1/4 Dia. x 1.43

$3.99

$

In Stock, Qty 20+

0

47

MTD 711-1017

Clevis Pin, .250 x 1.53

$6.99

$

In Stock, only 2 left!

0

48

MTD 914-0104

Cotter Pin, .072 Dia. x 1.13
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

49

MTD 726-0299

Push Cap, 1/2"

$7.49

$

In Stock, Qty 20+

0

50

MTD 734-1988

Wheel, 7 x 1.8 Spoke Bar Gray

$18.99

$

In Stock, Qty 10

0

51

MTD 710-0604A

Screw, 5/16-18, 0.625" Shown

$3.99

$

In Stock, Qty 20+

0
