316.292601 (21B-154A799) - Craftsman Tiller (2007) (Sears) General Asssembly Parts Diagram

Tiller

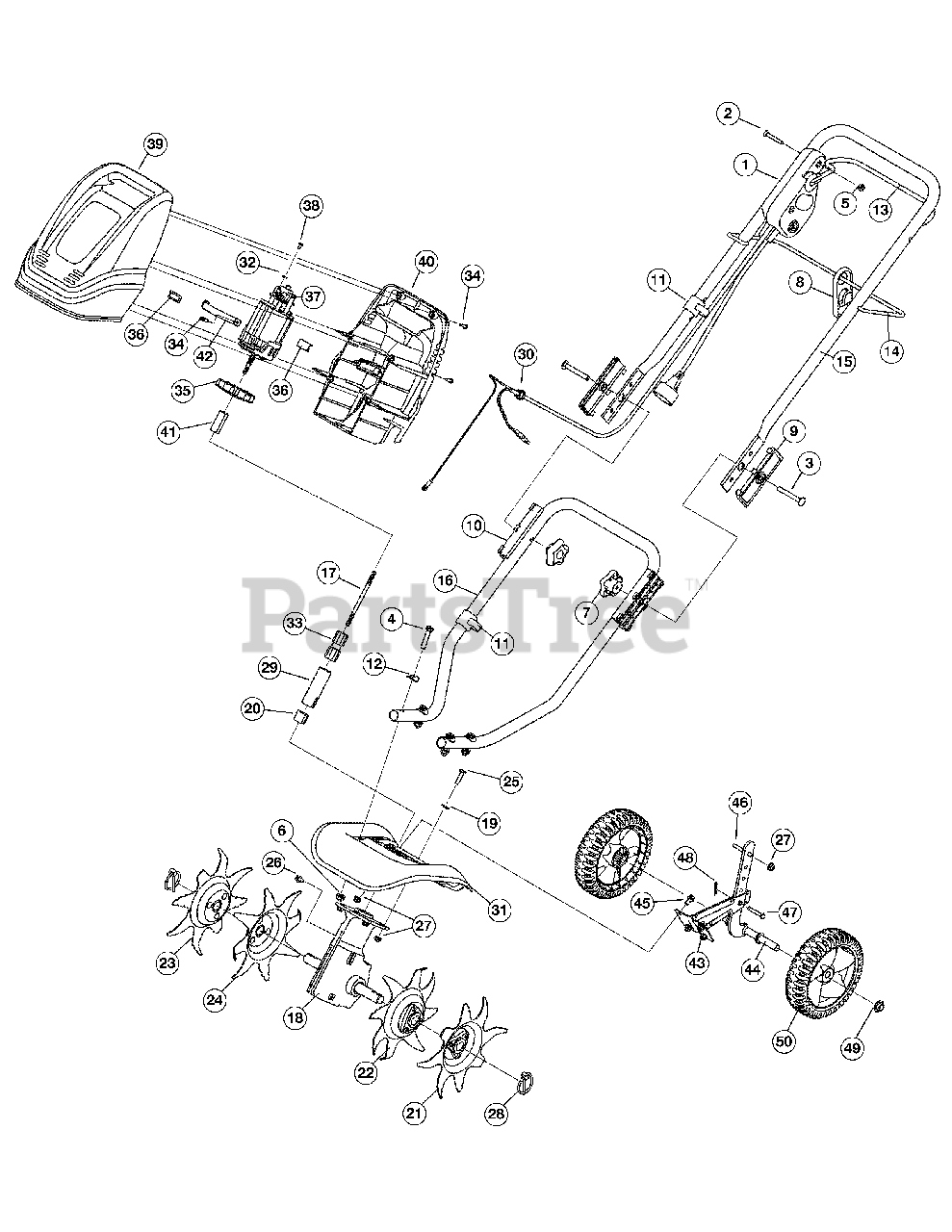

General Asssembly Parts Diagram

  • Title

1

MTD 625-04027A

Switch Assembly
(Superseded to 625-04027AS)

$222.99

$

Usually ships in 3-6 days

0

2

MTD 710-04213

Screw
(Superseded to 753-04430)

$3.99

$

Usually ships in 3-6 days

0

3

MTD 710-0572

Bolt

$3.99

$

In Stock, only 4 left!

0

4

MTD 710-0805

Screw
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

5

MTD 912-0324

Nut
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

6

MTD 712-04063

Nut

$3.99

$

In Stock, Qty 20+

0

7

MTD 720-04052

Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

8

MTD 726-0368

Cord Retainer

Variations

MTD 726-0368-0637

RESTRAINT-CORD - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

9

MTD 731-05178

Upper Handle Insulator

$3.99

$

Usually ships in 3-6 days

0

10

MTD 791-05186

Lower Handle Insulator

$

$

Currently unavailable

11

MTD 753-04429

Cable Guide
(Superseded to 731-1820)

$8.49

$

Usually ships in 3-6 days

0

12

MTD 736-0451

Saddle Washer

$3.99

$

In Stock, only 2 left!

0

13

MTD 747-04375

Control Bail
(Superseded to 747-04375-0637)

Variations

MTD 747-04375-0637

BAIL-CONTROL - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

14

MTD 747-04376A

Guide Rod
(Superseded to 747-04376A-0637)

Variations

MTD 747-04376A-0637

ROD-GUIDE - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

15

MTD 749-04210

Upper Handle

$73.99

$

Usually ships in 3-6 days

0

16

MTD 749-1295A

Lower Handle
(Superseded to 749-1295A-0637)

Variations

MTD 749-1295A-0637

Lower Handle for Tiller, Black - POWDER BLACK (0637)

$55.99

$

In Stock, only 1 left!

0

$55.99

$

In Stock, only 1 left!

0

17

MTD 10055-20

Flex Shaft

$

$

Not available

18

MTD 753-04075

Gearbox

$182.99

$

Usually ships in 3-6 days

0

19

MTD 791-182678

Washer
(Superseded to 4150)

$2.99

$

Usually ships in 3-6 days

0

20

MTD 753-04078

Sleeve

$9.99

$

Usually ships in 3-6 days

0

21

MTD 753-04071

Outer Tine Assembly

$

$

Not available

22

MTD 753-04072

Inner Tine Assembly

$

$

Not available

23

MTD 753-04073

Outer Tine Assembly

$

$

Not available

24

MTD 753-04074

Inner Tine Assembly

$

$

Not available

25

MTD 710-0597

Screw

$3.99

$

In Stock, Qty 19

0

26

MTD 4543

Bolt
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-04064

Nut

$3.99

$

In Stock, Qty 20+

0

28

MTD 753-04070

Lynch Pin

$9.49

$

In Stock, Qty 20+

0

29

MTD 753-04441

Boom Tube

$

$

Not available

30

MTD 753-04428

Cord Bushing

$16.99

$

Usually ships in 3-6 days

0

31

MTD 753-04067

Tine Shield

$64.99

$

Usually ships in 3-6 days

0

32

MTD 1625

Lock Washer

$2.99

$

Usually ships in 3-6 days

0

33

MTD 1A2679

Flex Tube Assembly

$7.49

$

Usually ships in 3-6 days

0

34

MTD 753-05274

Screw
(Superseded to 710-04508)

$3.99

$

In Stock, only 3 left!

0

35

MTD 50004

Fan
(Superseded to 791-180155)

$18.99

$

Usually ships in 3-6 days

0

36

MTD 50545

Motor Pad

$

$

Not available

37

MTD 924-04008

Motor Assembly

$

$

Not available

38

MTD 791-145569

Screw

$9.49

$

In Stock, Qty 11

0

39

MTD 731-05207

Front Motor Cover

$64.99

$

Usually ships in 3-6 days

0

40

MTD 731-05208

Rear Motor Cover

$64.99

$

Usually ships in 3-6 days

0

41

MTD 748-04085

Motor Hub

$10.99

$

Usually ships in 3-6 days

0

42

MTD 786-04268

Motor Strap

$3.49

$

Usually ships in 3-6 days

0

43

MTD 753-04058

Bracket Assembly

$38.99

$

Usually ships in 3-6 days

0

44

MTD 753-04063

Wheel Support Bracket Assembly

$54.99

$

In Stock, only 1 left!

0

45

MTD 710-04468

Screw

$3.99

$

Usually ships in 3-6 days

0

46

MTD 911-0993

Belt Guard Pin

$3.99

$

In Stock, Qty 20+

0

47

MTD 711-1017

Clevis Pin

$6.99

$

In Stock, only 2 left!

0

48

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

49

MTD 726-0299

Push Cap

$7.49

$

In Stock, Qty 20+

0

50

MTD 734-1988

Wheel

$18.99

$

In Stock, Qty 10

0
