316.292620 (21CS122R799) - Craftsman Tiller (2006) (Sears) Engine Assembly Parts Diagram

Tiller

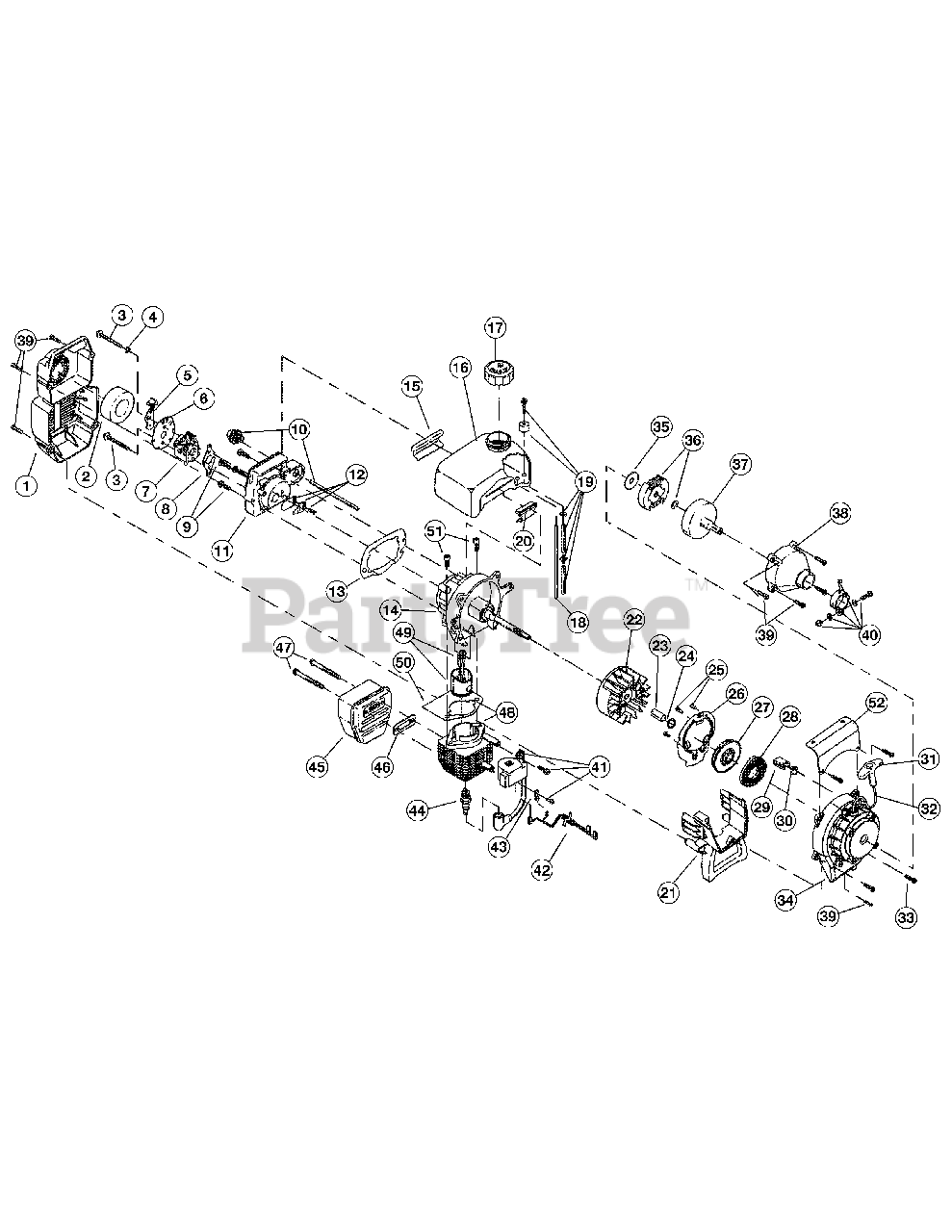

Engine Assembly Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Assembly (includes 2 & 39)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 12

0

5

MTD 753-05338

Choke Lever Assembly

$

$

Not available

6

MTD 753-05339

Choke Plate Assembly (includes 5)

$

$

Not available

7

MTD 753-04333

Carburetor Assembly (includes 8 & 19)

$

$

Not available

8

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

9

MTD 791-181860

Carb Mount Screw

$

$

Not available

10

MTD 791-683974B

Primer and Hose Assembly

$21.99

$

In Stock, Qty 20+

0

11

MTD 753-1196

Carb Mount Assembly (includes 9, 12 & 13)

$

$

Not available

12

MTD 791-684451

Reed Assembly

$

$

Not available

13

MTD 753-1208

Carburetor Mount Gasket

$15.99

$

In Stock, only 3 left!

0

14

MTD 753-05312

Crank Case Service Assembly (includes 9)
(Superseded to 753-05313)

$

$

Not available

15

MTD 791-612134

Rear Mounting Pad

$

$

Not available

16

MTD 753-04306

Fuel Tank Assembly (includes 17-19)

$

$

Not available

17

MTD 791-182529

Fuel Cap Assembly

$19.99

$

In Stock, Qty 6

0

18

MTD 791-181086

Fuel Return Line

$6.99

$

In Stock, Qty 20+

0

19

MTD 791-682039

Fuel Line Assembly

$15.99

$

In Stock, Qty 20+

0

20

MTD 791-145308

Front Mounting Pad

$

$

Not available

21

MTD 753-04611

Shroud Extension and Stand (includes 39)

$

$

Not available

22

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

23

MTD 791-181525

Spacer

$20.99

$

Usually ships in 3-6 days

0

24

MTD 753-04288

Pulley Retainer

$9.99

$

In Stock, only 3 left!

0

25

MTD 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

26

MTD 753-04705

Pressure Plate (includes 25)

$

$

Not available

27

MTD 753-05067

Recoil Pulley Assembly (includes 24 & 32)

$

$

Not available

28

MTD 753-04286

Recoil Spring

$24.99

$

In Stock, Qty 6

0

29

MTD 753-04996

Eyelet Retainer
(Superseded to 731-04417)

$6.49

$

Usually ships in 3-6 days

0

30

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

31

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

32

MTD 791-613103

Rope

$9.99

$

In Stock, only 4 left!

0

33

MTD 791-181912

Housing Screw

$6.49

$

Usually ships in 3-6 days

0

34

MTD 753-05327

Starter Housing Assembly (Incl. Items 24-33, 39 & 52)

$

$

Not available

35

MTD 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

36

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$23.99

$

In Stock, Qty 20+

0

37

MTD 791-153592

Clutch Drum Assembly

$48.99

$

In Stock, Qty 15

0

38

MTD 791-180098

Clutch Cover Assembly (includes 39)

$32.99

$

In Stock, only 1 left!

0

39

MTD 791-181345

Clutch Cover Screw

$3.99

$

In Stock, Qty 18

0

40

MTD 791-153597

Upper Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

41

MTD 753-04337

Module Assembly (includes 43)

$

$

Not available

42

MTD 791-182880

Wire Lead

$14.99

$

Usually ships in 3-6 days

0

43

MTD 791-611063

Ground Tab

$

$

Not available

44

MTD 791-610311B

Spark Plug

$13.99

$

In Stock, Qty 8

0

45

MTD 753-04926

Muffler Assembly (includes item 46 & 47)

$101.99

$

Usually ships in 3-6 days

0

46

MTD 753-04619

Exhaust Gasket

$8.49

$

In Stock, only 3 left!

0

47

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$3.99

$

Usually ships in 3-6 days

0

48

MTD 753-04814

Cylinder Assembly (includes items 48 & 51)

$78.99

$

In Stock, only 1 left!

0

49

MTD 753-04367

Piston & Rod Assembly

$

$

Not available

50

MTD 753-04182

Cylinder Gasket

$15.99

$

Usually ships in 3-6 days

0

51

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

52

MTD 791-180317

Fuel Tank Guard

$

$

Not available

MTD 753-1209

Piston Ring Set

Note: not shown

$49.99

$

Usually ships in 3-6 days

0

MTD 753-04925

Spark Arrestor

Note: not shown

$

$

Not available

MTD 753-05313

Short Block Assembly (Items 9, 14, 44, & 48-51)

Note: not shown

$

$

Not available

MTD 791-181599

Clutch Springs (Qty. 2)

Note: not shown

$10.99

$

In Stock, only 1 left!

0
