316.292620 (21CS122R799) - Craftsman Tiller (2006) (Sears) General Assembly Parts Diagram

Tiller

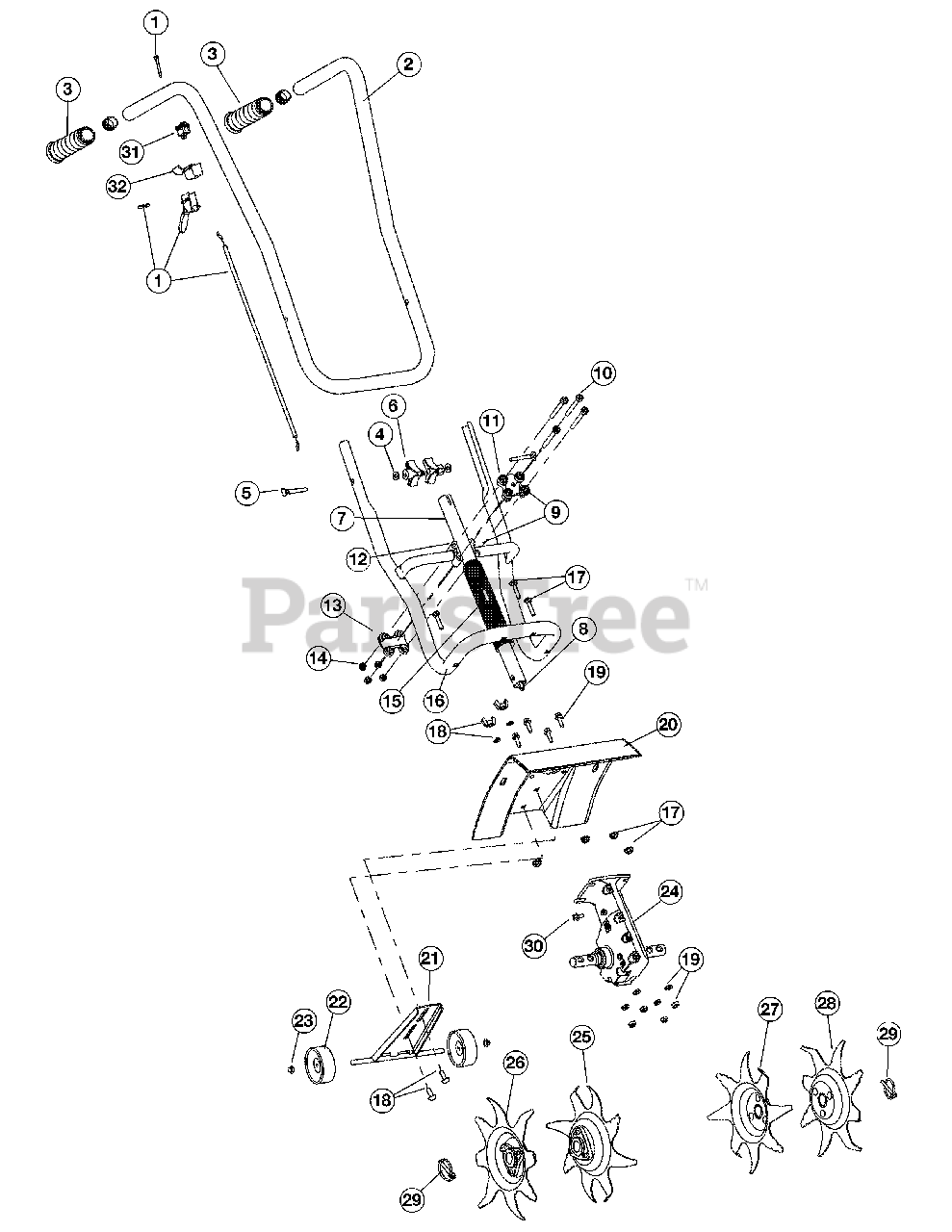

General Assembly Parts Diagram

  • Title

1

MTD 791-182881

Throttle Trigger and Cable Assembly

$

$

Not available

2

MTD 791-182882

Handle Bar Assembliy, Upper (includes 3)

$

$

Not available

3

MTD 791-182675

Grip

$

$

Not available

4

MTD 791-182678

Washer
(Superseded to 4150)

$3.49

$

Usually ships in 3-6 days

0

5

MTD 791-182899

Bolt

$8.49

$

Usually ships in 3-6 days

0

6

MTD 791-182898

Knob, 3 prong
(Superseded to 791-182677)

$15.99

$

In Stock, only 2 left!

0

7

MTD 753-04988

Drive Shaft Housing Assembly

$

$

Not available

8

MTD 753-04987

Flexible Drive Shaft

$

$

Not available

9

MTD 791-683295

Handle Bracket Assembly (includes 11-15)

$48.99

$

Usually ships in 3-6 days

0

10

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

11

MTD 791-181812

Upper Handle Clamp

$9.49

$

Usually ships in 3-6 days

0

12

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

13

MTD 791-181814

Lower Handle Clamp

$9.49

$

Usually ships in 3-6 days

0

14

MTD 791-181815

Nut

$4.99

$

Usually ships in 3-6 days

0

15

MTD 791-181575

Grip

$19.99

$

Usually ships in 3-6 days

0

16

MTD 791-182900

Lower Handle Bar

$

$

Not available

17

MTD 791-182681

Hardware, Handle Bar Mounting (lower)

$

$

Not available

18

MTD 791-147467

Wheel Bracket Mounting Hardware

$

$

Not available

19

MTD 753-04266

Guard Mounting Hardware

$

$

Not available

20

MTD 753-04708

Guard

$

$

Not available

21

MTD 753-05024

Wheel Bracket Assembly

$

$

Not available

22

MTD 753-04437

Wheel (includes 23)

$23.99

$

Usually ships in 3-6 days

0

23

MTD 753-04799

Wheel Cap
(Superseded to 726-0299)

$8.49

$

In Stock, Qty 20+

0

24

MTD 753-04075

Gearbox Assembly

$208.99

$

Usually ships in 3-6 days

0

25

MTD 753-04074

Inner Tine (right side)

$

$

Not available

26

MTD 753-04073

Outer Tine (right side)

$

$

Not available

27

MTD 753-04072

Inner Tine (left side)

$

$

Not available

28

MTD 753-04071

Outer Tine (left side)

$

$

Not available

29

MTD 753-04070

Click Pin

$10.99

$

In Stock, Qty 20+

0

30

MTD 791-180288

Sleeve Retainer Bolt
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

31

MTD 791-182405

Switch

$11.99

$

In Stock, Qty 5

0

32

MTD 791-182672

Bracket

$

$

Not available
