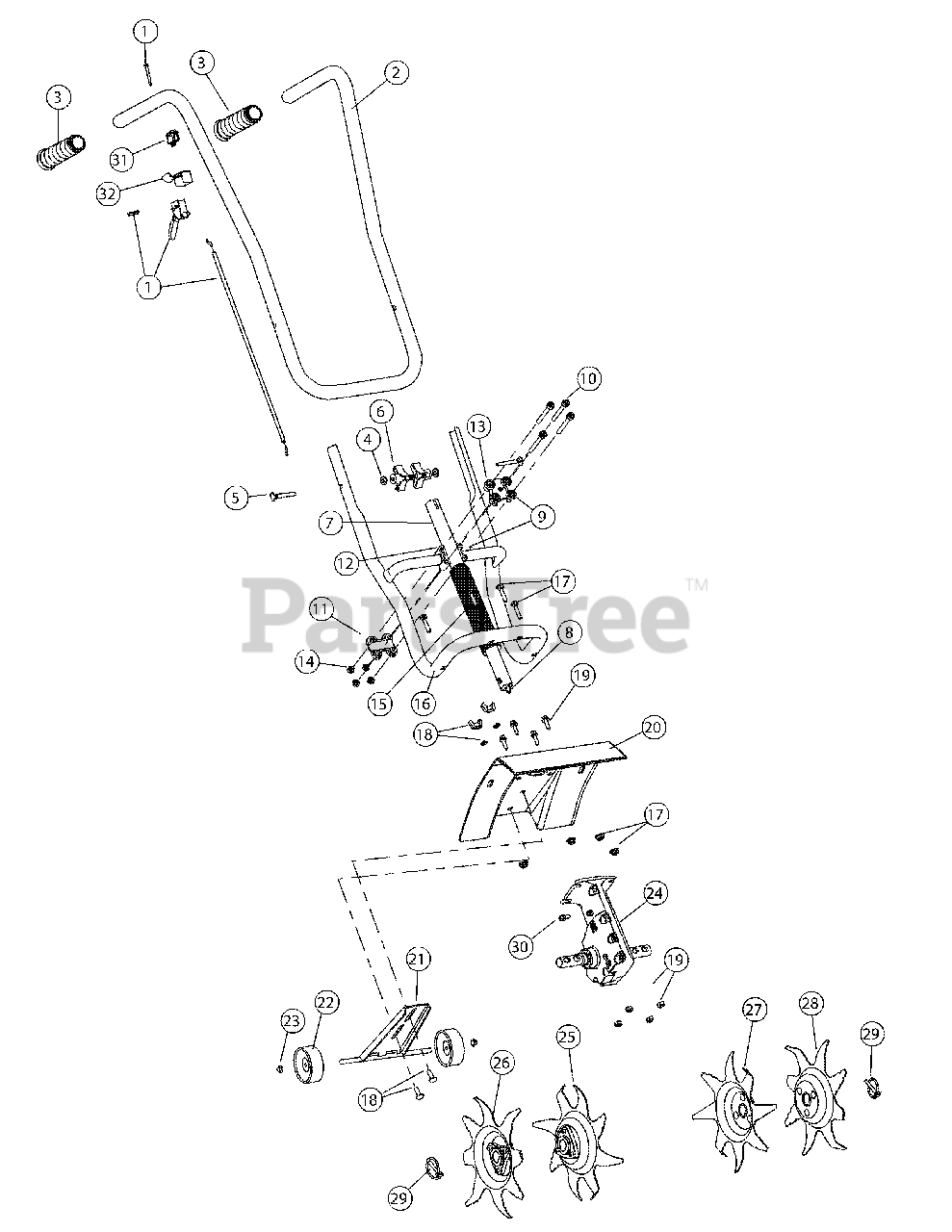

316.292640 (21ES122R799) - Craftsman Tiller (2009) (Sears) General Assembly Parts Diagram

Tiller

General Assembly Parts Diagram

  • Title

1

MTD 791-182881

Throttle Trigger and Cable Assembly

$

$

Not available

2

MTD 791-182882

Handle Bar As sem bliy, Upper

Note: (Incl. Ref No. 3)

$

$

Not available

3

MTD 791-182675

Grip

$

$

Not available

4

MTD 791-182678

Washer
(Superseded to 4150)

$2.99

$

Usually ships in 3-6 days

0

5

MTD 791-182899

Bolt

$7.49

$

Usually ships in 3-6 days

0

6

MTD 791-182898

Knob, 3 prong
(Superseded to 791-182677)

$13.99

$

Usually ships in 3-6 days

0

7

MTD 753-04988

Drive Shaft Housing Assembly

$

$

Not available

8

MTD 753-04987

Flexible Drive Shaft

$

$

Not available

9

MTD 791-683295

Handle Bracket Assembly

Note: (Incl. Ref No. 10-14)

$42.99

$

Usually ships in 3-6 days

0

10

MTD 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

11

MTD 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

12

MTD 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

13

MTD 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

14

MTD 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

15

MTD 791-181575

Grip

$19.99

$

Usually ships in 3-6 days

0

16

MTD 791-182900

Lower Handle Bar

$

$

Not available

17

MTD 791-182681

Hardware, Handle Bar Mounting (lower)

$

$

Not available

18

MTD 791-182684

Wheel Bracket Mounting Hard ware

$

$

Not available

19

MTD 753-04266

Guard Mounting Hardware

$

$

Not available

20

MTD 753-04708

Guard

$

$

Not available

21

MTD 753-05024

Wheel Bracket Assembly

$

$

Not available

22

MTD 753-04437

Wheel

Note: (Incl. Ref No. 23)

$20.99

$

Usually ships in 3-6 days

0

23

MTD 726-0299

Wheel Cap

$7.49

$

In Stock, Qty 20+

0

24

MTD 753-04075

Gearbox Assembly

$182.99

$

Usually ships in 3-6 days

0

25

MTD 753-04074

Inner Tine (right side)

$

$

Not available

26

MTD 753-04073

Outer Tine (right side)

$

$

Not available

27

MTD 753-04072

Inner Tine (left side)

$

$

Not available

28

MTD 753-04071

Outer Tine (left side)

$

$

Not available

29

MTD 753-04070

Click Pin

$9.49

$

In Stock, Qty 20+

0

30

MTD 910-0599

Sleeve Retainer Bolt
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

31

MTD 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

32

MTD 791-182672

Bracket

$

$

Not available
