316.341070 (41AZ63NQ799) - Craftsman Chainsaw, Electric (Sears) General Assembly Parts Diagram

Chainsaw, Electric

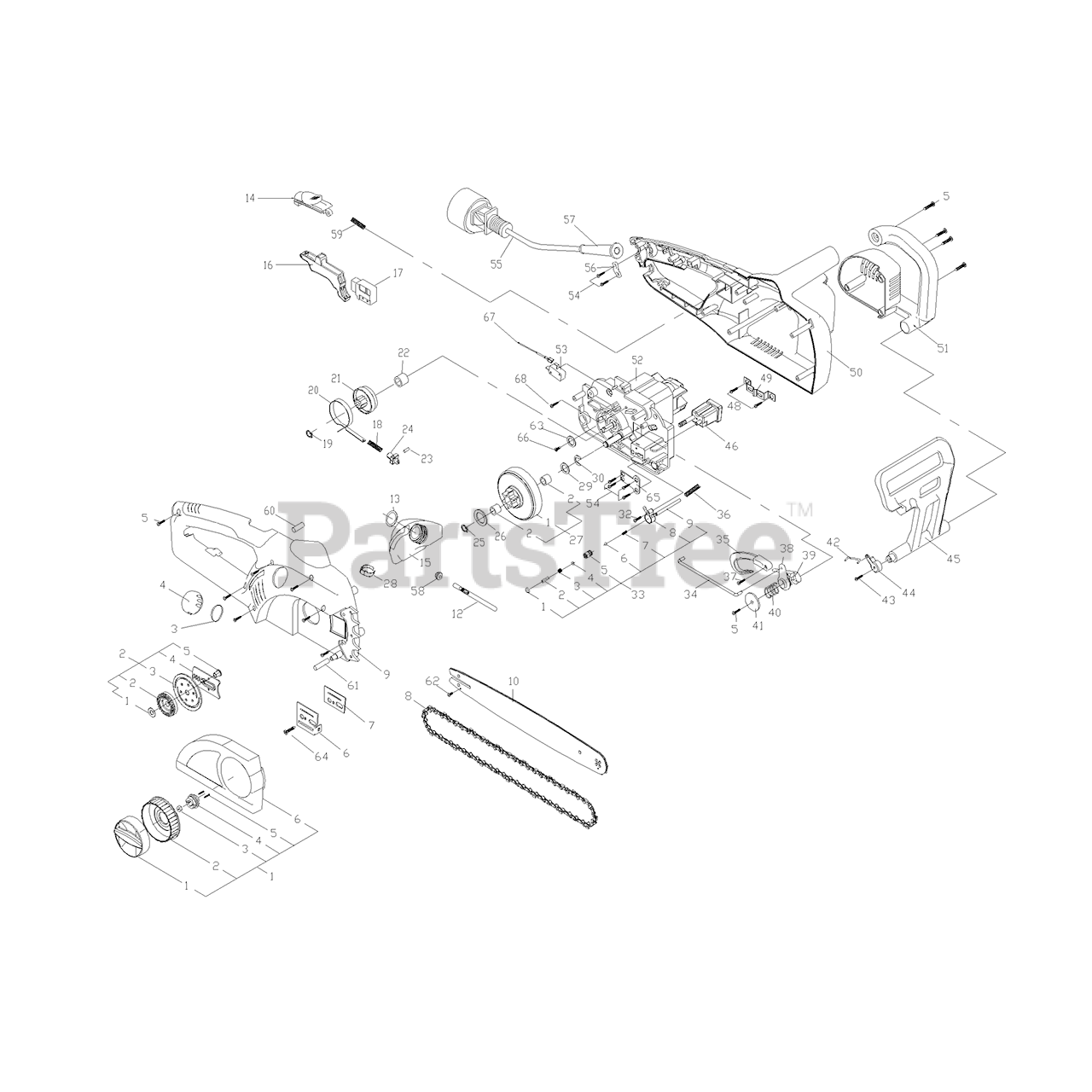

General Assembly Parts Diagram

  • Title

1

MTD MC-6228-211404

HOUSING (R)

Note:

$46.99

$

Usually ships in 3-6 days

0

2

MTD MC-6228-211504

CHAIN COVER ASS'Y

Note:

$33.99

$

In Stock, only 1 left!

0

3

MTD MC-6012-210501

WASHER

Note:

$

$

Not available

4

MTD MC-6017-210103

OIL COVER

Note:

$

$

Not available

5

MTD MC-6SDABB04-18

SCREW

Note:

$

$

Not available

6

MTD MC-6043-211302

ADJUSTMENT PLATE

Note:

$

$

Not available

7

MTD MC-6050-211301

OIL WASHER

Note:

$

$

Not available

8

MTD MC-6220-210201

CHAIN

Note:

$

$

Not available

9

MTD MC-6038-211507

HOUSING (R)

Note:

$

$

Not available

10

MTD MC-9040-310194

BAR

Note:

$

$

Not available

12

MTD MC-6228-211506

OIL PIPE ASS'Y

Note:

$

$

Not available

13

MTD MC-6076-210503

WASHER

Note:

$

$

Not available

14

MTD MC-6056-211503

SWITCH BUTTON

Note:

$

$

Not available

15

MTD MC-6066-211501

OIL TENK

Note:

$

$

Not available

16

MTD MC-6028-211503

TRIGGER

Note:

$

$

Not available

17

MTD MC-6022-211502

SWITCH

Note:

$

$

Not available

18

MTD MC-6024-211301

SPRING

Note:

$

$

Not available

19

MTD MC-6CY-08

RING

Note:

$

$

Not available

20

MTD MC-6079-211501

SPRING, BRAKE

Note:

$

$

Not available

21

MTD MC-6073-211501

GEAR

Note:

$

$

Not available

22

MTD MC-6059-210201

ADJUSTMENT COVER

Note:

$

$

Not available

23

MTD MC-6115-211502

PIN

Note:

$

$

Not available

24

MTD MC-6154-211502

CONNECTION

Note:

$

$

Not available

25

MTD MC-6CG-9.5

C RING

Note:

$

$

Not available

26

MTD MC-6014-210502

WASHER

Note:

$

$

Not available

27

MTD MC-6228-210104

GEAR BEARING ASS'Y

Note:

$

$

Not available

28

MTD MC-6077-211501

COVER

Note:

$6.99

$

Usually ships in 3-6 days

0

29

MTD MC-6057-210102

WASHER

Note:

$

$

Not available

30

MTD MC-6CC-10

C RING
(Superseded to MC-22237-00)

Note:

$

$

Not available

32

MTD MC-6SDABB03-18

SCREW

Note:

$

$

Not available

33

MTD MC-6228-210105

OIL PUMP ASS'Y

Note:

$

$

Not available

34

MTD MC-6188-211501

PULL BAR

Note:

$

$

Not available

35

MTD MC-6114-211501

PULL PLATE

Note:

$

$

Not available

36

MTD MC-6024-211507

SPRING

Note:

$

$

Not available

37

MTD MC-6QABB04-20

SCREW

Note:

$

$

Not available

38

MTD MC-6181-211501

CLUTH

Note:

$

$

Not available

39

MTD MC-6181-211502

CLUTH

Note:

$

$

Not available

40

MTD MC-6024-211503

SPRING

Note:

$

$

Not available

41

MTD MC-6014-211501

WASHER

Note:

$

$

Not available

42

MTD MC-6154-211301

CONNECTING BAR

Note:

$

$

Not available

43

MTD MC-6SDABB4.5-30

SCREW

Note:

$

$

Not available

44

MTD MC-6154-211504

CONNECTOR

Note:

$

$

Not available

45

MTD MC-6017-211503

FRONT-HAND GUARD

Note:

$

$

Not available

46

MTD MC-6228-211303

FIXED ACC'Y

Note:

$

$

Not available

48

MTD MC-6SDABB04-16

SCREW

Note:

$

$

Not available

49

MTD MC-6079-211503

SPRING

Note:

$

$

Not available

50

MTD MC-6038-211508

HOUSING (L)

Note:

$

$

Not available

51

MTD MC-6086-211501

REAL COVER

Note:

$

$

Not available

52

MTD MC-6228-211301

MOTOR GEAR BOX ASS'Y
(Superseded to MC-6228-211301P)

Note:

$

$

Not available

53

MTD MC-6022-211501

SWITCH

Note:

$

$

Not available

54

MTD MC-6SDABB04-10

SCREW

Note:

$

$

Not available

55

MTD MC-6011-211502

POWER CORD

Note:

$

$

Not available

56

MTD MC-6043-840001

STRAIN RELIEF

Note:

$

$

Not available

57

MTD MC-6059-855001

CORD GUARD

Note:

$

$

Not available

58

MTD MC-6012-211501

RUBBER STOP

Note:

$

$

Not available

59

MTD MC-6024-211506

SPRING

Note:

$

$

Not available

60

MTD MC-6PC05-14.7

PIN

Note:

$

$

Not available

61

MTD MC-6PC4.4-35

PIN

Note:

$

$

Not available

62

MTD MC-6SQAB-04-06

SCREW

Note:

$

$

Not available

63

MTD MC-6WFB-03-12

WASHER

Note:

$

$

Not available

64

MTD MC-6SDABB03-15

SCREW

Note:

$

$

Not available

65

MTD MC-6158-211502

PLATE

Note:

$

$

Not available

66

MTD MC-6SLABB03-06

SCREW

Note:

$

$

Not available

67

MTD MC-6010-211301

WIRE

Note:

$

$

Not available

68

MTD MC-6SDABB04-14

SCREW

Note:

$

$

Not available
