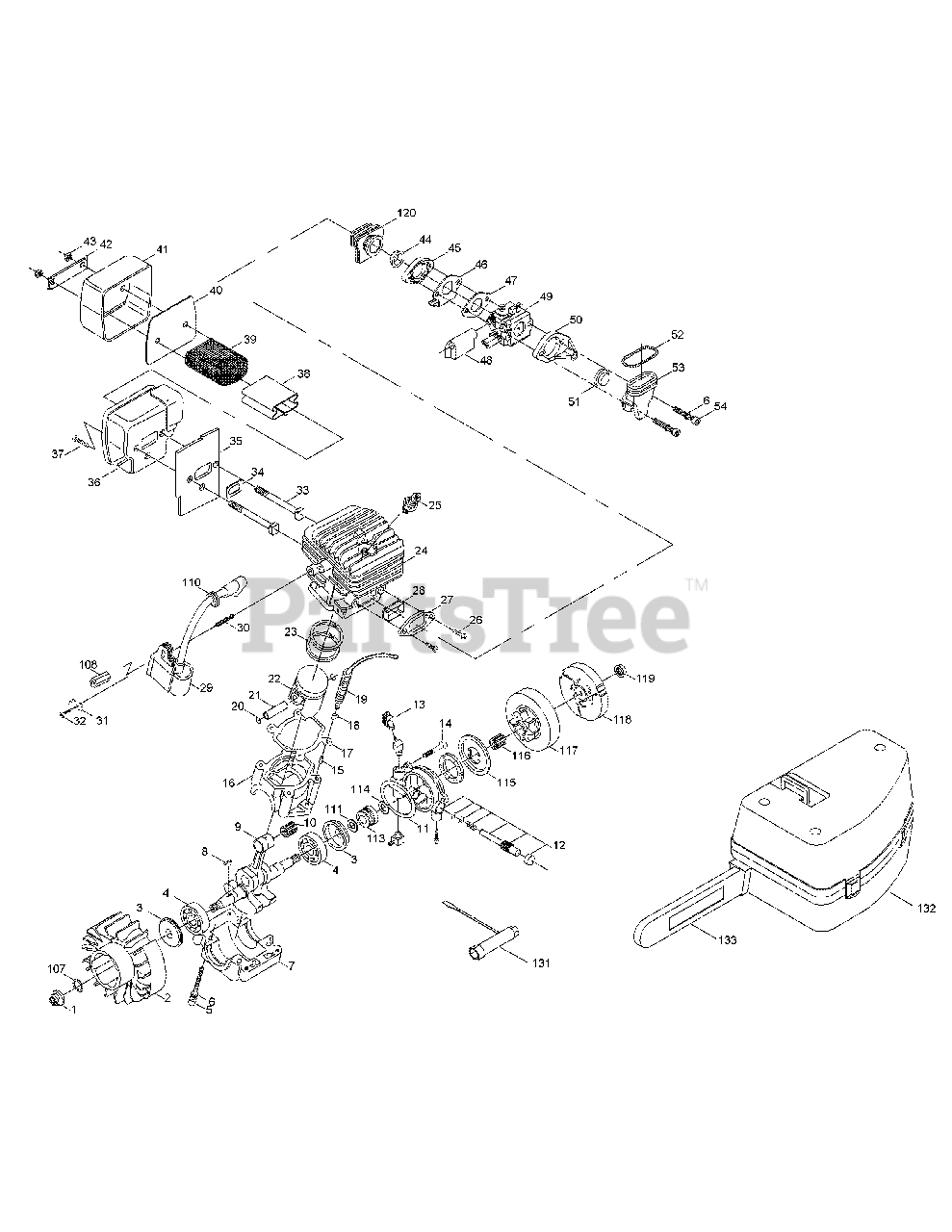

316.350840 (41AY85AR799) - Craftsman Chainsaw (Sears) Engine Parts Diagram

Chainsaw

Engine Parts Diagram

  • Title

1

MTD MC-9NAB-5/16-24

NUT

$

$

Not available

2

MTD MC-9228-31B206

FLYWHEEL

$

$

Not available

3

MTD MC-9157-310201

SEAL

$

$

Not available

4

MTD MC-9DB-620201

BEARING

$

$

Not available

5

MTD 710-04505

SCREW

$

$

Not available

6

MTD MC-9WFB-0.2

WASHER

$

$

Not available

7

MTD MC-9072-310201F

CRANKCASE LOWER

$

$

Not available

8

MTD MC-9221-310001

KEY

$

$

Not available

9

MTD MC-9228-310203A

C'SHAFT/C'ROD ASS'Y

$

$

Not available

10

MTD MC-9155-310201

BEARING

$

$

Not available

11

MTD MC-9076-310201

O RING

$

$

Not available

12

MTD MC-9228-310208

PUMP ASS'Y

$

$

Not available

13

MTD MC-9154-310201

CONNECTOR

$

$

Not available

14

MTD 710-04493

SCREW

$

$

Not available

15

MTD MC-9124-310201

FITTING, PULSE LINE

$

$

Not available

16

MTD MC-9072-310202F

CRANKCASE UPPER

$

$

Not available

17

MTD MC-9014-310212

GASKET

$

$

Not available

18

MTD MC-9036-310201

CLAMP, WIRE HOSE

$

$

Not available

19

MTD MC-9059-310201

CONDUIT, FLEX

$

$

Not available

20

MTD MC-9CA-0.46

RING

$

$

Not available

21

MTD MC-9PC-10-32.5

PIN

$

$

Not available

22

MTD MC-9290-310201

PISTON

$35.99

$

Usually ships in 3-6 days

0

23

MTD MC-9189-310201

RING, PISTON

$

$

Not available

24

MTD MC-9292-310201F

CYLINDER

$

$

Not available

25

MTD MC-9295-320001

SPARK PLUG

$

$

Not available

26

MTD 710-04491

SCREW

$

$

Not available

27

MTD MC-9014-310203

FLANGE

$

$

Not available

28

MTD MC-9131-310202

EYELET

$

$

Not available

29

MTD 725-04321

IGNITION ASS'Y

$

$

Not available

30

MTD MC-9191-310201

STUD

$

$

Not available

31

MTD MC-9051-310202

CONTACT, CROUNT

$

$

Not available

32

MTD 710-04491

SCREW

$

$

Not available

33

MTD 710-04505

SCREW

$

$

Not available

34

MTD MC-9014-310208

WASHER

$

$

Not available

35

MTD MC-9082-310201

BAFFLER

$

$

Not available

36

MTD MC-9228-310217

MUFFLER BODY ASS'Y

$

$

Not available

37

MTD 710-04549

SCREW

$

$

Not available

38

MTD MC-9211-310201

PLATE

$

$

Not available

39

MTD MC-9183-310201

SCREEN

$

$

Not available

40

MTD MC-9082-310205

BAFFLER

$

$

Not available

41

MTD MC-9017-310204

COVER, MUFFLER

$

$

Not available

42

MTD MC-9158-310201

LOCKPLATE

$

$

Not available

43

MTD MC-9NAC-10/24

NUT

$

$

Not available

44

MTD MC-9131-310203

EYELET

$

$

Not available

45

MTD MC-9014-310204

FLANGE

$

$

Not available

46

MTD MC-9102-310202

PLATE

$

$

Not available

47

MTD MC-9014-310202

GASKET

$

$

Not available

48

MTD MC-9124-310203

BOOT

$

$

Not available

49

MTD MC-9287-310201

CARB

$

$

Not available

50

MTD MC-9014-310201

FLANGE

$

$

Not available

51

MTD MC-9131-310204

EYELET

$

$

Not available

52

MTD MC-9024-310202

SPRING

$

$

Not available

53

MTD MC-9124-310204

BOOT

$

$

Not available

54

MTD 710-04503

SCREW

$

$

Not available

55

MTD MC-9228-31B208

STARTER ASS'Y

$

$

Not available

56

MTD 710-04497

SCREW

$

$

Not available

57

MTD MC-9WFZ-0.18

WASHER

$

$

Not available

58

MTD MC-9223-310201

METAL CLIP

$

$

Not available

59

MTD MC-9183-310202

SCREEN

$

$

Not available

60

MTD MC-9228-310205

FUEL/OIL TANK ASS'Y

$80.99

$

Usually ships in 3-6 days

0

61

MTD MC-9142-310002

PRIMER, REMOTE

$21.99

$

In Stock, Qty 20+

0

62

MTD MC-9129-310214

HOSE

$

$

Not available

63

MTD 710-04551

SCREW

$

$

Not available

64

MTD MC-9043-310201

PLATE

$

$

Not available

65

MTD MC-9124-310206

SPACE

$

$

Not available

66

MTD MC-9228-310206

CAP, FUEL

$

$

Not available

67

MTD MC-9182-310001

FILTER, FUEL

$

$

Not available

68

MTD MC-9129-310004

HOSE

$

$

Not available

69

MTD 710-04501

SCREW

$

$

Not available

70

MTD MC-9124-310202

BOOT, CARB

$

$

Not available

71

MTD MC-9070-310002

VALVE DUCKBILL

$

$

Not available

72

MTD MC-9129-310209

HOSE

$

$

Not available

73

MTD MC-9013-310201

PLUG

$

$

Not available

74

MTD MC-9252-310002

FILTER

$

$

Not available

75

MTD MC-9131-310206

WASHER

$

$

Not available

76

MTD MC-9043-310203

PLATE, BAR

$

$

Not available

77

MTD MC-9043-310202

PLATE, FLANGE

$

$

Not available

78

MTD 710-04492

SCREW

$

$

Not available

79

MTD 710-04496

SCREW

$

$

Not available

80

MTD MC-9228-31B202P

HANDLE ASS'Y

$

$

Not available

81

MTD MC-9228-310216

COVER ASS'Y

$

$

Not available

82

MTD 710-04504

SCREW

$

$

Not available

83

MTD 710-04548

SCREW

$

$

Not available

84

MTD MC-9228-310204

AIR CLEANER ASS'Y

$

$

Not available

85

MTD MC-9067-310202

COVER

$

$

Not available

86

MTD MC-9214-310101

SCREW

$

$

Not available

87

MTD MC-9228-310230

CHOKE ASS'Y

$

$

Not available

88

MTD MC-9114-310202

ROD, CHOKE

$

$

Not available

89

MTD MC-9013-310202

PLUG

$

$

Not available

90

MTD MC-9228-310213

ISOLATOR ASS'Y

$

$

Not available

91

MTD MC-9228-310214

CABLE ASS'Y

$

$

Not available

92

MTD MC-9228-310232P

COVER ASS'Y, HANDLE

$

$

Not available

93

MTD 710-04494

SCREW

$

$

Not available

94

MTD 710-04495

SCREW

$

$

Not available

95

MTD MC-9010-310203

WIRE

$

$

Not available

96

MTD MC-9228-310222

ISOLATOR ASS'Y

$

$

Not available

97

MTD MC-9WFB-4.9-17

WASHER

$

$

Not available

98

MTD MC-9024-310206

SPRING

$

$

Not available

99

MTD MC-9010-310201

CABLE

$

$

Not available

100

MTD MC-9124-310209

GROMMET

$

$

Not available

101

MTD MC-9028-310202

TRIGGER

$

$

Not available

102

MTD MC-9028-310201

RELEASE. TRIGGER

$

$

Not available

103

MTD MC-9072-310203

LATCH, HIGH IDLE

$

$

Not available

104

MTD MC-9024-310207

SPRING

$

$

Not available

105

MTD MC-9068-310203

FRAME, REAR

$

$

Not available

106

MTD 710-04491

SCREW

$

$

Not available

107

MTD MC-9WOC-08

WASHER

$

$

Not available

108

MTD MC-9124-310205

SPACER

$

$

Not available

109

MTD MC-9043-310205

PLATE

$

$

Not available

110

MTD MC-9012-330301

GROMMET

$

$

Not available

111

MTD MC-6014-M96A01

WASHER

$

$

Not available

112

MTD MC-6182-210101

FILTER

$

$

Not available

113

MTD MC-9073-310201

GEAR, WORM

$

$

Not available

114

MTD MC-9WFN-0.4

WASHER

$

$

Not available

115

MTD MC-9WDZ-0.722

WASHER

$

$

Not available

116

MTD MC-9155-310203

BEARING

$

$

Not available

117

MTD MC-9228-310211

DRUM SPRKT ASS'Y

$

$

Not available

118

MTD MC-9228-310210

CLUTCH ASS'Y

$

$

Not available

119

MTD MC-9NHC-09

NUT

$

$

Not available

120

MTD MC-9124-310202

BOOT, CARB

$

$

Not available

121

MTD 710-04497

SCREW

$

$

Not available

122

MTD 710-04549

SCREW

$

$

Not available

123

MTD MC-9220-31B202

CHAIN

$

$

Not available

124

MTD MC-9040-31A216

BAR (CRAFTSMAN LOGO)

$

$

Not available

125

MTD MC-9082-310204

PLATE

$

$

Not available

126

MTD MC-9228-310245P

CHAIN BRAKE ASS'Y

$

$

Not available

127

MTD MC-9NAZ-5/16-18

NUT

$

$

Not available

128

MTD MC-9072-310206

PLATE

$

$

Not available

129

MTD MC-9035-310201

NUT

$

$

Not available

130

MTD MC-9214-310201

SCREW

$

$

Not available

131

MTD MC-9042-310201

WRENCH

$

$

Not available

132

MTD MC-9120-MD0701

CARRY CASE

$

$

Not available

133

MTD MC-9017-310214

SCABBARD

$

$

Not available
