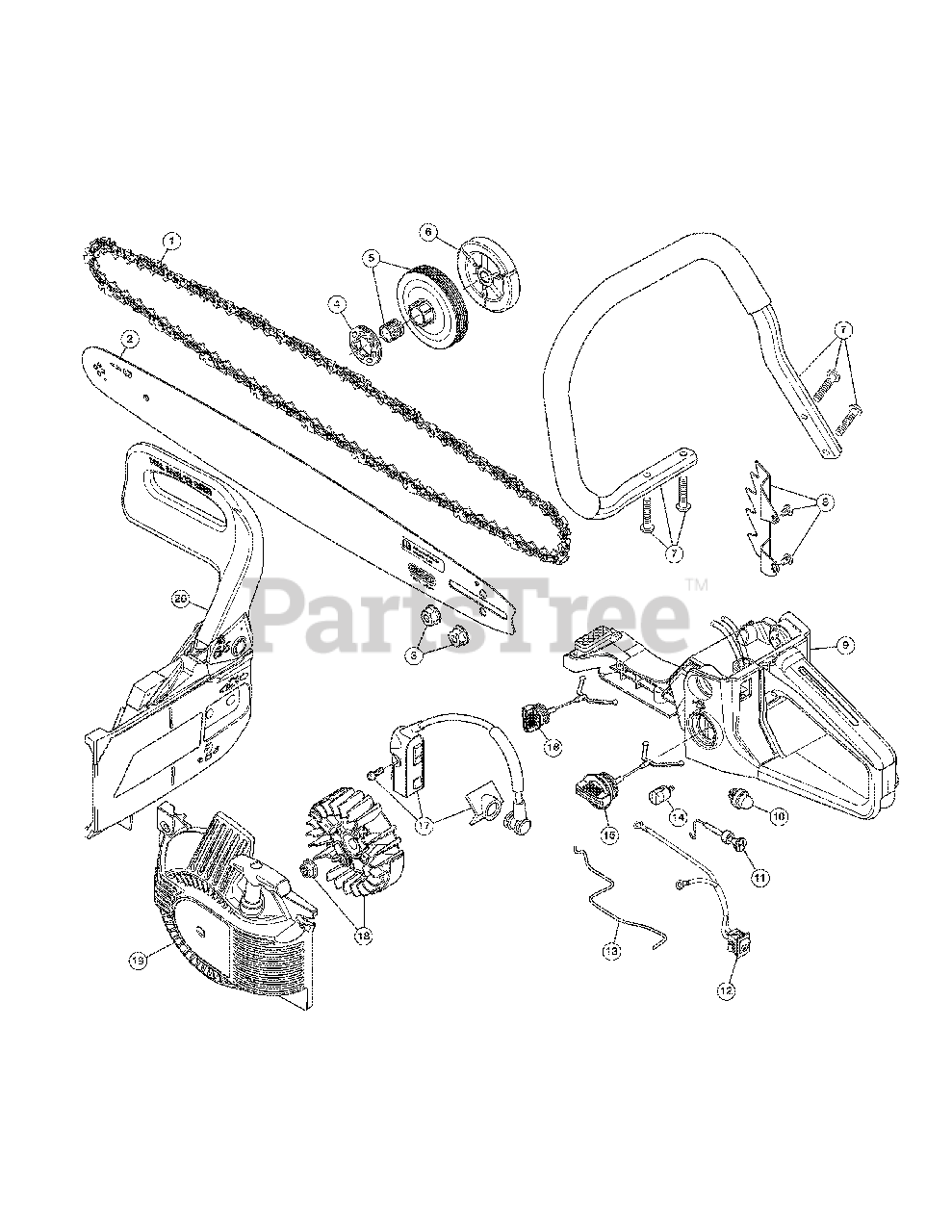

316.380900 (41AY429S799) - Craftsman Chainsaw (Sears) General Assembly Parts Diagram

Chainsaw

General Assembly Parts Diagram

  • Title

1

MTD 753-08314

Chain 18"
(Superseded to 713-05042)

$35.99

$

In Stock, only 1 left!

0

2

MTD 795-00278

Chain Guide Bar
(Superseded to 795-00862)

$40.99

$

In Stock, only 1 left!

0

3

MTD 953-08105

Guide Bar Nuts (2)

$3.49

$

In Stock, Qty 20+

0

4

MTD 953-08219

Sprocket

$7.99

$

In Stock, Qty 20+

0

5

MTD 953-08220

Clutch Drum Assembly

$21.99

$

In Stock, Qty 14

0

6

MTD 953-08145

Clutch Assembly

$16.99

$

In Stock, Qty 18

0

7

MTD 953-08130

Chainsaw Handle Assembly (with Screws (4))

$19.99

$

In Stock, Qty 5

0

8

MTD 953-08128

Spike Plate (with Screws (2))

$5.49

$

In Stock, Qty 12

0

9

MTD 953-08142

Fuel Tank Assembly

$42.99

$

In Stock, only 2 left!

0

10

MTD 953-08127

Primer Bulb

$6.49

$

In Stock, only 3 left!

0

11

MTD 953-08271

Choke Lever Assembly

$4.49

$

Usually ships in 3-6 days

0

12

MTD 953-08223

Stop Switch Assembly

$3.49

$

In Stock, Qty 20+

0

13

MTD 953-08132

Throttle Rod

$3.49

$

Usually ships in 3-6 days

0

14

MTD 953-08123

Fuel Filter

$12.99

$

In Stock, only 1 left!

0

15

MTD 953-08268

Fuel Cap Assembly

$5.99

$

Usually ships in 3-6 days

0

16

MTD 953-08222

Oil Cap Assembly

$5.99

$

In Stock, Qty 8

0

17

MTD 953-08138

Ignition Module Assembly (with Screws (2))

$27.99

$

In Stock, only 4 left!

0

18

MTD 953-08131

Flywheel Assembly

$21.99

$

In Stock, only 3 left!

0

19

MTD 753-08504

Starter Housing Assembly

$27.99

$

In Stock, only 3 left!

0

20

MTD 753-08505

Chainsaw Brake Assembly

$32.99

$

In Stock, only 2 left!
