316.380980 (41AY462S799) - Craftsman Chainsaw (Sears) General Assembly Parts Diagram

Chainsaw

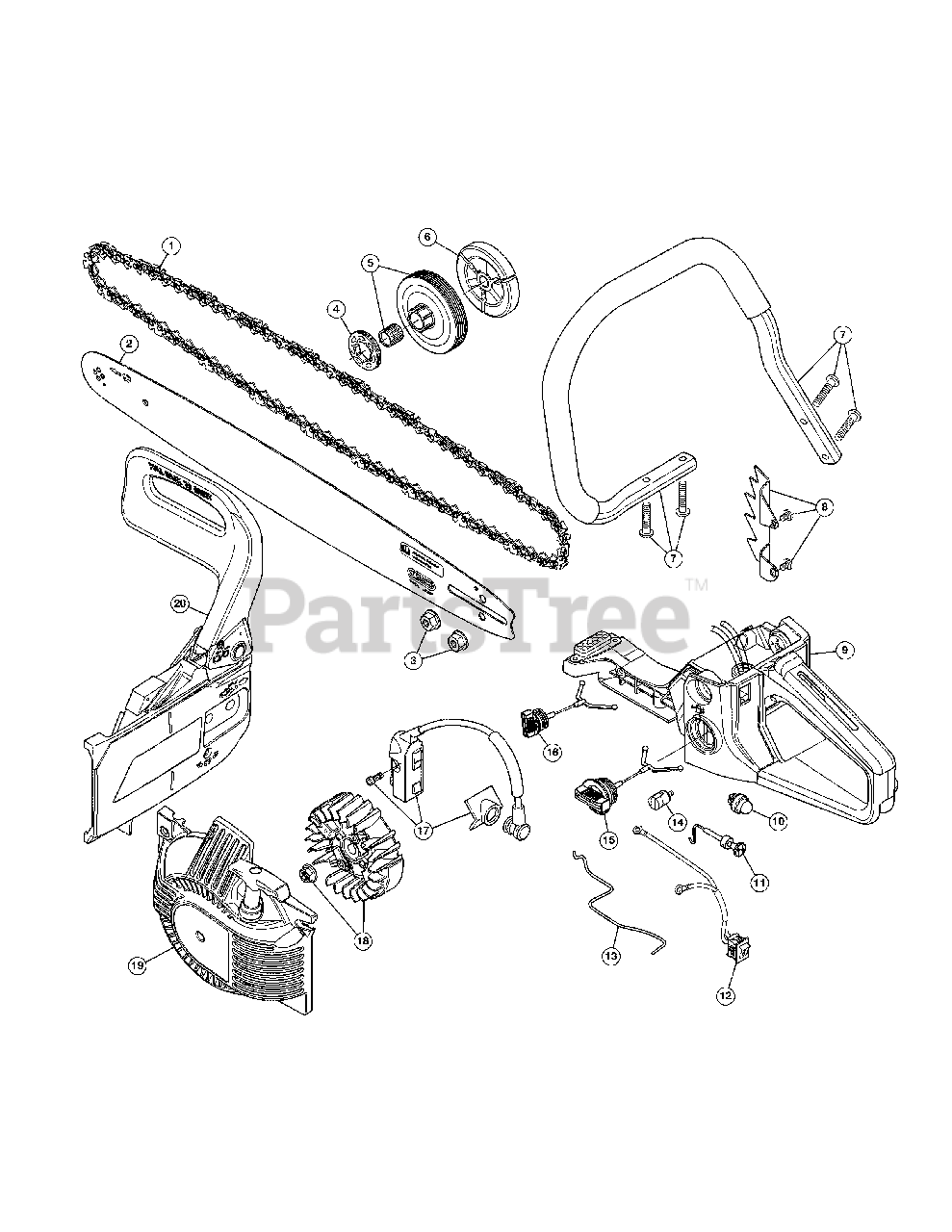

General Assembly Parts Diagram

  • Title

1

MTD 753-08102

Chain 20"
(Superseded to 913-05044)

$44.99

$

In Stock, Qty 17

0

2

MTD 795-00277

Chain Guide Bar

$43.99

$

In Stock, only 1 left!

0

3

MTD 953-08105

Guide Bar Nuts (2)

$2.99

$

In Stock, Qty 20+

0

4

MTD 953-08219

Sprocket

$6.99

$

In Stock, Qty 20+

0

5

MTD 953-08220

Clutch Drum Assembly

$18.99

$

In Stock, Qty 20+

0

6

MTD 953-08145

Clutch Assembly

$14.99

$

In Stock, Qty 20+

0

7

MTD 953-08130

Chainsaw Handle Assembly (with Screws (4)

$17.99

$

In Stock, only 1 left!

0

8

MTD 953-08128

Spike Plate (with Screws (2)

$4.99

$

In Stock, Qty 11

0

9

MTD 953-08142

Fuel Tank Assembly

$37.99

$

In Stock, only 3 left!

0

10

MTD 953-08127

Primer Bulb

$5.49

$

In Stock, Qty 8

0

11

MTD 953-08271

Choke Lever Assembly

$3.99

$

Usually ships in 3-6 days

0

12

MTD 953-08223

Stop Switch Assembly

$3.49

$

In Stock, Qty 20+

0

13

MTD 953-08132

Throttle Rod

$2.99

$

Usually ships in 3-6 days

0

14

MTD 953-08123

Fuel Filter

$11.99

$

In Stock, Qty 8

0

15

MTD 953-08268

Fuel Cap Assembly

$4.99

$

In Stock, Qty 10

0

16

MTD 953-08222

Oil Cap Assembly

$4.99

$

In Stock, Qty 15

0

17

MTD 953-08138

Ignition Module Assembly (with Screws (2)

$24.99

$

In Stock, Qty 11

0

18

MTD 953-08131

Flywheel Assembly

$18.99

$

In Stock, only 1 left!

0

19

MTD 953-08270

Starter Housing Assembly

$23.99

$

In Stock, Qty 5

0

20

MTD 953-08269

Chainsaw Brake Assembly

$25.99

$

In Stock, only 1 left!

0
