316.715860 (41ADZ50C799) - Craftsman Brushcutter (Sears) General Assembly Parts Diagram

Brushcutter

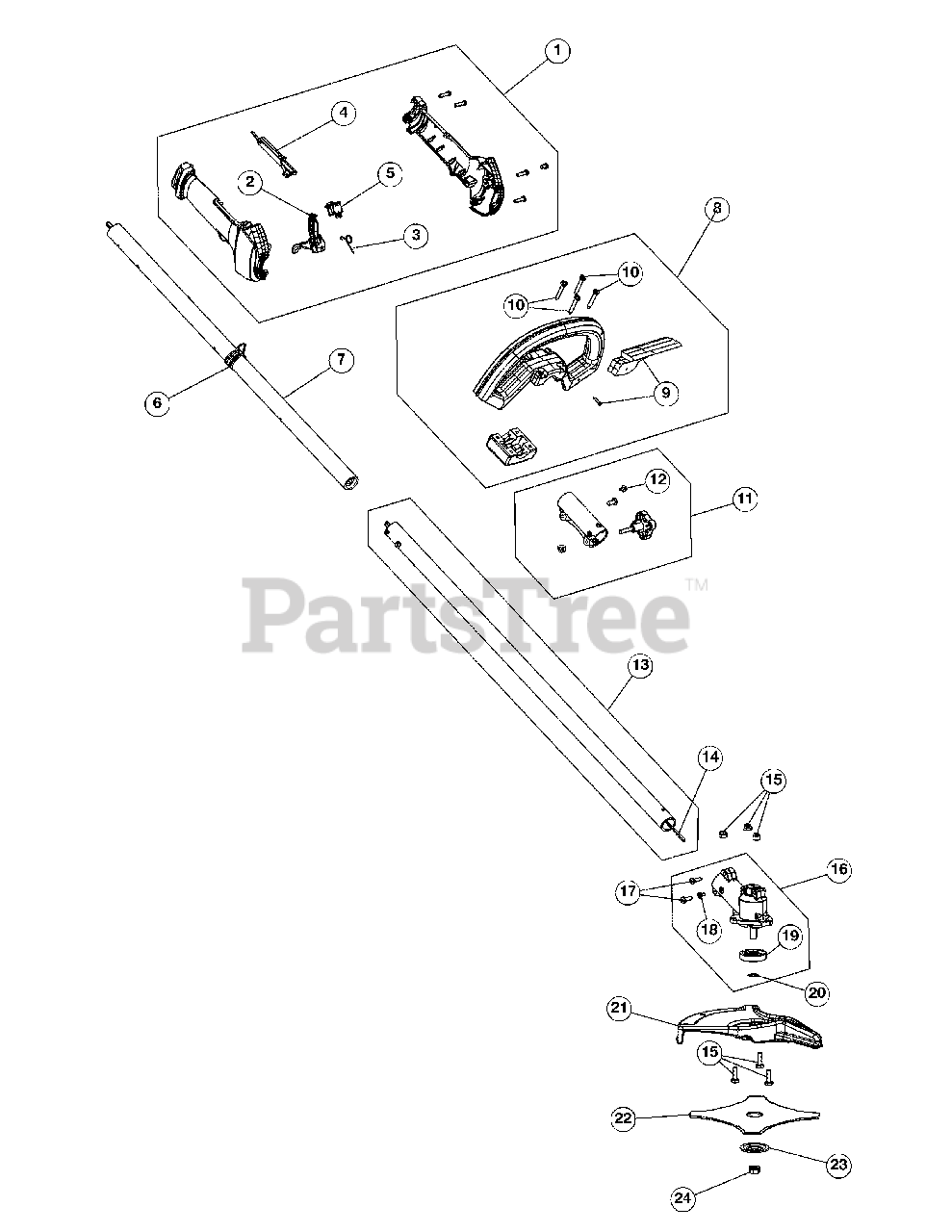

General Assembly Parts Diagram

  • Title

1

MTD 753-06860

Throttle Housing Assembly (Incl. 2-5)

$

$

Not available

2

MTD 753-06861

Throttle Trigger

$3.49

$

In Stock, Qty 5

0

3

MTD 753-05007

Spring

$5.49

$

In Stock, Qty 8

0

4

MTD 753-06862

Throttle Lock-out

$3.49

$

Usually ships in 3-6 days

0

5

MTD 791-182405

Switch

$11.99

$

In Stock, Qty 5

0

6

MTD 791-610327

Shoulder Strap Clip

$34.99

$

Usually ships in 3-6 days

0

7

MTD 753-04236

Upper Drive Shaft Housing Assembly

$99.99

$

In Stock, only 3 left!

0

8

MTD 753-05008

D-Handle Assembly (Incl. 9 & 10)

$33.99

$

In Stock, only 1 left!

0

9

MTD 753-05295

Barrier Bar Assembly

$36.99

$

Usually ships in 3-6 days

0

10

MTD 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

11

MTD 753-06859

Split Boom Coupler (Incl. 12)
(Superseded to 753-1190)

$24.99

$

In Stock, Qty 11

0

12

MTD 791-182057

Screw

$4.99

$

In Stock, Qty 20+

0

13

MTD 791-160226

Lower Drive Shaft Housing Assembly

Note: (Incl. 14)

$74.99

$

In Stock, only 4 left!

0

14

MTD 753-05267

Lower Flexible Drive Shaft

$45.99

$

In Stock, Qty 20+

0

15

MTD 791-182200

Shield Mount Screw Assembly

$7.49

$

In Stock, only 2 left!

0

16

MTD 791-182193

2-Piece Gear Box Assembly (Incl. 17-20)

$105.99

$

In Stock, only 2 left!

0

17

MTD 791-182195

Gear Box Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

18

MTD 791-182519

Anti-Rotation Screw

$5.49

$

In Stock, Qty 20+

0

19

MTD 791-182196

Blade Driver

$23.99

$

In Stock, only 2 left!

0

20

MTD 753-04348

Palnut

$7.49

$

In Stock, only 2 left!

0

21

MTD 791-147492

Blade Shield/Shield Mount

$134.99

$

Usually ships in 3-6 days

0

22

MTD 791-145873B

4-Tooth Blade

$45.99

$

In Stock, only 2 left!

0

23

MTD 791-147490

Retaining Washer

$12.99

$

In Stock, only 2 left!

0

24

MTD 712-04105

Nut

$11.99

$

In Stock, only 4 left!

0

MTD 791-180014B

Blade Retaining Kit (Incl. 23 & 24)

Note: Not shown

$12.99

$

Usually ships in 3-6 days

0

MTD 791-613226

Locking Rod Tool

Note: Not shown

$15.99

$

In Stock, Qty 6

0

MTD 791-682075B

Shoulder Harness

Note: Not shown

$41.99

$

Usually ships in 3-6 days

0

MTD 791-612605

Hanger
(Superseded to 731-08926)

Note: Not shown

$2.99

$

In Stock, Qty 20+

0
