316.731703 (41DDZ45C799) - Craftsman String Trimmer (Sears) Engine Assembly Parts Diagram

String Trimmer

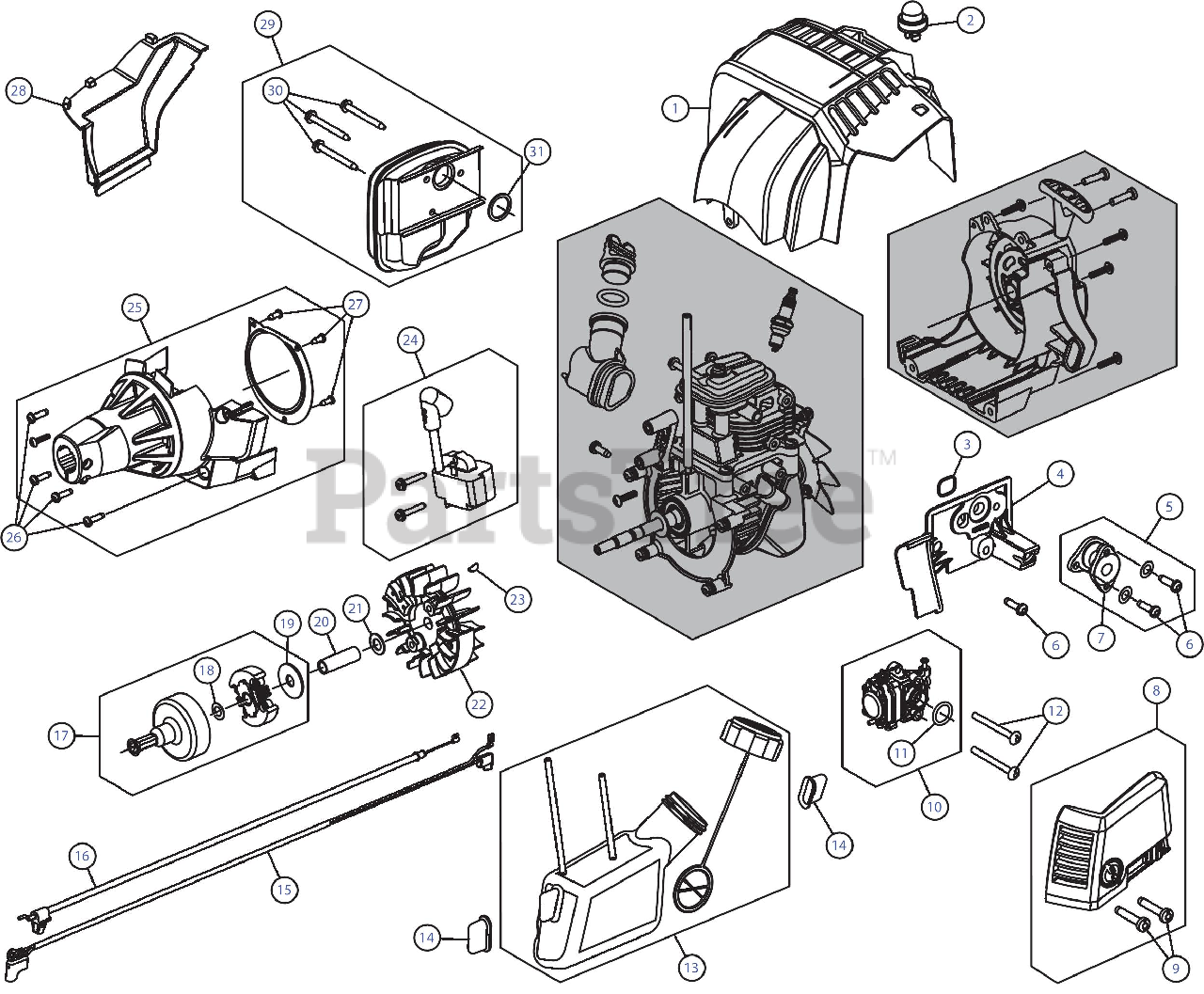

Engine Assembly Parts Diagram

  • Title

1

MTD 731-10169-5

Top Housing

$8.49

$

Usually ships in 3-6 days

0

2

MTD 731-05509

Air Purge Primer

$

$

Not available

3

MTD 721-04466

O-Ring

$2.49

$

In Stock, only 1 left!

0

4

MTD 731-10184A

Intake Port

$6.49

$

In Stock, only 1 left!

0

5

MTD 753-08053

Boot Assembly (includes 6 & 7)

$19.99

$

In Stock, Qty 5

0

6

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

7

MTD 753-08053

Boot

$19.99

$

In Stock, Qty 5

0

8

MTD 753-08349

Air Cleaner Assembly

$14.99

$

Usually ships in 3-6 days

0

8

MTD 751-12833

Air Filter (Not Shown)

$2.49

$

In Stock, Qty 10

0

9

MTD 753-06470

Screw

$2.49

$

In Stock, Qty 17

0

10

MTD 753-08203

Carburetor Assembly (includes 11)
(Superseded to 753-08057)

$33.99

$

In Stock, Qty 17

0

11

MTD 791-181751

O-Ring

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-06003

Screw

$2.49

$

In Stock, Qty 5

0

13

MTD 753-08325

Fuel Tank Assembly

$23.99

$

In Stock, only 2 left!

0

14

MTD 753-05259

Fuel Tank Pad

$6.49

$

In Stock, only 1 left!

0

15

MTD 794-00047A

Lead Wire

$5.49

$

In Stock, Qty 7

0

16

MTD 746-05053

Throttle Cable

$4.99

$

In Stock, Qty 6

0

17

MTD 753-05860

Clutch Assembly (includes 18 & 19)

$23.99

$

In Stock, Qty 20+

0

18

MTD 6674

Thrust Washer

$3.49

$

In Stock, only 1 left!

0

19

MTD 9162-1

Clutch Washer

$4.49

$

In Stock, Qty 8

0

20

MTD 2557

Spacer

$2.49

$

In Stock, only 2 left!

0

21

MTD 936-0314

Washer
(Superseded to 736-0314)

$

$

Not available

22

MTD 753-06246

Flywheel

$20.99

$

Usually ships in 3-6 days

0

23

MTD 914-04016

Key

$4.49

$

Usually ships in 3-6 days

0

24

MTD 753-08351

Module Assembly

$31.99

$

In Stock, only 2 left!

0

25

MTD 753-08322

Clutch Cover Assembly (includes 26 & 27)

$10.99

$

Usually ships in 3-6 days

0

26

MTD 710-06284

Screw

$2.99

$

In Stock, only 1 left!

0

27

MTD 1755

Screw

$3.99

$

Usually ships in 3-6 days

0

28

MTD 753-08060

Rear Engine Cover

$6.99

$

In Stock, only 1 left!

0

29

MTD 753-08324

Muffler Assembly (includes 30 & 31)

$22.99

$

In Stock, Qty 5

0

30

MTD 710-04809

Screw

$3.49

$

In Stock, only 1 left!

0

31

MTD 721-04508

Muffler Gasket

$2.49

$

In Stock, Qty 9

0
