316.740890 (41DDZ22C799) - Craftsman String Trimmer (Sears) Engine Assembly Parts Diagram

String Trimmer

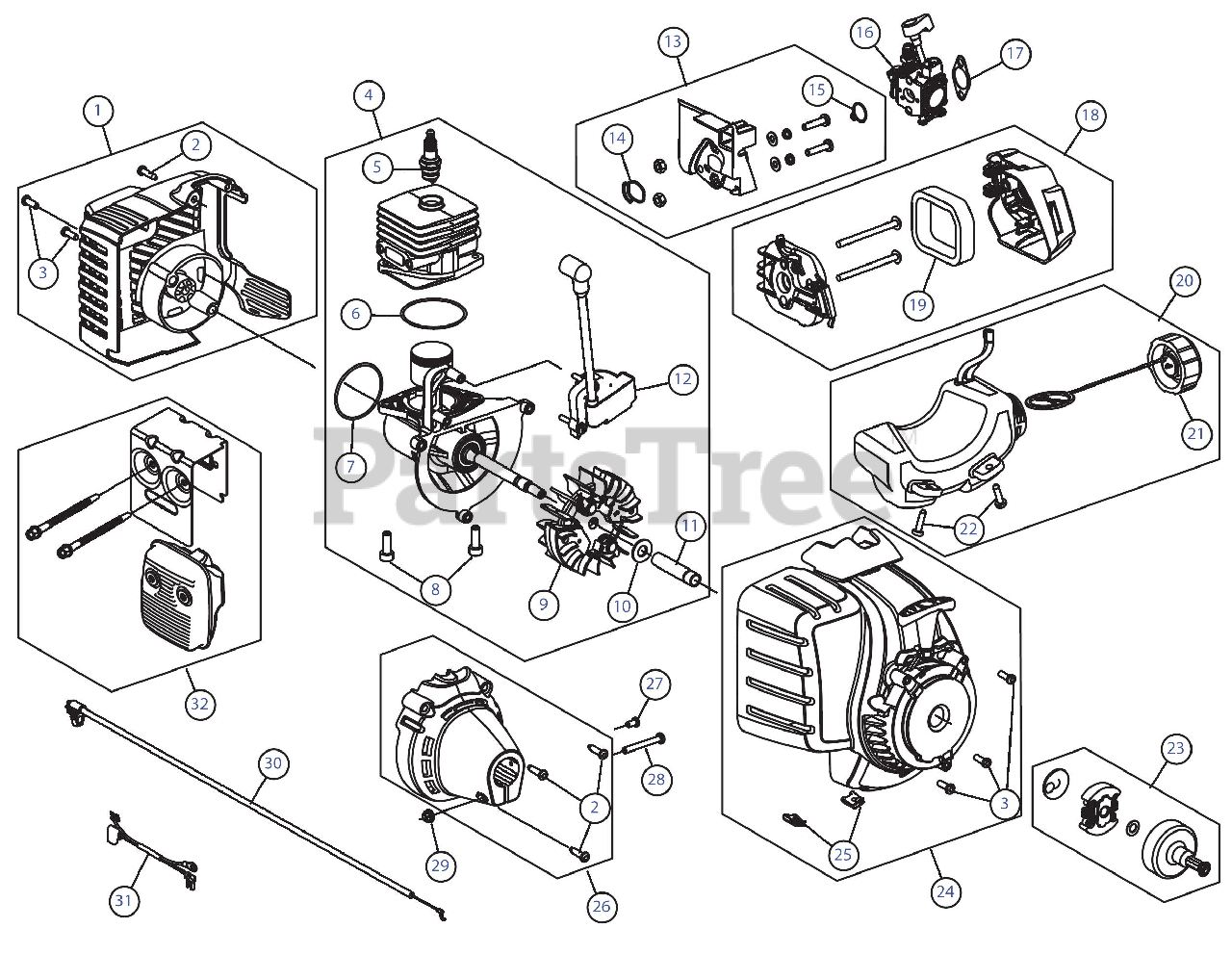

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06919

Rear Cover Assembly (includes 2 & 3)

$4.49

$

In Stock, Qty 20+

0

2

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 17

0

3

MTD 791-181862

Rear Housing Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 753-06924

Short Block Assembly (includes 5 - 12)

$70.99

$

In Stock, Qty 5

0

5

MTD 753-06847

Spark Plug

$2.99

$

In Stock, Qty 20+

0

6

MTD 753-06275

Crankcase O-Ring

$2.99

$

In Stock, Qty 20+

0

7

MTD 753-06174

O-Ring

$2.99

$

In Stock, Qty 20+

0

8

MTD 791-182723

Crankcase Bolt

$4.49

$

In Stock, Qty 20+

0

9

MTD 753-06175

Flywheel Assembly

$17.99

$

In Stock, Qty 7

0

10

MTD 753-06247

Washer

$3.49

$

In Stock, Qty 5

0

11

MTD 753-06218

Spacer

$2.99

$

In Stock, only 1 left!

0

12

MTD 753-06303

Module Assembly

$49.99

$

In Stock, Qty 7

0

13

MTD 753-06189

Insulator Assembly (includes 14 & 15)

$7.49

$

In Stock, Qty 20+

0

14

MTD 753-06184

Insulator O-Ring

$3.49

$

In Stock, Qty 20+

0

15

MTD 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

16

MTD 753-06288

Carburetor

$34.99

$

In Stock, Qty 20+

0

17

MTD 753-06253

Air Cleaner Gasket

$3.49

$

In Stock, Qty 20+

0

18

MTD 753-06500

Air Cleaner Cover Assembly (includes 19)

$5.99

$

In Stock, Qty 16

0

19

MTD 753-06417

Air Cleaner Filter

$2.99

$

In Stock, Qty 20+

0

20

MTD 753-06183

Fuel Tank Assembly (includes 21 & 22)

$12.99

$

In Stock, Qty 20+

0

21

MTD 791-182612

Fuel Tank Cap

$18.99

$

In Stock, Qty 17

0

22

MTD 791-181930

Fuel Tank Screw

$6.49

$

In Stock, Qty 9

0

23

MTD 753-05860

Clutch Assembly

$23.99

$

In Stock, Qty 20+

0

24

MTD 753-08168

Starter Housing (includes 3 & 25)

$

$

Not available

25

MTD 791-182366

U-shaped Nut

$5.49

$

In Stock, only 2 left!

0

26

MTD 753-06181

Clutch Cover (includes 2)

$3.99

$

In Stock, Qty 6

0

27

MTD 791-182519

Anti-rotation Screw

$4.99

$

In Stock, Qty 20+

0

28

MTD 753-04003

Clamp Screw
(Superseded to 9689A)

$10.99

$

Usually ships in 3-6 days

0

29

MTD 712-0161

Clamp Nut

$4.49

$

In Stock, Qty 9

0

30

MTD 746-05231

Throttle Cable

$4.49

$

In Stock, Qty 9

0

31

MTD 753-06583

Lead Wires

$3.49

$

Usually ships in 3-6 days

0

32

MTD 753-06418

Muffler Assembly
(Superseded to 753-08745)

$24.99

$

In Stock, only 3 left!

0
