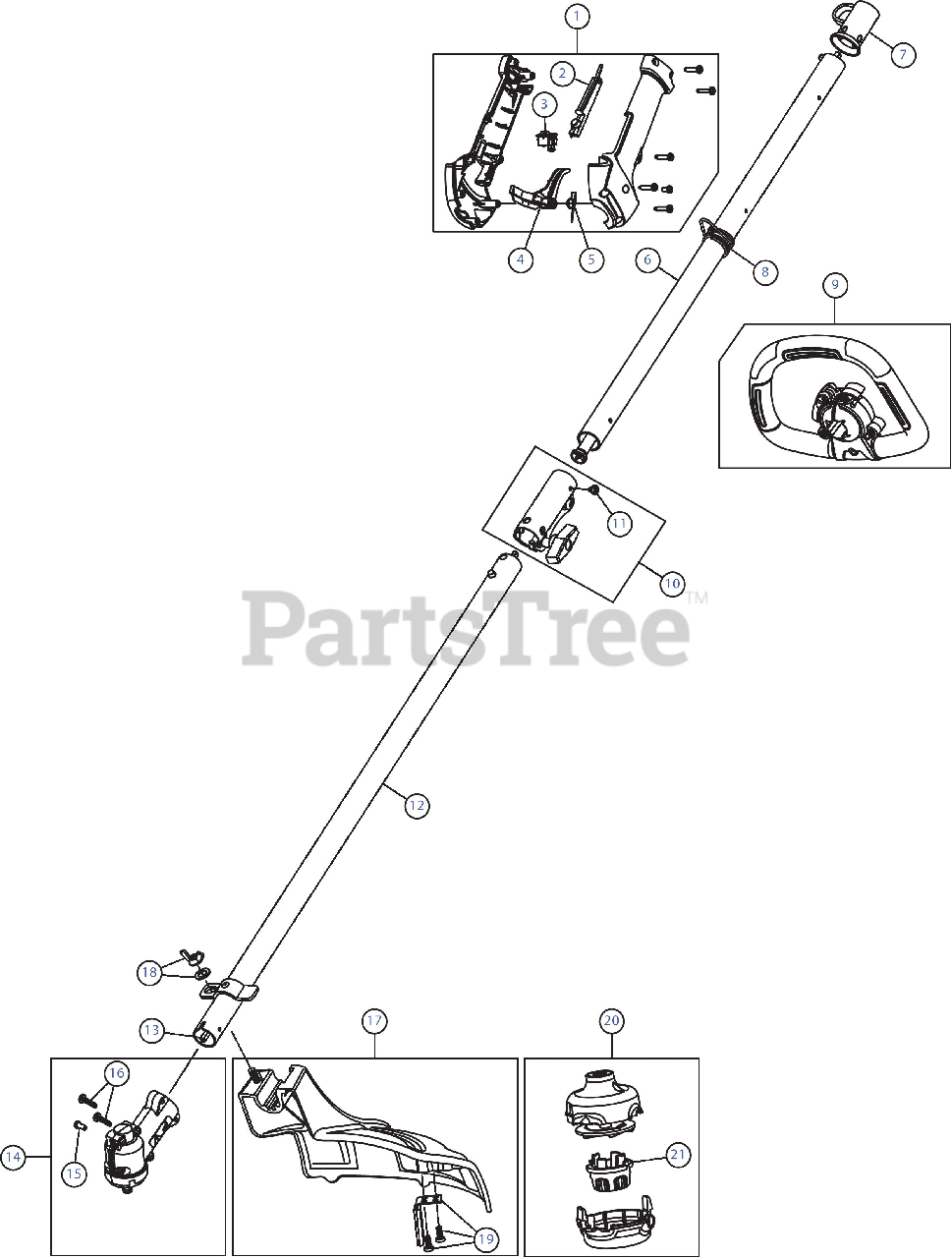

316.740930 (41EDZ47C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

Throttle Housing Assembly (includes 2 - 5)

$12.99

$

In Stock, only 3 left!

0

2

MTD 731-08433C-5

Throttle Trigger Lock-Out

$3.49

$

Usually ships in 3-6 days

0

3

MTD 791-182405

Trigger Switch Assembly

$11.99

$

In Stock, only 3 left!

0

4

MTD 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 3 left!

0

5

MTD 753-06861

Throttle Trigger

$3.49

$

In Stock, Qty 5

0

6

MTD 753-08340

Upper Drive Shaft Assembly

$18.99

$

In Stock, only 2 left!

0

7

MTD 731-08926

Hanger

$2.99

$

In Stock, Qty 20+

0

8

MTD 791-610327

Shoulder Strap Clip

$34.99

$

Usually ships in 3-6 days

0

9

MTD 753-06873

Handle

$20.99

$

Usually ships in 3-6 days

0

10

MTD 753-08690

Split Boom Coupler (includes 11)

$8.49

$

In Stock, only 2 left!

0

11

MTD 791-182057

Coupler Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

12

MTD 753-08368

Lower Drive Shaft Housing

$22.99

$

Usually ships in 3-6 days

0

13

MTD 753-05267

Lower Flexible Drive Shaft

$45.99

$

In Stock, Qty 18

0

14

MTD 753-08180

Gearbox Assembly (includes 15 & 16)

$48.99

$

In Stock, Qty 20+

0

15

MTD 791-182519

Gearbox Anti-Rotation Screw

$5.49

$

In Stock, Qty 20+

0

16

MTD 791-182195

Gearbox Screw

$7.49

$

In Stock, Qty 19

0

17

MTD 753-08354

Shield Assembly (includes 18 & 19)

$17.99

$

In Stock, only 2 left!

0

18

MTD 753-04282

Shield Mounting Hardware

$27.99

$

In Stock, only 3 left!

0

19

MTD 753-08355

Blade Assembly

$4.49

$

In Stock, only 2 left!

0

20

MTD 753-08689

Cutting Head Assembly
(Superseded to 753-09665)

$23.99

$

In Stock, Qty 5

0

21

MTD 731-09582-1

Bump Knob

$5.49

$

In Stock, Qty 13

0

MTD 697-00368

Tube of Line

$

$

Not available

MTD 795-00233

Shoulder Strap

$7.49

$

Usually ships in 3-6 days

0
