316.745400 (41ACETBC799) - Craftsman String Trimmer, Electric (Sears) Drive & Head Parts Diagram

String Trimmer, Electric

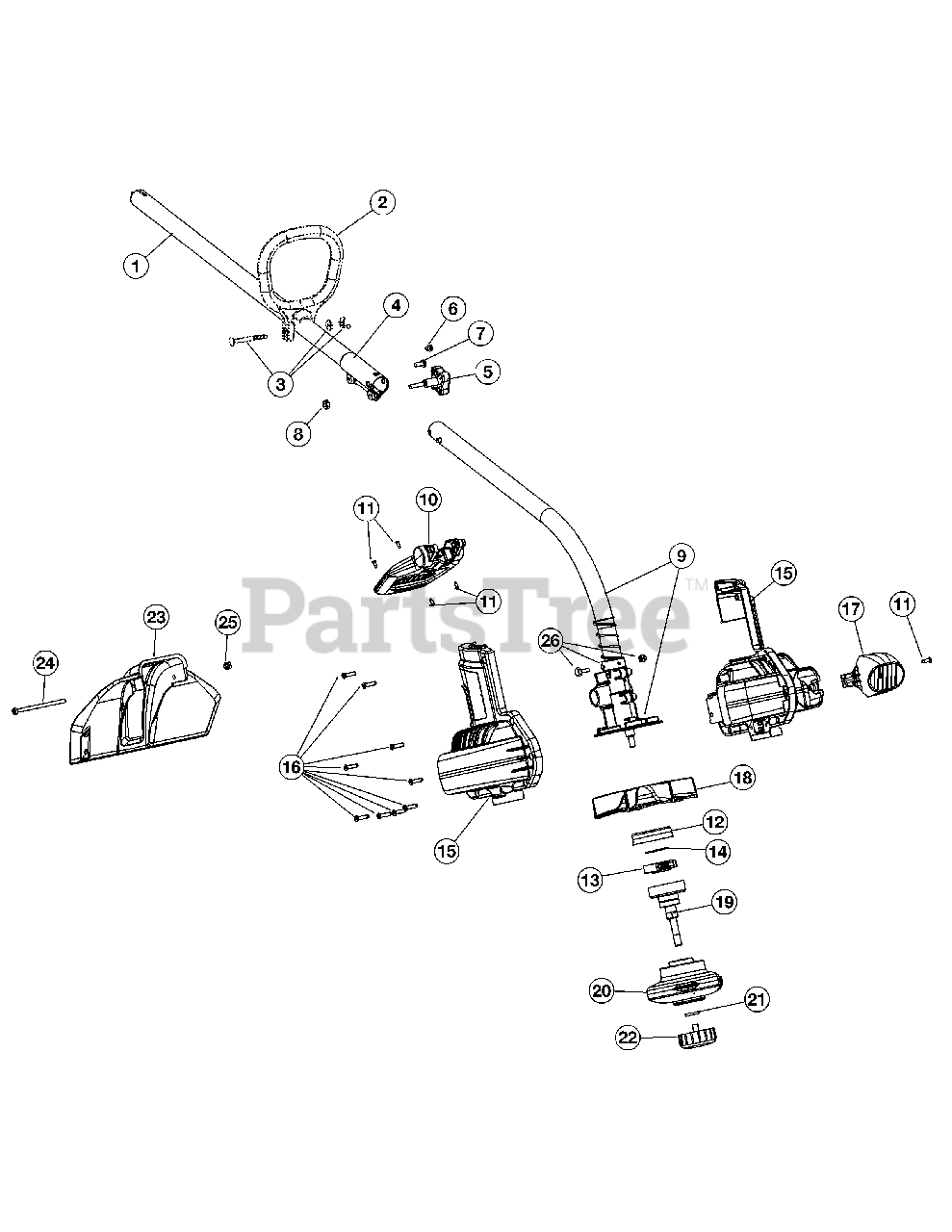

Drive & Head Parts Diagram

  • Title

1

MTD 753-04345

Upper Drive Shaft Housing Assembly

$

$

Not available

2

MTD 791-153064

D-Handle (includes 3)

$

$

Not available

3

MTD 791-181587

D-Handle Hardware Assembly

$18.99

$

In Stock, only 1 left!

0

4

MTD 753-1190

Split Boom Coupler (includes 5-8)

$21.99

$

In Stock, only 4 left!

0

5

MTD 791-181981

Adjustment Knob (includes 8)
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

6

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

7

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

8

MTD 753-04386

Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

9

MTD 753-05272

Lower Drive Shaft Housing Assembly (includes 26)

$108.99

$

Usually ships in 3-6 days

0

10

MTD 753-05258

Handle Shift Assembly (includes 11)

$

$

Not available

11

MTD 753-1202

Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

12

MTD 753-05233

Clutch Drum Container

$

$

Not available

13

MTD 753-05257

Clutch Assembly

$51.99

$

Usually ships in 3-6 days

0

14

MTD 791-182396

Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

15

MTD 753-05273

Housing Assembly (includes 16)

$

$

Not available

16

MTD 753-05274

Screw
(Superseded to 710-04508)

$3.99

$

In Stock, only 3 left!

0

17

MTD 753-05275

Nozzle

$39.99

$

Usually ships in 3-6 days

0

18

MTD 753-05276

Impeller

$33.99

$

Usually ships in 3-6 days

0

19

MTD 753-05277

Clutch Drum Assembly w/Spool Shaft

$

$

Not available

20

MTD 753-05165

Fixed Line Head
(Superseded to 753-08193)

$11.99

$

In Stock, Qty 20+

0

21

MTD 791-182413

Lock Washer
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

22

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

23

MTD 753-05282

Guard Assembly w/Blade (includes 24 & 25)

$

$

Not available

24

MTD 753-05283

Screw
(Superseded to 710-04563)

$4.49

$

In Stock, only 1 left!

0

25

MTD 791-180217

Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 9

0

26

MTD 791-153597

Clamp

$15.99

$

Usually ships in 3-6 days

0
