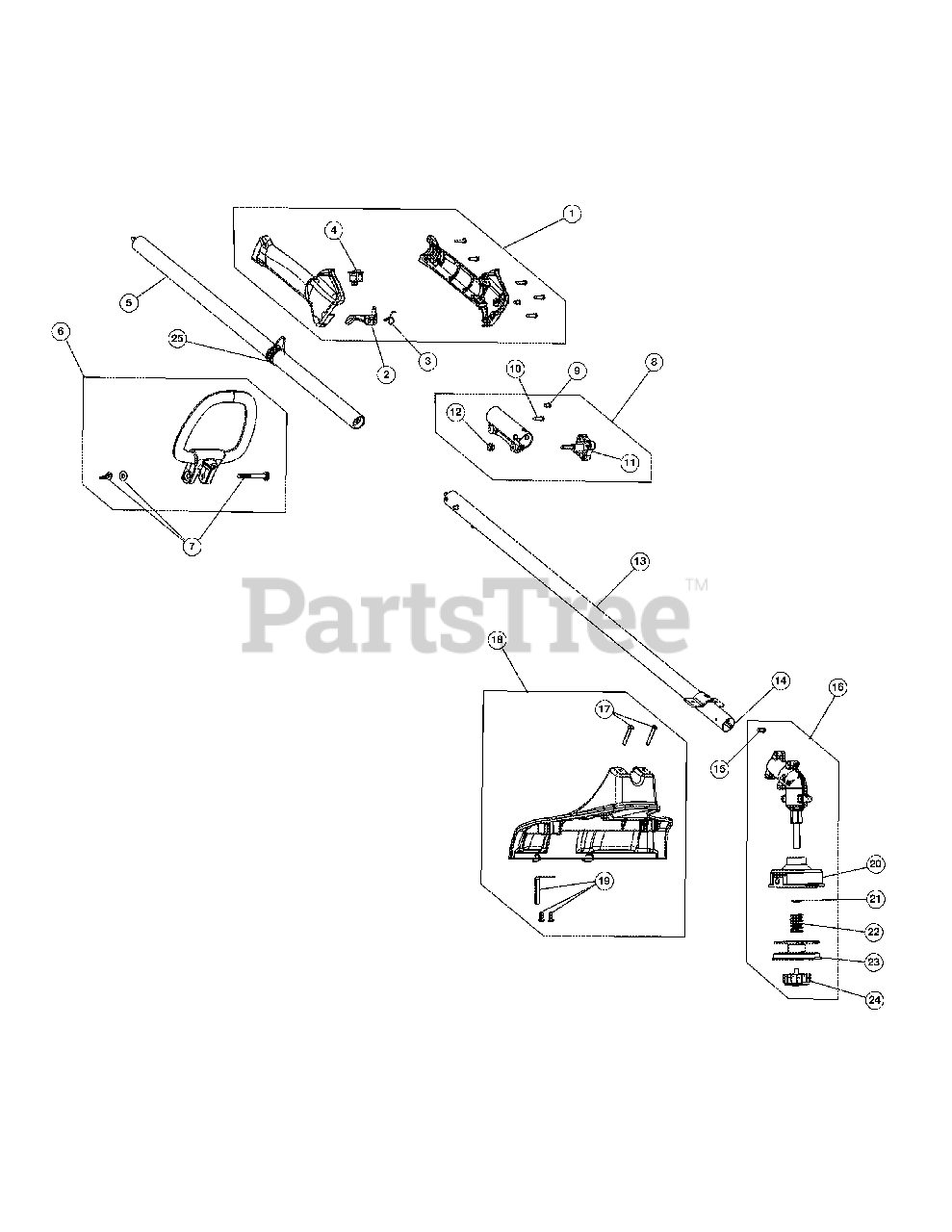

316.791191 (41CD380C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl Ref No. 2-4)

$19.99

$

In Stock, Qty 20+

0

2

MTD 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

3

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

4

MTD 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

5

MTD 753-04344

Upper Drive Shaft Housing Assembly

$79.99

$

In Stock, Qty 8

0

6

MTD 753-05461

D-Handle Assembly (Incl Ref No. 7)

$20.99

$

Usually ships in 3-6 days

0

7

MTD 791-181587

D-Handle Hardware

$18.99

$

In Stock, only 1 left!

0

8

MTD 753-1190

Split Boom Coupler (Incl Ref No. 9-12)

$21.99

$

In Stock, Qty 6

0

9

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 20+

0

10

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

11

MTD 791-181981

Adjustment Knob (Incl Ref No. 12)
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

12

MTD 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 6

0

13

MTD 753-06139

Lower Drive Shaft Housing Assembly

$19.99

$

In Stock, Qty 20+

0

14

MTD 753-05267

Lower Flexible Drive Shaft

$39.99

$

In Stock, Qty 13

0

15

MTD 7039

Anti-Rotation Screw

$4.49

$

In Stock, Qty 10

0

16

MTD 753-06571

Gear Box Assembly (Incl Ref No. 15 & 20-24)

$42.99

$

In Stock, Qty 18

0

17

MTD 753-06125

Shield Mounting Screws

$6.49

$

In Stock, Qty 8

0

18

MTD 753-06123

Shield Assembly (Incl Ref No. 17 & 19)

$19.99

$

In Stock, Qty 16

0

19

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 6

0

20

MTD 753-04284

Outer Spool Assembly (Incl Ref No. 21)

$26.99

$

In Stock, Qty 20+

0

21

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

22

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

23

MTD 753-1155

Inner Reel

$21.99

$

In Stock, Qty 20+

0

24

MTD 791-153066B

Bump Knob Assembly

$13.99

$

In Stock, Qty 20+

0

25

MTD 791-610327

Shoulder Strap Clip

$30.99

$

Usually ships in 3-6 days

0

MTD 953-1156

.095 Line Reel & Line Assembly

Note: Not shown

$31.99

$

In Stock, Qty 8

0

MTD 791-682075B

Shoulder Strap

Note: Not shown

$36.99

$

Usually ships in 3-6 days

0
