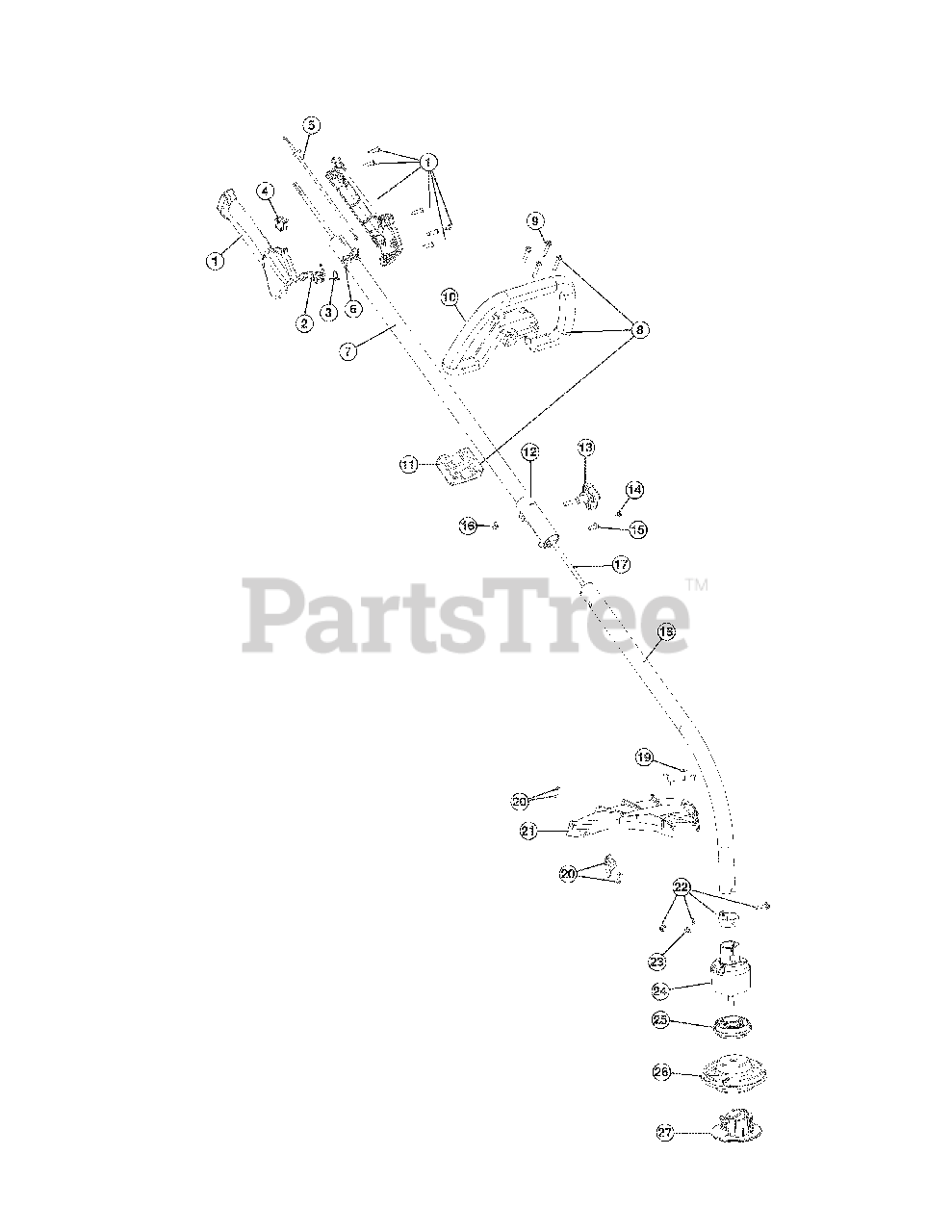

316.791810 (41AD700G799) - Craftsman String Trimmer (Sears) Boom & Trimmer Parts Parts Diagram

String Trimmer

Boom & Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (includes 2-4)

$19.99

$

In Stock, Qty 20+

0

2

MTD 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

3

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

4

MTD 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

5

MTD 753-04405

Throttle Cable Assembly

$7.49

$

In Stock, only 1 left!

0

6

MTD 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

7

MTD 753-05022

Upper Drive Shaft Housing

$

$

Not available

8

MTD 791-180869

Deluxe D-Handle Assembly (includes 9-11)

$

$

Not available

9

MTD 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

10

MTD 791-182167

D-Handle

$76.99

$

Usually ships in 3-6 days

0

11

MTD 791-182168

D-Handle Base

$

$

Not available

12

MTD 753-05029

Twist Boom Coupler (includes 13-16)

$

$

Not available

13

MTD 791-181981

Adjustment Knob (includes 16)
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

14

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

15

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

16

MTD 753-04386

Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

17

MTD 753-05030

Flexible Drive Shaft

$21.99

$

Usually ships in 3-6 days

0

18

MTD 753-05031

Lower Drive Shaft Housing

$

$

Not available

19

MTD 791-180531

Shield Mount Hardware
(Superseded to 791-181858)

$

$

Not available

20

MTD 753-05033

Blade Assembly

$8.99

$

Usually ships in 3-6 days

0

21

MTD 753-05032

Shield Assembly (includes 20)

$

$

Not available

22

MTD 791-153597

Lower Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

23

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

24

MTD 753-05050

Bushing Housing Assembly

$

$

Not available

25

MTD 753-05034

Adapter

$6.99

$

In Stock, Qty 8

0

26

MTD 753-05035

Cutting Head Assembly

$62.99

$

Usually ships in 3-6 days

0

26

MTD 753-05036

Cutting Head Cap
(Superseded to 731-05193)

$

$

Not available

MTD 753-05039

Edger Guide (NOT SHOWN)

$

$

Not available
