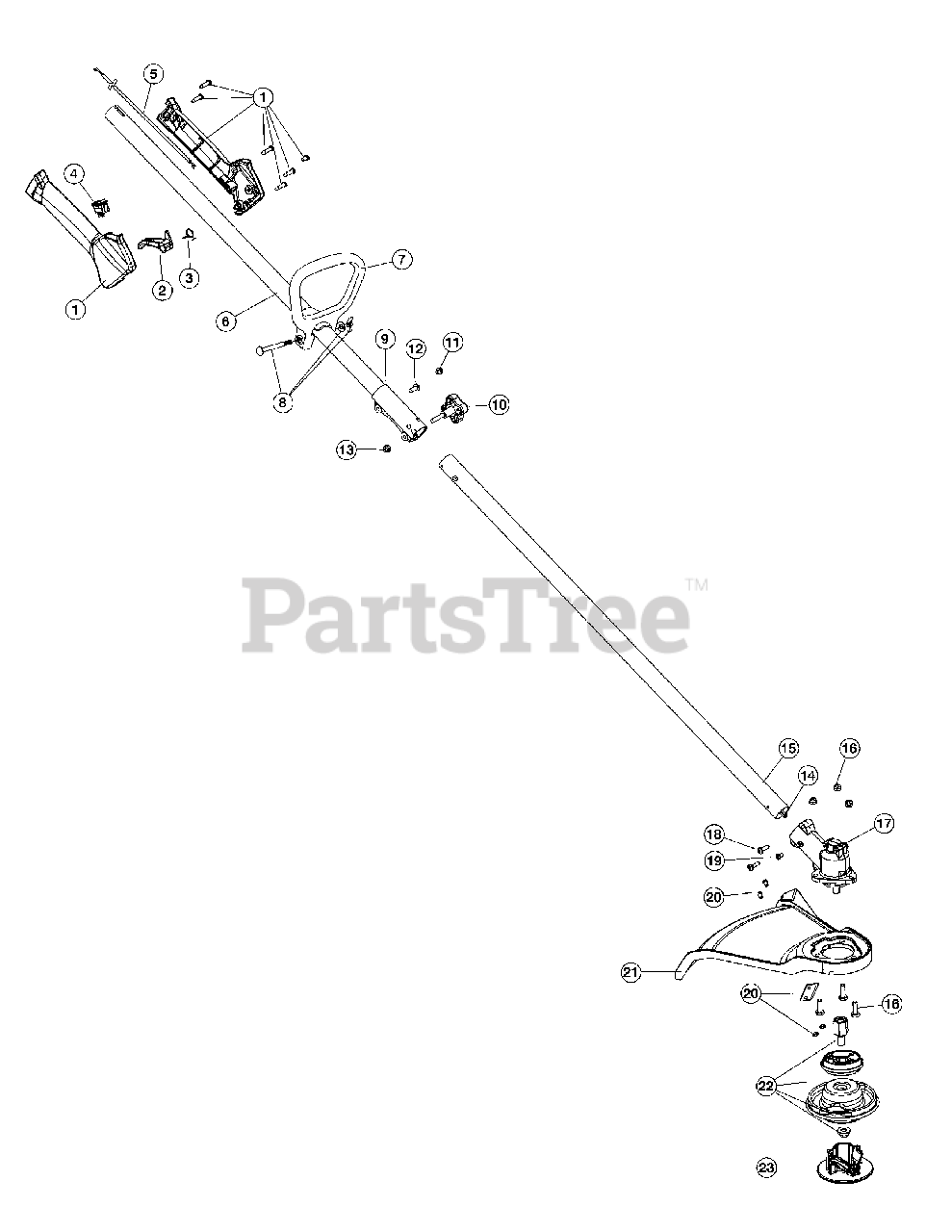

316.791860 (41AD766C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly

Note: (Incl. Ref No. 2-4)

$22.99

$

In Stock, Qty 7

0

2

MTD 753-04119

Throttle Trigger

$7.99

$

In Stock, Qty 17

0

3

MTD 791-182690

Throttle Trigger Spring

$8.49

$

In Stock, Qty 5

0

4

MTD 791-182405

Switch Assembly

$11.99

$

In Stock, Qty 8

0

5

MTD 753-04405

Throttle Cable Assembly

$8.49

$

In Stock, only 2 left!

0

6

MTD 753-04344

Upper Drive Shaft Housing

$90.99

$

In Stock, only 2 left!

0

7

MTD 753-05461

D-Handle Assembly

Note: (Incl. Ref No.8)

$23.99

$

Usually ships in 3-6 days

0

8

MTD 791-181587

D-Handle Hardware

$20.99

$

In Stock, only 1 left!

0

9

MTD 753-1190

Split Boom Coupler

Note: (Incl. Ref No. 10-13)

$24.99

$

In Stock, Qty 11

0

10

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

Note: (Incl. Ref No. 13)

$7.49

$

Usually ships in 3-6 days

0

11

MTD 791-182057

Screw

$4.99

$

In Stock, Qty 17

0

12

MTD 791-181617

Bolt

$5.99

$

In Stock, Qty 10

0

13

MTD 753-04386

Nut
(Superseded to 712-04018A)

$4.99

$

In Stock, only 4 left!

0

14

MTD 791-613300

Lower Flexible Drive Shaft

$93.99

$

Usually ships in 3-6 days

0

15

MTD 791-182541

Lower Drive Shaft Housing

$98.99

$

Usually ships in 3-6 days

0

16

MTD 791-182200

Shield Mount Screw Assembly

$7.49

$

In Stock, only 2 left!

0

17

MTD 753-05569

Gearbox Assembly

$

$

Not available

18

MTD 791-182195

Gearbox Screw

$7.49

$

In Stock, Qty 20+

0

19

MTD 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

20

MTD 791-682061

Blade Assembly

$15.99

$

In Stock, only 2 left!

0

21

MTD 791-182189

Shield Assembly

Note: (Incl. Ref No.20)

$69.99

$

Usually ships in 3-6 days

0

22

MTD 753-05489

Cutting Head Assembly
(Superseded to 753-05045)

Note: (Incl. Ref No.23)

$79.99

$

Usually ships in 3-6 days

0

23

MTD 753-05036

Cutting Head Cap
(Superseded to 731-05193)

$

$

Not available

MTD 753-05038

Tube of Line
(Superseded to 697-00368)

Note: (Not Shown)

$

$

Not available
