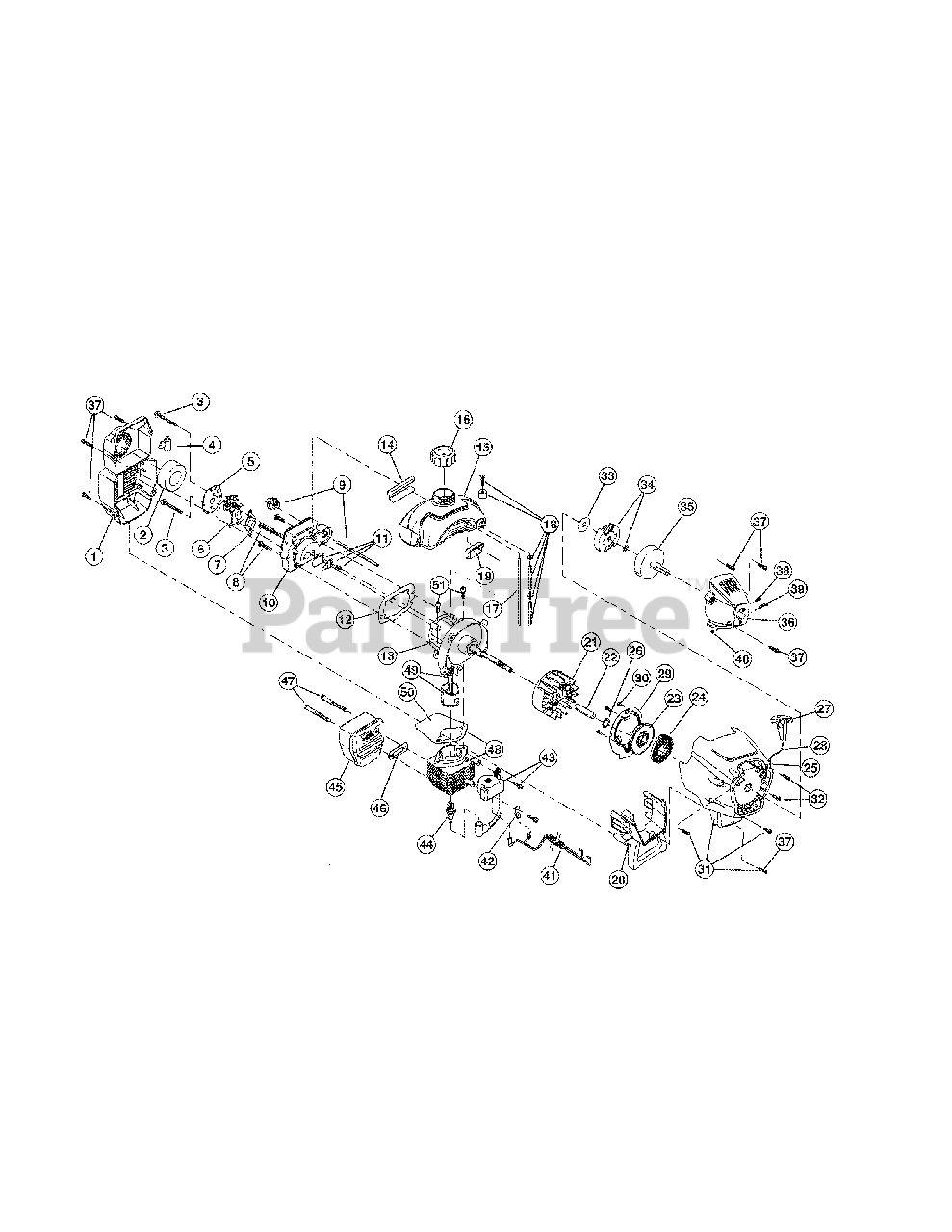

316.791880 (41AD765G799) - Craftsman String Trimmer (Sears) Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-04810

Air Cleaner Assembly (includes 2 & 37)

$

$

Not available

2

MTD 791-180350B

Air Cleaner Filter

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 753-04227

Choke Extension

$

$

Not available

5

MTD 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

6

MTD 753-04338

Carburetor Assembly (includes 7 & 18)

$89.99

$

In Stock, only 3 left!

0

7

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

MTD 791-683974B

Primer and Hose Assembly

$21.99

$

In Stock, Qty 20+

0

10

MTD 753-1196

Carb Mount Assembly (includes 8, 11 & 12)

$

$

Not available

11

MTD 791-684451

Reed Assembly

$

$

Not available

12

MTD 753-1208

Carburetor Mount Gasket

$15.99

$

In Stock, only 3 left!

0

13

MTD 753-04401

Crank Case Service Assembly (includes 8)

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 753-04606

Fuel Tank Assembly (includes 16-18)

$

$

Not available

16

MTD 791-181803

Fuel Cap Assembly

$

$

Not available

17

MTD 791-181086

Fuel Return Line

$6.99

$

In Stock, Qty 20+

0

18

MTD 791-683398

Fuel Line Assembly

$

$

Not available

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

MTD 753-04702

Shroud Extension & Stand (includes 37)

$29.99

$

Usually ships in 3-6 days

0

21

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

22

MTD 791-181525

Spacer

$20.99

$

Usually ships in 3-6 days

0

23

MTD 753-04459

Recoil Pulley Assembly (Includes 26)
(Superseded to 753-04823)

$30.99

$

In Stock, Qty 9

0

24

MTD 753-04286

Recoil Spring

$24.99

$

In Stock, Qty 6

0

25

MTD 753-1200

Rope Guide

$11.99

$

Usually ships in 3-6 days

0

26

MTD 753-04288

Palnut

$9.99

$

In Stock, only 1 left!

0

27

MTD 753-05011

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

28

MTD 791-613103

Rope

$9.99

$

In Stock, only 3 left!

0

29

MTD 753-04417

Pressure Plate Assembly (includes 30)

$

$

Not available

30

MTD 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

31

MTD 753-05049

Starter Housing Assembly (includes 23-30, 32 & 37)

$

$

Not available

32

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

33

MTD 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

34

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$23.99

$

In Stock, Qty 20+

0

35

MTD 791-153592

Clutch Drum Assembly

$48.99

$

In Stock, Qty 15

0

36

MTD 753-04497

Clutch Cover Assembly (includes 37-40)

$

$

Not available

37

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 17

0

38

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

39

MTD 753-04003

Clamping Screw
(Superseded to 9689A)

$10.99

$

Usually ships in 3-6 days

0

40

MTD 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 9

0

41

MTD 753-04792

Wire Leads and Sleeve
(Superseded to 753-05025)

$13.99

$

Usually ships in 3-6 days

0

42

MTD 791-611063

Ground Tab

$

$

Not available

43

MTD 753-05012

Module Assembly (includes 42)

$74.99

$

Usually ships in 3-6 days

0

44

MTD 791-610311B

Spark Plug

$13.99

$

In Stock, Qty 8

0

45

MTD 753-04618

Muffler Assembly (includes 46 & 47)
(Superseded to 753-05169)

$104.99

$

Usually ships in 3-6 days

0

46

MTD 753-04619

Exhaust Gasket

$8.49

$

In Stock, only 3 left!

0

47

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$3.99

$

Usually ships in 3-6 days

0

48

MTD 753-04814

Cylinder Assembly (includes 50 & 51)

$78.99

$

In Stock, only 1 left!

0

49

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

50

MTD 753-04182

Cylinder Gasket

$15.99

$

Usually ships in 3-6 days

0

51

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

MTD 753-04689

Spark Arrestor (NOT SHOWN)

$

$

Not available

MTD 753-1209

Piston Ring Set (NOT SHOWN)

$49.99

$

Usually ships in 3-6 days

0

MTD 753-04812

Short Block Assembly (includes 13, 44 & 48-51) (NOT SHOWN)

$208.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs (Qty. 2) (NOT SHOWN)

$10.99

$

In Stock, only 1 left!

0
