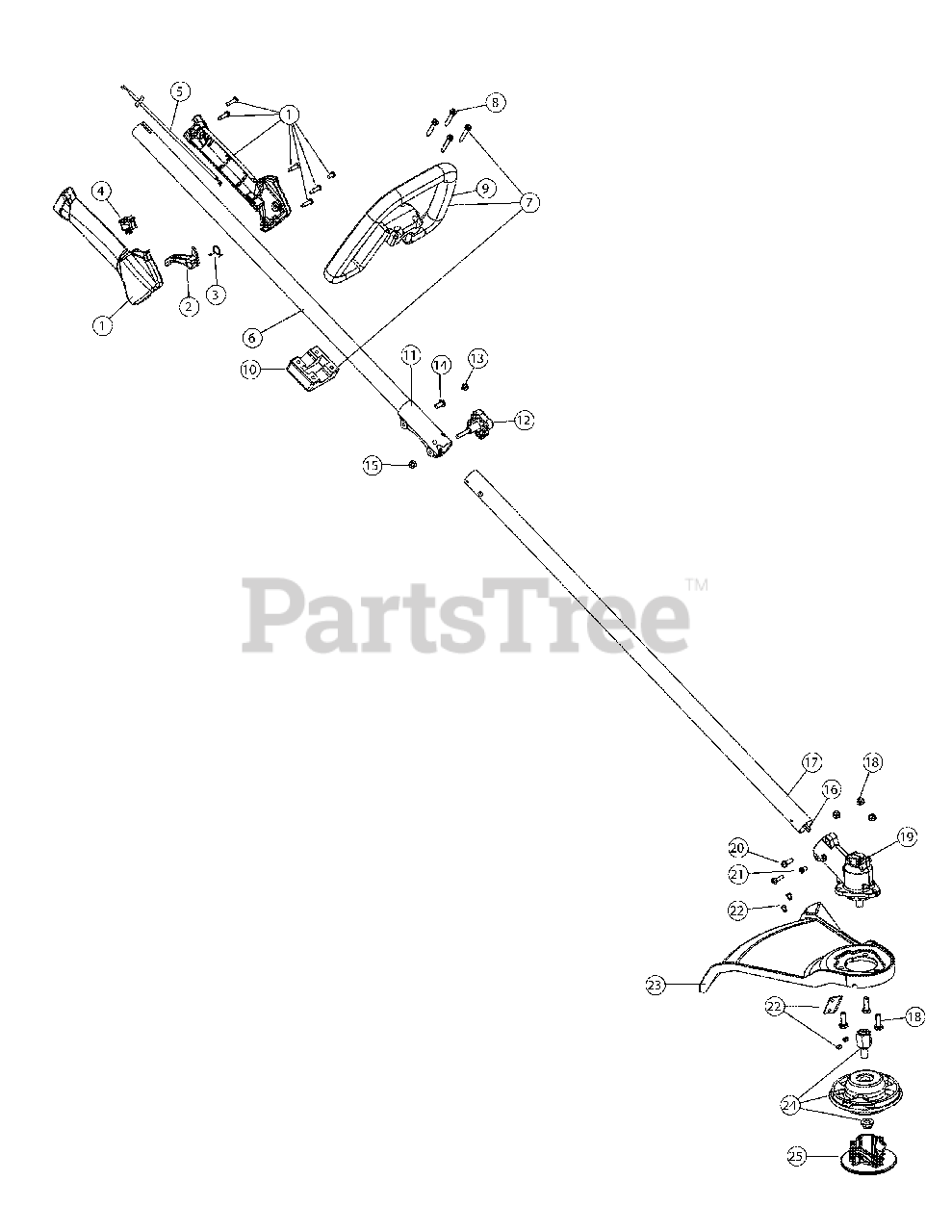

316.791930 (41AD588C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly

Note: (Incl. Ref No. 2-4)

$19.99

$

In Stock, Qty 20+

0

2

MTD 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

3

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

4

MTD 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

5

MTD 753-05266

Throttle Cable Assembly

$19.99

$

In Stock, Qty 20+

0

6

MTD 753-05834

Upper Shaft assembly
(Superseded to 753-04236)

$89.99

$

In Stock, Qty 7

0

7

MTD 791-180869

Deluxe D-Handle Assembly

Note: (Incl. Ref No. 8-10)

$

$

Not available

8

MTD 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

9

MTD 791-182167

D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

D-Handle Base

$

$

Not available

11

MTD 753-1190

Split Boom Coupler

Note: (Incl. Ref No. 12-15)

$21.99

$

In Stock, only 4 left!

0

12

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

Note: (Incl. Ref No. 15)

$7.49

$

In Stock, only 1 left!

0

13

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

14

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

15

MTD 753-04386

Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

16

MTD 753-05267

Lower Flexible Drive Shaft

$39.99

$

In Stock, Qty 13

0

17

MTD 753-04504

Lower Shaft Housing

$64.99

$

In Stock, only 1 left!

0

18

MTD 791-182200

Shield Mount Screw Assembly

$6.49

$

In Stock, only 2 left!

0

19

MTD 791-182193

Gearbox Assembly

Note: (Incl. Ref No. 20 & 21)

$92.99

$

In Stock, only 2 left!

0

20

MTD 791-182195

Gearbox Screw

$6.99

$

In Stock, Qty 14

0

21

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

22

MTD 753-05807

Blade Assembly

$

$

Not available

23

MTD 791-182189

Shield Assembly

Note: (Incl. Ref No. 22)

$61.99

$

Usually ships in 3-6 days

0

24

MTD 753-05779

Cutting Head Assembly

$

$

Not available

25

MTD 753-05780

Cutting Head Cap

$8.99

$

Usually ships in 3-6 days

0

MTD 791-182196

Spacer

Note: Not Shown

$20.99

$

In Stock, only 3 left!

0

MTD 753-05038

Tube of Line
(Superseded to 697-00368)

Note: Not Shown

$

$

Not available
