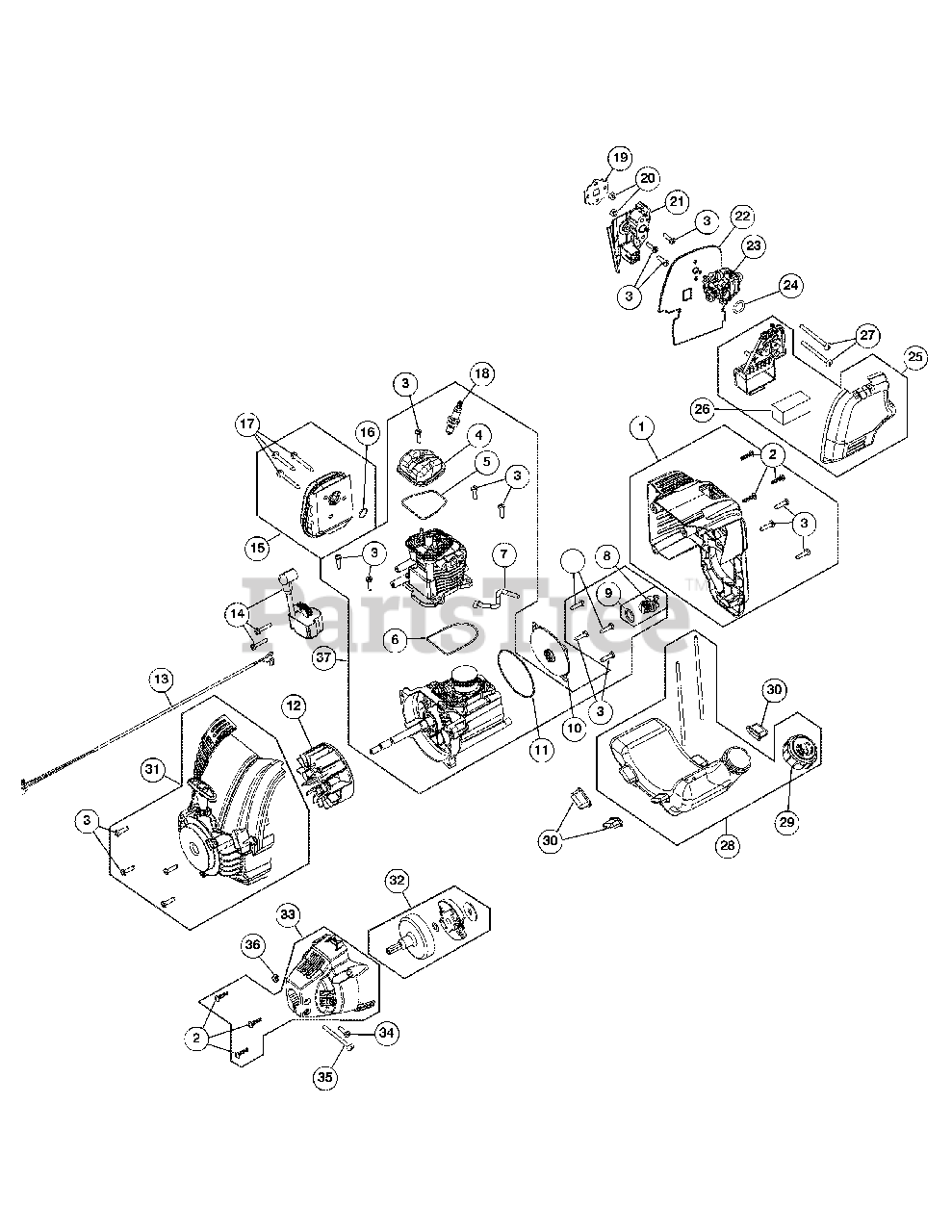

316.791930 (41CD588C799) - Craftsman String Trimmer (Sears) Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06113

Engine Cover Assembly (Incl. Ref No. 2 & 3)

$14.99

$

Usually ships in 3-6 days

0

2

MTD 710-04194

Cover Screw

$3.99

$

In Stock, Qty 20+

0

3

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

4

MTD 753-05209

Rocker Cover

$18.99

$

Usually ships in 3-6 days

0

5

MTD 721-04132

Rocker Cover O-Ring

$9.49

$

Usually ships in 3-6 days

0

6

MTD 753-05232

Cylinder O-Ring

$9.49

$

Usually ships in 3-6 days

0

7

MTD 791-182379

Breather Hose

$4.49

$

In Stock, only 1 left!

0

8

MTD 753-05408

Oil Plug (Incl. Ref No. 9)

$27.99

$

In Stock, only 1 left!

0

9

MTD 791-182290

Oil Plug O-Ring

$4.99

$

Usually ships in 3-6 days

0

10

MTD 753-06111

Crankcase Cover
(Superseded to 841-020721S)

$12.99

$

In Stock, only 3 left!

0

11

MTD 753-05238

Crankcase Cover O-ring

$9.99

$

In Stock, only 2 left!

0

12

MTD 753-06221

Flywheel Assembly

$19.99

$

In Stock, only 1 left!

0

13

MTD 753-05264

Lead Wires

$15.99

$

In Stock, only 1 left!

0

14

MTD 753-05447

Module Assembly

$96.99

$

In Stock, only 1 left!

0

15

MTD 753-05245

Muffler Assembly (Incl. Ref No. 16 & 17)

$86.99

$

Usually ships in 3-6 days

0

16

MTD 753-05244

Muffler Gasket

$5.49

$

In Stock, Qty 11

0

17

MTD 710-04487

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

18

MTD 794-00043

Spark Plug
(Superseded to 794-00082)

$4.49

$

In Stock, Qty 20+

0

19

MTD 753-05247

Insulator Gasket

$7.99

$

In Stock, Qty 8

0

20

MTD 753-05248

Nut
(Superseded to 712-04099)

$6.49

$

In Stock, only 2 left!

0

21

MTD 753-05249

Insulator

$17.99

$

In Stock, only 2 left!

0

22

MTD 753-05366

Carburetor Gasket

$18.99

$

In Stock, Qty 14

0

23

MTD 753-06258

Carburetor w/Primer
(Superseded to 753-06258A)

$55.99

$

In Stock, Qty 20+

0

24

MTD 791-181751

Air Cleaner O-Ring

$4.49

$

In Stock, Qty 20+

0

25

MTD 753-05831

Air Cleaner Cover Assembly (Incl. Ref No. 32)

$21.99

$

In Stock, Qty 7

0

26

MTD 753-05254

Air Filter

$5.99

$

In Stock, Qty 20+

0

27

MTD 710-04517

Screw

$4.99

$

In Stock, Qty 17

0

28

MTD 753-06240

Fuel Tank Assembly w/Fuel Lines (Incl. Ref No. 35)

$27.99

$

In Stock, Qty 20+

0

29

MTD 753-1229

Fuel Cap

$21.99

$

In Stock, only 2 left!

0

30

MTD 753-05259

Fuel Tank Pads

$6.49

$

In Stock, only 2 left!

0

31

MTD 753-05832

Starter Housing Assembly (Incl. Ref No. 3 & 37-45)

$45.99

$

Usually ships in 3-6 days

0

32

MTD 753-06281

Clutch Assembly

$20.99

$

In Stock, Qty 20+

0

33

MTD 753-05263

Clutch Cover (Incl. Ref No. 2)

$25.99

$

In Stock, only 1 left!

0

34

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

35

MTD 753-04003

Clamp Screw
(Superseded to 9689A)

$10.99

$

Usually ships in 3-6 days

0

36

MTD 791-180217

Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 9

0

37

MTD 753-06225

Shortblock Assembly

Note: (Incl.Crankcase, Cylinder, 3-9, 11, 17 & 18)

$115.99

$

Usually ships in 3-6 days

0

MTD 49M2027P799

Electric Start

Note: Not Shown

$

$

Currently unavailable

MTD 49MESCBL799

Start Bit

Note: Not Shown

$

$

Not available
