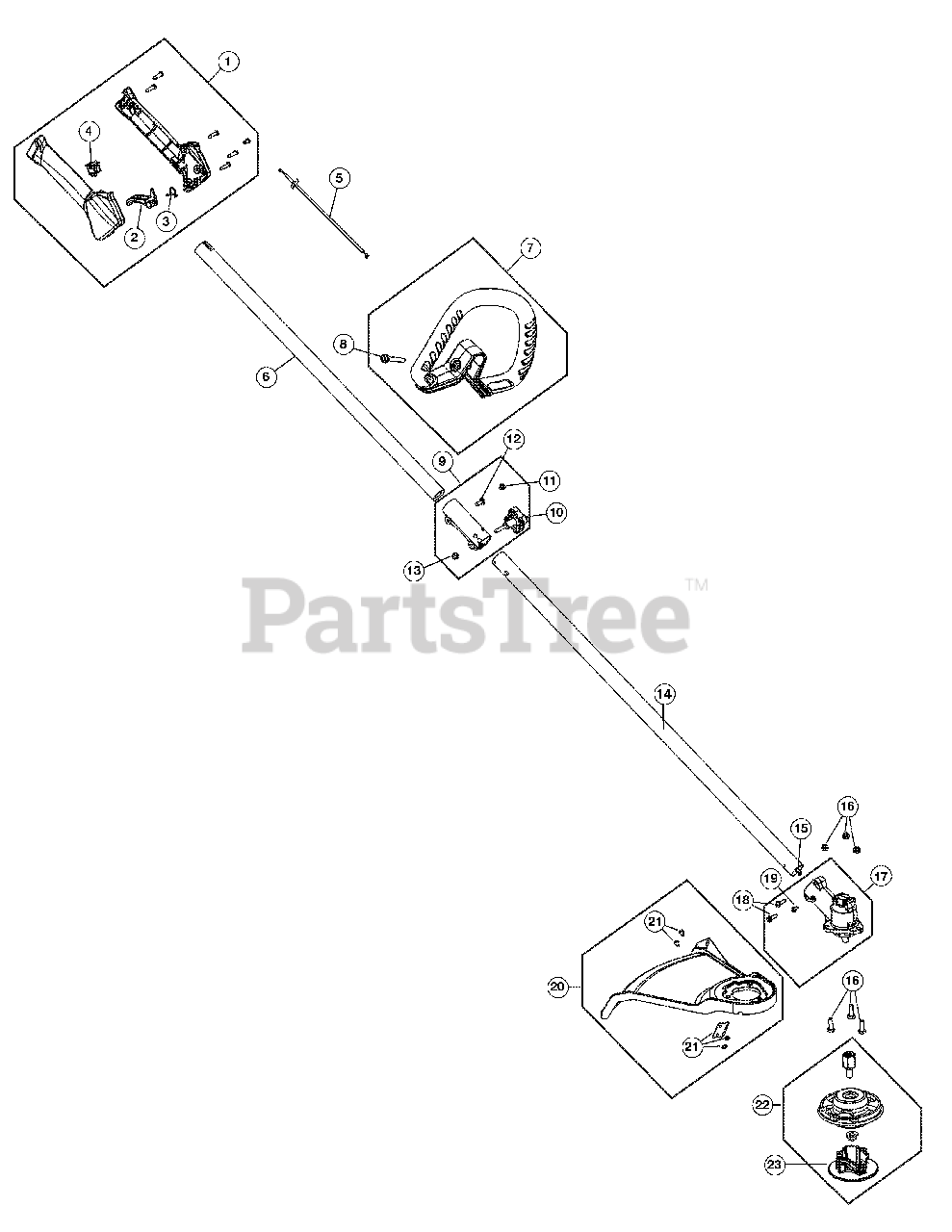

316.791930 (41CD588C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. Ref No. 2-4)

$22.99

$

In Stock, Qty 7

0

2

MTD 753-04119

Throttle Trigger

$7.99

$

In Stock, Qty 17

0

3

MTD 791-182690

Throttle Trigger Spring

$8.49

$

In Stock, Qty 5

0

4

MTD 791-182405

Switch Assembly

$11.99

$

In Stock, Qty 9

0

5

MTD 753-05266

Throttle Cable Assembly

$21.99

$

In Stock, Qty 9

0

6

MTD 753-04236

Upper Drive Shaft Assembly

$99.99

$

In Stock, only 2 left!

0

7

MTD 753-06039

D-Handle Assembly (Incl. Ref No. 8-10)

$11.99

$

In Stock, only 4 left!

0

8

MTD 753-06040

Screw

$7.49

$

In Stock, Qty 18

0

9

MTD 753-1190

Split Boom Coupler (Incl. Ref No. 10-13)

$24.99

$

In Stock, Qty 11

0

10

MTD 791-181981

Adjustment Knob (Incl. Ref No. 15)
(Superseded to 697-00661-9)

$7.49

$

Usually ships in 3-6 days

0

11

MTD 791-182057

Coupler Anti-Rotation Screw

$4.99

$

In Stock, Qty 17

0

12

MTD 791-181617

Coupler Bolt

$5.99

$

In Stock, Qty 10

0

13

MTD 712-04018A

Adjustment Knob Nut

$4.99

$

In Stock, only 4 left!

0

14

MTD 753-04504

Lower Drive Shaft Housing

$73.99

$

Usually ships in 3-6 days

0

15

MTD 753-05267

Lower Flexible Drive Shaft

$45.99

$

In Stock, Qty 20+

0

16

MTD 791-182200

Shield Mount Screw Assembly

$7.49

$

In Stock, only 2 left!

0

17

MTD 791-182193

Gearbox Assembly (Incl. Ref No. 18 & 19)

$105.99

$

In Stock, only 2 left!

0

18

MTD 791-182195

Gearbox Screw

$7.49

$

In Stock, Qty 20+

0

19

MTD 791-182519

Gearbox Anti-Rotation Screw

$5.49

$

In Stock, Qty 20+

0

20

MTD 753-05807

Shield Assembly (Incl. Ref No. 21)

$

$

Not available

21

MTD 791-180553

Blade Assembly

$15.99

$

In Stock, Qty 7

0

22

MTD 753-05779

Cutting Head Assembly (Incl. Ref No. 23)

$

$

Not available

23

MTD 753-05780

Cutting Head Cap

$9.99

$

Usually ships in 3-6 days

0

MTD 791-182196

Spacer

Note: Not Shown

$23.99

$

In Stock, only 2 left!

0

MTD 697-00368

Tube of Line

Note: Not Shown

$

$

Not available
