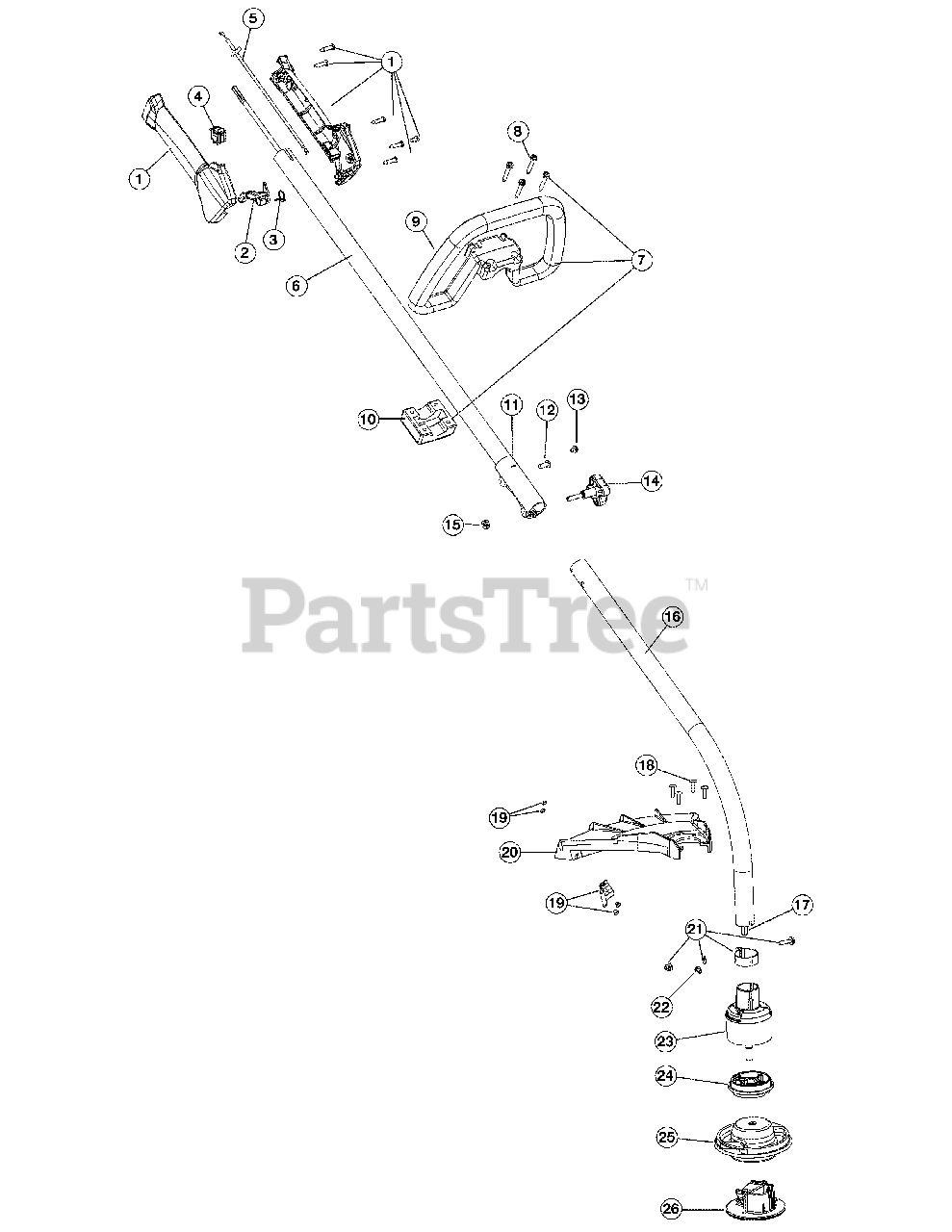

316.791940 (41AD528C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly

Note: (Incl. Ref No.2-4)

$19.99

$

In Stock, Qty 20+

0

2

MTD 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

3

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

4

MTD 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

5

MTD 753-05266

Throttle Cable Assembly

$19.99

$

In Stock, Qty 20+

0

6

MTD 753-04236

Upper Drive Shaft Housing

$89.99

$

In Stock, Qty 7

0

7

MTD 791-180869

Deluxe D-Handle Assembly

Note: (Incl. Ref No.8-10)

$

$

Not available

8

MTD 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

9

MTD 791-182167

D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

D-Handle Base

$

$

Not available

11

MTD 753-1190

Click Link Coupler

Note: (Incl. Ref No.12-15)

$21.99

$

In Stock, Qty 6

0

12

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

13

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 20+

0

14

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

Note: (Incl. Ref No.15)

$7.49

$

In Stock, only 1 left!

0

15

MTD 753-04386

Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

16

MTD 791-182387

Lower Drive Shaft Housing

$58.99

$

In Stock, only 2 left!

0

17

MTD 791-181852

Lower Flexible Drive Shaft

$58.99

$

In Stock, only 1 left!

0

18

MTD 791-180531

Shield Mount Hardware
(Superseded to 791-181858)

$

$

Not available

19

MTD 753-05033

Blade Assembly

$8.99

$

Usually ships in 3-6 days

0

20

MTD 753-05032

Shield Assembly

Note: (Incl. Ref No.19)

$

$

Not available

21

MTD 791-153597

Lower Clamp Assembly

Note: (Incl. Ref No.22)

$15.99

$

Usually ships in 3-6 days

0

22

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

23

MTD 753-05050

Bushing Housing Assembly

$

$

Not available

24

MTD 753-05034

Adapter

$6.99

$

In Stock, Qty 8

0

25

MTD 753-05035

Cutting Head Assembly

$62.99

$

Usually ships in 3-6 days

0

26

MTD 753-05036

Cutting Head Cap
(Superseded to 731-05193)

$

$

Not available

MTD 753-05038

Tube of Precut Line
(Superseded to 697-00368)

Note: not shown

$

$

Not available
