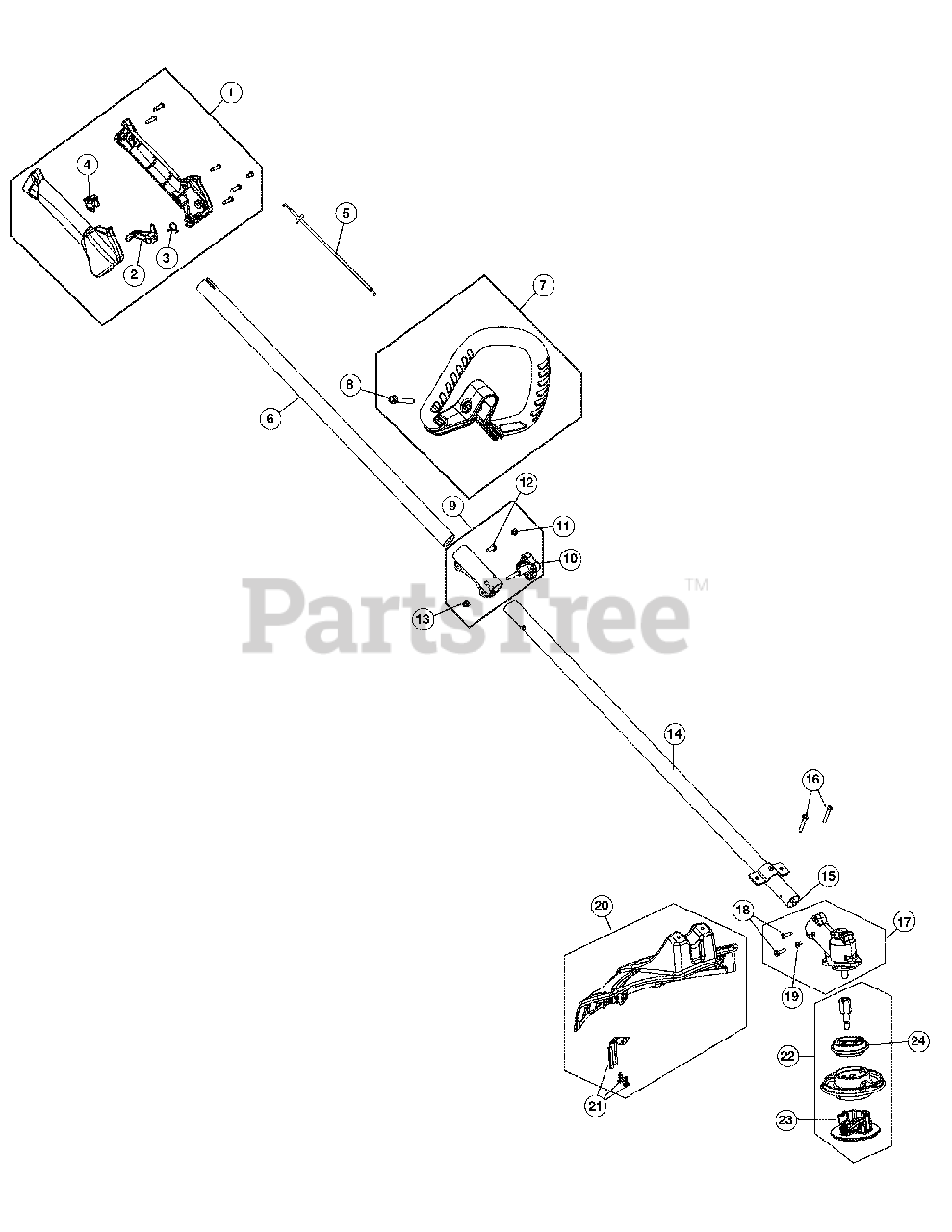

316.79196 (41AD586C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly

Note: (Incl.Ref No. 2-4)

$19.99

$

In Stock, Qty 20+

0

2

MTD 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

3

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 15

0

4

MTD 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

5

MTD 753-05266

Throttle Cable Assembly

$19.99

$

In Stock, Qty 20+

0

6

MTD 753-04236

Upper Drive Shaft Assembly

$89.99

$

In Stock, Qty 7

0

7

MTD 753-06039

D-Handle Assembly

Note: (Incl.Ref No. 8)

$10.99

$

In Stock, only 3 left!

0

8

MTD 753-06040

Screw

$6.49

$

In Stock, Qty 8

0

9

MTD 753-1190

Split Boom Coupler

Note: (Incl.Ref No. 10-13)

$21.99

$

In Stock, only 4 left!

0

10

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

Note: (Incl.Ref No. 13)

$7.49

$

In Stock, only 1 left!

0

11

MTD 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 15

0

12

MTD 791-181617

Coupler Bolt

$4.99

$

In Stock, Qty 13

0

13

MTD 712-04018A

Adjustment Knob Nut

$4.49

$

In Stock, Qty 6

0

14

MTD 753-06139

Lower Drive Shaft Housing

$19.99

$

In Stock, Qty 20+

0

15

MTD 753-05267

Lower Flexible Drive Shaft

$39.99

$

In Stock, Qty 13

0

16

MTD 753-06125

Shield Mount Screw Assembly

$6.49

$

In Stock, Qty 8

0

17

MTD 791-182193

Gearbox Assembly

Note: (Incl.Ref No. 18 & 19)

$92.99

$

In Stock, only 2 left!

0

18

MTD 791-182195

Gearbox Screw

$6.99

$

In Stock, Qty 14

0

19

MTD 791-182519

Gearbox Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

20

MTD 753-06292

Shield Assembly

Note: (Incl.Ref No. 21)

$13.99

$

Usually ships in 3-6 days

0

21

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 6

0

22

MTD 753-05489

Cutting Head Assembly
(Superseded to 753-05045)

Note: (Incl.Ref No. 23 & 24)

$70.99

$

Usually ships in 3-6 days

0

23

MTD 731-05193

Cutting Head Cap

$

$

Not available

24

MTD 791-182196

Spacer

$20.99

$

In Stock, only 3 left!

0

MTD 697-00368

Tube of Line

Note: Not Shown

$

$

Not available
