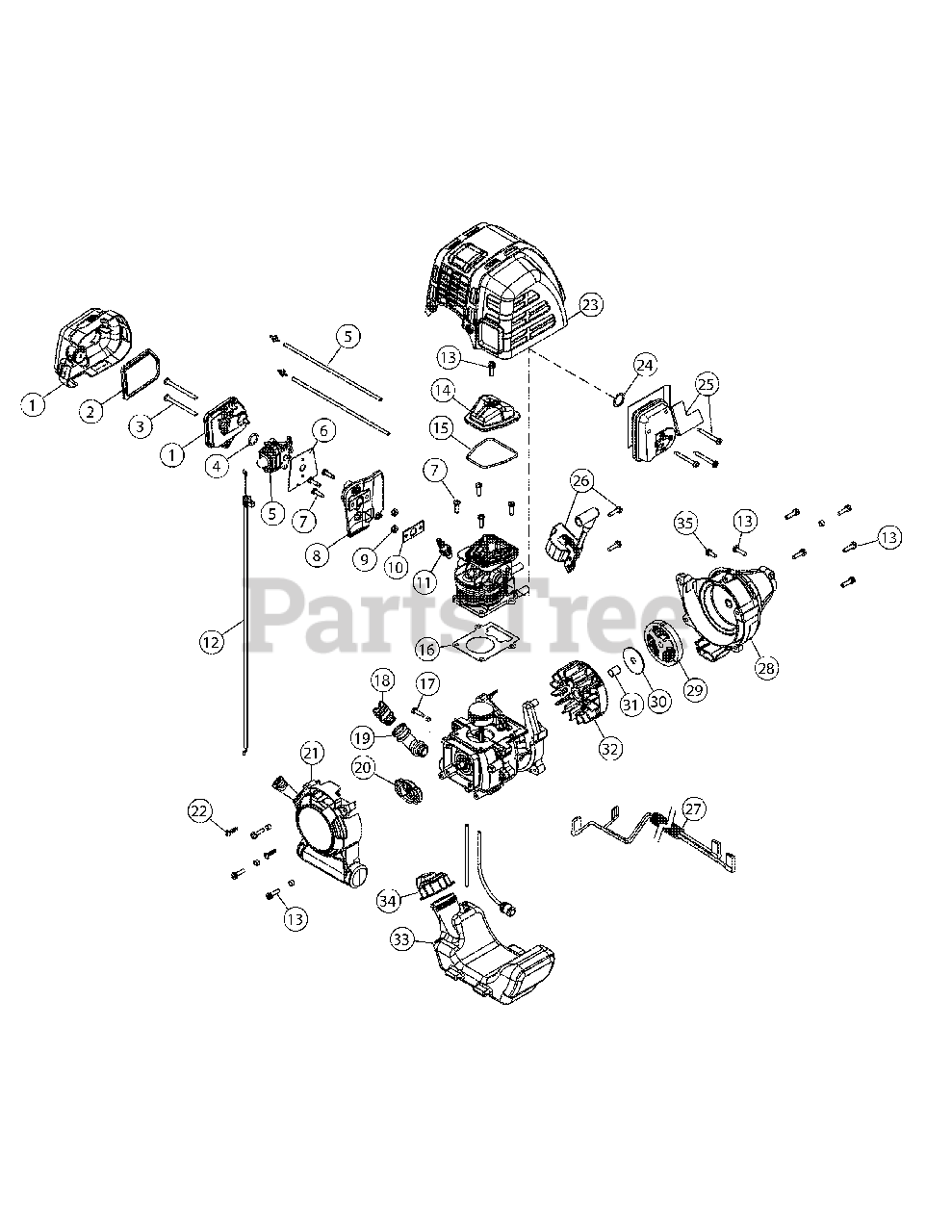

316.791990 (41AD616G799) - Craftsman String Trimmer (Sears) Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-05843

Air Cleaner Assembly
(Superseded to 753-05800)

Note: (Incl. Ref No. 2 & 3)

$37.99

$

Usually ships in 3-6 days

0

2

MTD 753-05802

Air Filter

$

$

Not available

3

MTD 753-05253

Screw
(Superseded to 710-04517)

$4.99

$

In Stock, Qty 6

0

4

MTD 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 20+

0

5

MTD 753-05845

Carburetor Assembly w/ Fuel Lines

$

$

Not available

6

MTD 753-05803

Carburetor Gasket

$7.49

$

Usually ships in 3-6 days

0

7

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

8

MTD 753-05804

Insulator

$

$

Not available

9

MTD 753-05248

Nut
(Superseded to 712-04099)

$6.49

$

In Stock, only 1 left!

0

10

MTD 753-05673

Insulator Gasket

$9.99

$

Usually ships in 3-6 days

0

11

MTD 753-05784

Spark Plug
(Superseded to 794-00082)

$4.49

$

In Stock, Qty 20+

0

12

MTD 753-05266

Throttle Cable

$19.99

$

In Stock, Qty 20+

0

13

MTD 753-05805

Screw
(Superseded to 710-04742A)

$3.49

$

In Stock, only 1 left!

0

14

MTD 753-05671

Valve Cover

$12.99

$

Usually ships in 3-6 days

0

15

MTD 753-05672

Valve O-Ring

$9.99

$

In Stock, only 2 left!

0

16

MTD 753-05681

Cylinder Gasket

$9.49

$

Usually ships in 3-6 days

0

17

MTD 753-05377

Screw
(Superseded to 710-04604)

$3.99

$

In Stock, Qty 13

0

18

MTD 753-05400

Oil Plug Assembly
(Superseded to 753-05408)

$27.99

$

In Stock, only 1 left!

0

19

MTD 753-05806

Oil fill Tube Assembly

Note: (Incl. Ref No 17)

$

$

Not available

20

MTD 753-05635

Pawl Assembly

$

$

Not available

21

MTD 753-05808

Rear Starter Cover Assembly

$

$

Not available

22

MTD 753-04595

Screw
(Superseded to 710-04194)

$3.99

$

In Stock, Qty 20+

0

23

MTD 753-05844

Starter Housing

$

$

Not available

24

MTD 753-05670

Muffler Gasket

$9.99

$

Usually ships in 3-6 days

0

25

MTD 753-05810

Muffler Assembly

$

$

Not available

26

MTD 753-05846

Module Assembly
(Superseded to 753-05301)

$105.99

$

Usually ships in 3-6 days

0

27

MTD 753-05264

Lead Wires

$15.99

$

In Stock, only 1 left!

0

28

MTD 753-05811

Clutch Cover Assembly

$

$

Not available

29

MTD 753-05812

Clutch

$34.99

$

Usually ships in 3-6 days

0

30

MTD 753-05813

Clutch Washer
(Superseded to 9162-3)

$5.99

$

Usually ships in 3-6 days

0

31

MTD 753-05814

Spacer

$3.99

$

In Stock, Qty 8

0

32

MTD 753-05815

Flywheel

Note: (Incl. Ref No 34)

$21.99

$

Usually ships in 3-6 days

0

33

MTD 753-05816

Fuel Tank

$

$

Not available

34

MTD 753-1229

Fuel Cap

$21.99

$

In Stock, only 2 left!

0

35

MTD 753-05619

Anti-Rotation Screw
(Superseded to 710-04394)

$6.49

$

Usually ships in 3-6 days

0

MTD 753-05817

Short Block Assembly

Note: (Not Shown)

$

$

Not available
