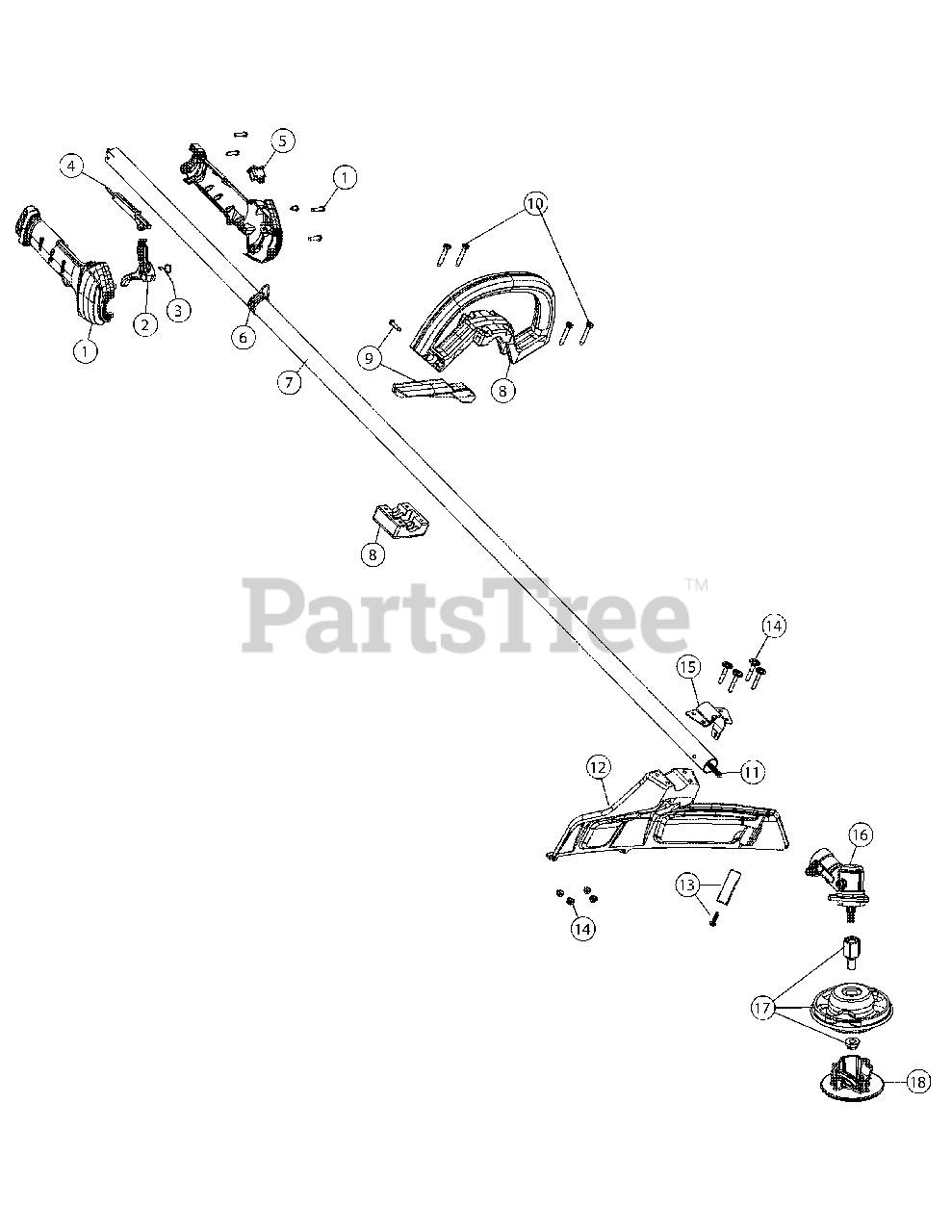

316.791990 (41AD616G799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-05296

Throttle Housing Assembly
(Superseded to 753-09645)

Note: (Incl. Ref No.2-5)

$13.99

$

Usually ships in 3-6 days

0

2

MTD 753-05293

Throttle Trigger
(Superseded to 731-04970B-10)

$9.99

$

In Stock, only 3 left!

0

3

MTD 753-05007

Spring

$5.49

$

In Stock, only 3 left!

0

4

MTD 753-05171

Throttle Lock-out
(Superseded to 731-04971C-10)

$5.49

$

Usually ships in 3-6 days

0

5

MTD 791-182673

Switch

$11.99

$

In Stock, only 2 left!

0

6

MTD 791-610327

Shoulder Strap Clip

$34.99

$

Usually ships in 3-6 days

0

7

MTD 753-05818

Driver Shaft Housing

$

$

Not available

8

MTD 753-05008

D-Handle Assembly

Note: (Incl. Ref No 9 & 10)

$33.99

$

In Stock, only 2 left!

0

9

MTD 753-05295

Barrier Bar Assembly

$36.99

$

Usually ships in 3-6 days

0

10

MTD 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

11

MTD 753-05819

Solid Drive Shaft

$30.99

$

Usually ships in 3-6 days

0

12

MTD 753-05820

Shield Assembly

Note: (Incl. Ref No 13)

$25.99

$

In Stock, only 3 left!

0

13

MTD 753-05821

Blade Assembly

$9.99

$

Usually ships in 3-6 days

0

14

MTD 753-05822

Guard Mounting Hardware

$7.49

$

Usually ships in 3-6 days

0

15

MTD 753-05823

Guard Mounting Bracket

$

$

Not available

16

MTD 753-05824

Gearbox

$63.99

$

Usually ships in 3-6 days

0

17

MTD 753-05779

Cutting Head Assembly

$

$

Not available

18

MTD 753-05780

Cutting Head Cap

$9.99

$

Usually ships in 3-6 days

0

MTD 753-05842

Locking Rod

Note: (Not Shown)

$

$

Not available

MTD 753-05038

Tube of Line
(Superseded to 697-00368)

Note: (Not Shown)

$

$

Not available
