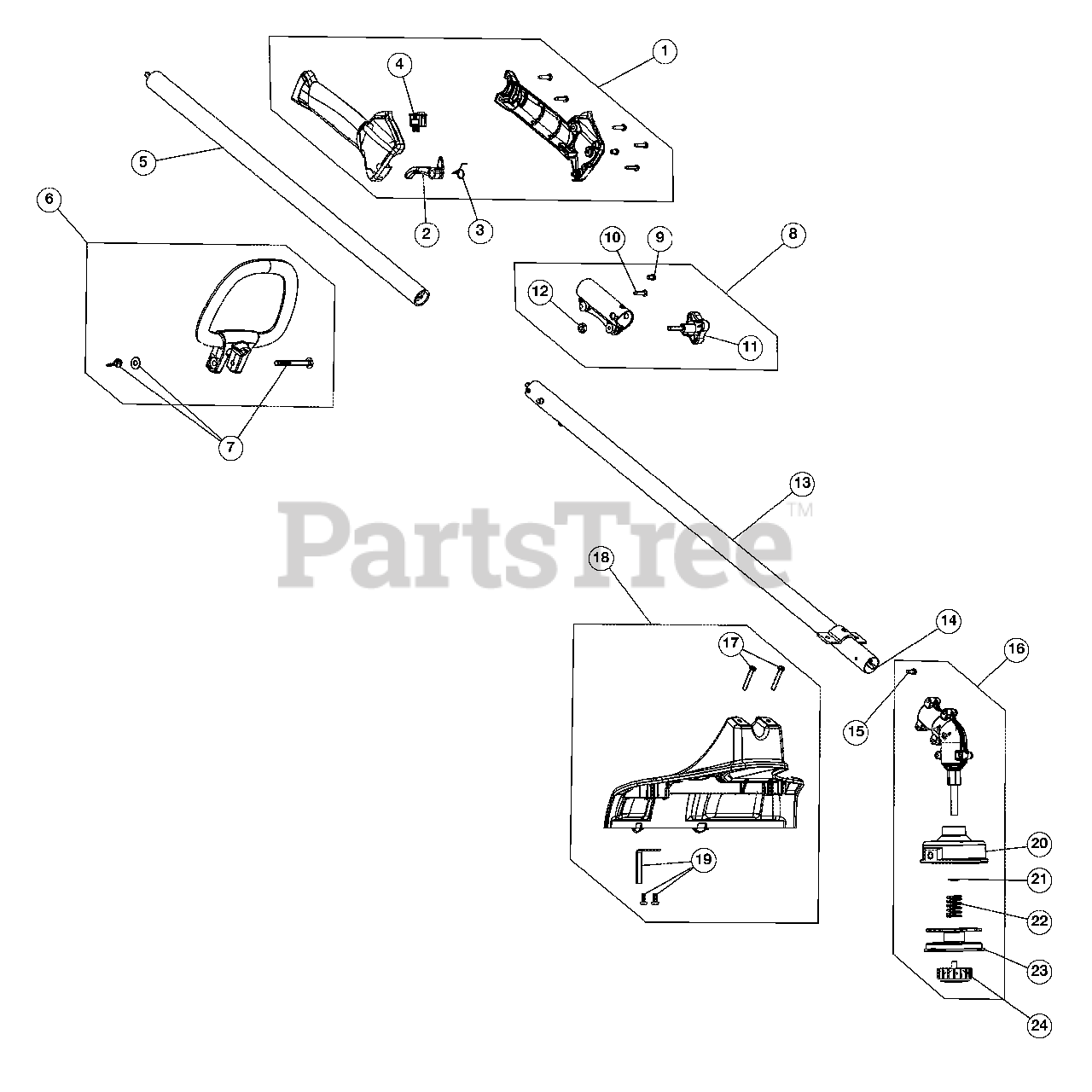

316.794400 (41ADZ21C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

Throttle Housing Assembly (Incl. 2-4)

$12.99

$

In Stock, only 3 left!

0

2

MTD 753-06791

Throttle Trigger

$3.49

$

In Stock, Qty 13

0

3

MTD 791-182690

Throttle Trigger Spring

$8.49

$

In Stock, only 2 left!

0

4

MTD 791-182405

Switch

$11.99

$

In Stock, only 3 left!

0

5

MTD 753-06682

Upper Drive Shaft Housing Assembly

$19.99

$

In Stock, Qty 8

0

6

MTD 753-05461

D-Handle Assembly (Incl. 7)

$23.99

$

Usually ships in 3-6 days

0

7

MTD 791-181587

D-Handle Hardware

$20.99

$

Usually ships in 3-6 days

0

8

MTD 753-06793

Split Boom Coupler (Incl. 9-12)

$7.99

$

Usually ships in 3-6 days

0

9

MTD 791-182057

Screw

$4.99

$

In Stock, Qty 20+

0

10

MTD 791-181617

Bolt

$5.99

$

In Stock, Qty 8

0

11

MTD 791-181981

Adjustment Knob (Incl. 12)
(Superseded to 697-00661-9)

$7.49

$

Usually ships in 3-6 days

0

12

MTD 712-04018A

Knob Retaining Nut

$4.99

$

In Stock, only 3 left!

0

13

MTD 753-06789

Lower Drive Shaft Housing Assembly

$24.99

$

In Stock, Qty 14

0

14

MTD 753-05267

Lower Flexible Drive Shaft

$45.99

$

In Stock, Qty 18

0

15

MTD 7039

Anti-Rotation Screw

$4.99

$

In Stock, Qty 5

0

16

MTD 753-06571

Gear Box Assembly (Incl. 15 & 20-24)

$

$

Not available

17

MTD 753-06125

Shield Mounting Screws

$7.49

$

In Stock, only 2 left!

0

18

MTD 753-06123

Shield Assembly (Incl. 17 & 19)

$21.99

$

In Stock, Qty 5

0

19

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, only 4 left!

0

20

MTD 753-04284

Outer Spool Assembly (Incl. 21)

$29.99

$

In Stock, Qty 16

0

21

MTD 791-610660

Retainer

$5.49

$

In Stock, Qty 8

0

22

MTD 791-610317B

Spring

$11.99

$

In Stock, Qty 20+

0

23

MTD 753-1155

Inner Reel

$24.99

$

In Stock, Qty 16

0

24

MTD 791-153066B

Bump Knob Assembly

$14.99

$

In Stock, Qty 18

0

MTD 953-1156

.095 Line Reel & Line Assembly

Note: (not shown)

$33.99

$

In Stock, only 1 left!

0

MTD 791-682075B

Shoulder Strap

Note: (not shown)

$41.99

$

Usually ships in 3-6 days
