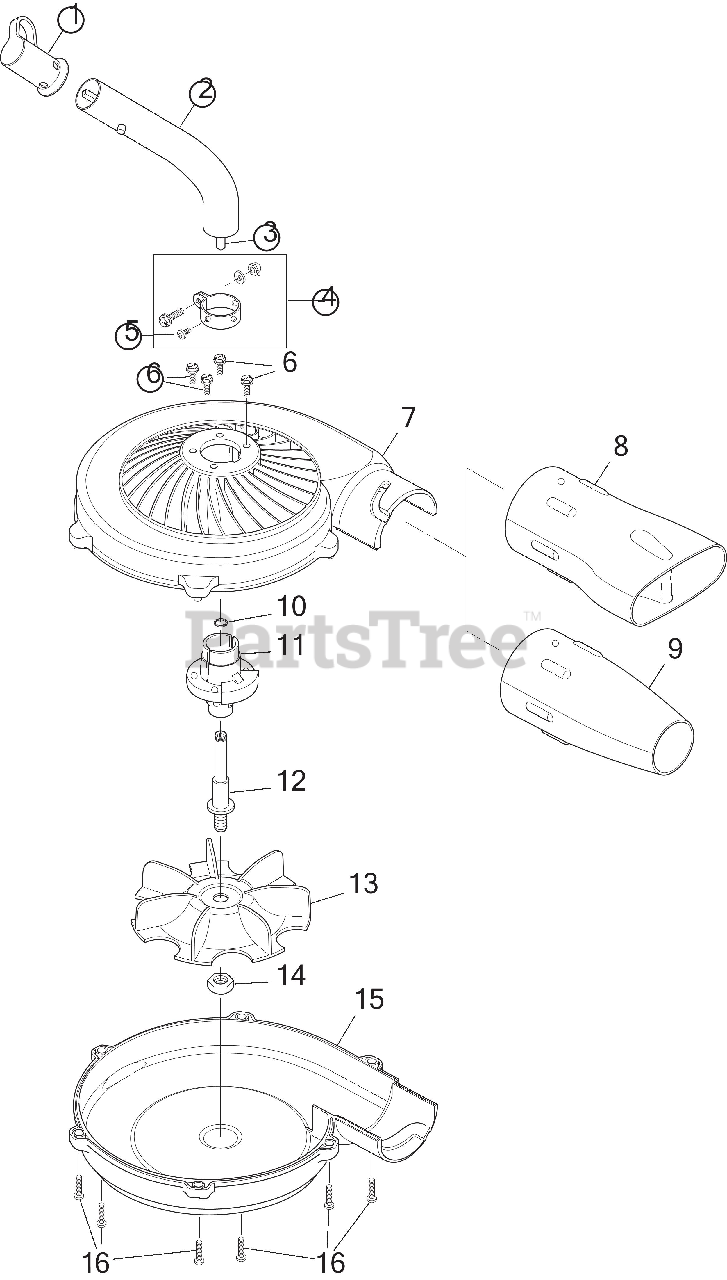

316.794460 (41ADZ3CC799) - Craftsman String Trimmer (Sears) Blower Attachment Parts Diagram

String Trimmer

Blower Attachment Parts Diagram

  • Title

1

MTD 731-08926

HANGER

$2.49

$

In Stock, Qty 16

0

2

MTD 753-1218

DRIVE SHAFT HOUSING ASSEMBLY

$98.99

$

Usually ships in 3-6 days

0

3

MTD 791-181166

LOWERIBLE DRIVE SHAFT

$28.99

$

In Stock, only 1 left!

0

4

MTD 791-153597

CLAMP ASSEMBLY-LOWER

Note: (includes 5)

$15.99

$

Usually ships in 3-6 days

0

5

MTD 791-145569

ANTI ROTATION SCREW

$9.49

$

In Stock, Qty 10

0

6

MTD 791-181853

SCREW, 10-24X1/2 HEX

$

$

Not available

7

MTD 791-181996

HOUSING, UPPER BLOWER AT

$

$

Not available

8

MTD 791-181632

NOZZLE, SPREADER

$

$

Not available

9

MTD 791-181633

NOZZLE, CONCENTRAT

$22.99

$

Usually ships in 3-6 days

0

10

MTD 753-04348

PALNUT:3/8" DIAMET

$6.49

$

In Stock, only 1 left!

0

11

MTD 791-181636

ASSEMBLY, BUSHING HOUSING

$

$

Not available

12

MTD 791-181634

SHAFT, DRIVE BLOWER

$

$

Not available

13

MTD 791-181635

IMPELLER, BLOWER A

$

$

Not available

14

MTD 791-181637

NUT, 7/16" THD, 3/

$

$

Not available

15

MTD 791-181997

HOUSING, LOWER BLOWER AT

$

$

Not available

16

MTD 791-181345

SCREW, #8-16X.750 PH

$3.99

$

In Stock, Qty 17

0
