316.794800 (41AR4BPG799) - Craftsman Blower (Sears) General Assembly Parts Diagram

Blower

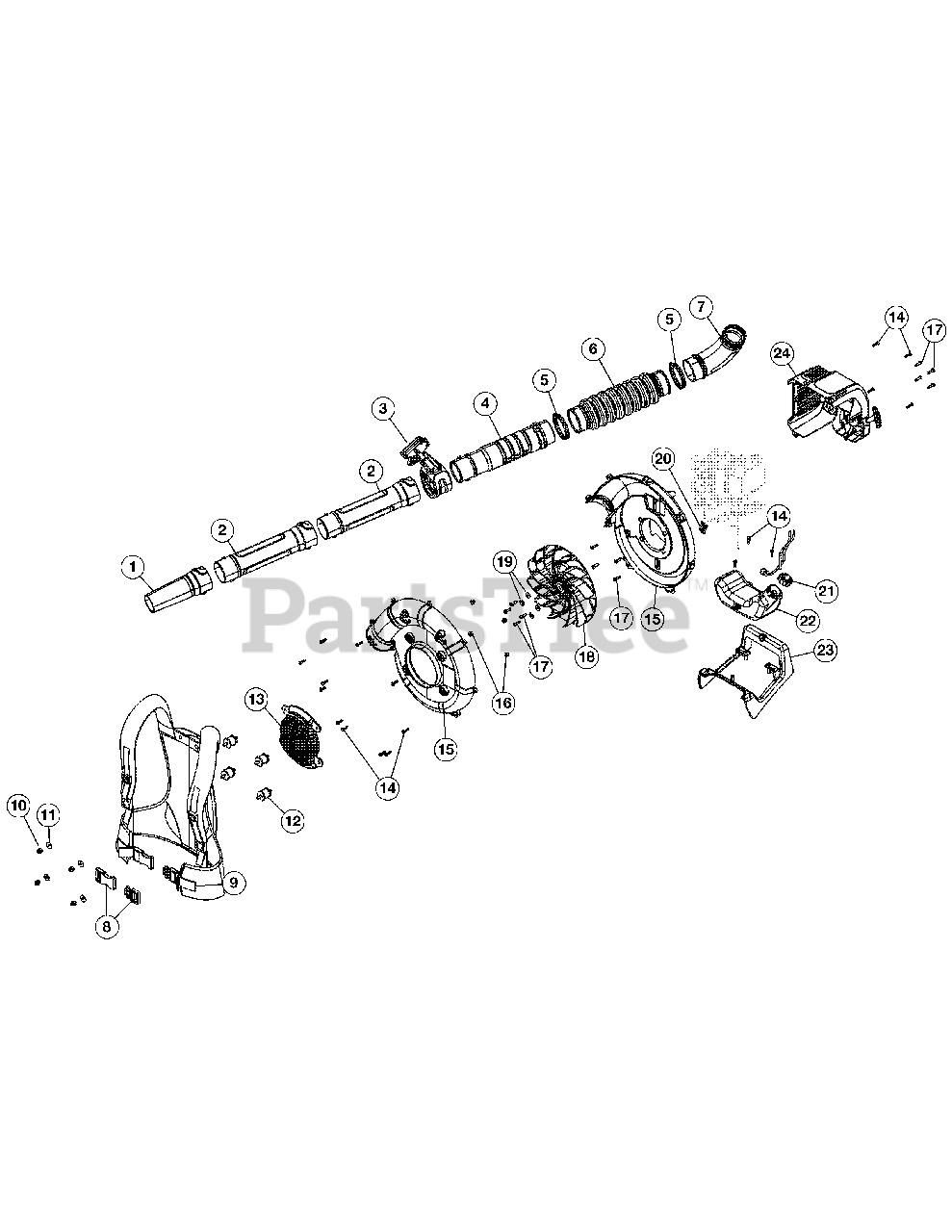

General Assembly Parts Diagram

  • Title

1

MTD 753-05637

Nozzle
(Superseded to 753-06000)

$14.99

$

Usually ships in 3-6 days

0

2

MTD 753-05638

Lower Blower Tube
(Superseded to 753-05993)

$

$

Not available

3

MTD 753-05652

Throttle Grip Assembly

$

$

Not available

4

MTD 753-05639

Upper Blower Tube
(Superseded to 753-05993)

$

$

Not available

5

MTD 753-05640

Clamp
(Superseded to 726-04080)

$12.99

$

In Stock, only 4 left!

0

6

MTD 753-05641

Flex Tube

$33.99

$

In Stock, only 3 left!

0

7

MTD 753-05642

Elbow Tube

$

$

Not available

8

MTD 753-05655

Harness Clip
(Superseded to 731-06191)

$15.99

$

Usually ships in 3-6 days

0

9

MTD 753-05645

Harness

Note: (Incl. Ref. No. 8)

$114.99

$

Usually ships in 3-6 days

0

10

MTD 753-05647

Nut
(Superseded to 912-0442)

$

$

Not available

11

MTD 753-05646

Spacer
(Superseded to 750-04929)

$4.99

$

In Stock, only 4 left!

0

12

MTD 753-05648

Insulator Mount

$15.99

$

Usually ships in 3-6 days

0

13

MTD 753-05649

Intake Cover

$7.99

$

In Stock, only 1 left!

0

14

MTD 753-04595

Screw
(Superseded to 710-04194)

$4.49

$

In Stock, Qty 20+

0

15

MTD 753-05658

Impeller Housing Assembly

$83.99

$

Usually ships in 3-6 days

0

16

MTD 791-180050

Nut
(Superseded to 712-0324)

$3.99

$

In Stock, only 4 left!

0

17

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

18

MTD 753-05657

Impeller
(Superseded to 753-05989)

Note: (Incl. Ref. No. 17 & 19)

$28.99

$

Usually ships in 3-6 days

0

19

MTD 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

20

MTD 753-05661

Throttle Retaining Clip
(Superseded to 731-06074)

$4.99

$

Usually ships in 3-6 days

0

21

MTD 753-05289

Fuel Cap

$24.99

$

In Stock, Qty 7

0

22

MTD 753-05662

Fuel Tank Assembly

Note: (Incl. Ref. No. 21)

$

$

Not available

23

MTD 753-05663

Stand

$19.99

$

In Stock, only 4 left!

0

24

MTD 753-05736

Engine Cover Assembly
(Superseded to 753-06654)

$24.99

$

Usually ships in 3-6 days

0
