316.794802 (41CR4BPG799) - Craftsman Blower (Sears) Engine Assembly Parts Diagram

Blower

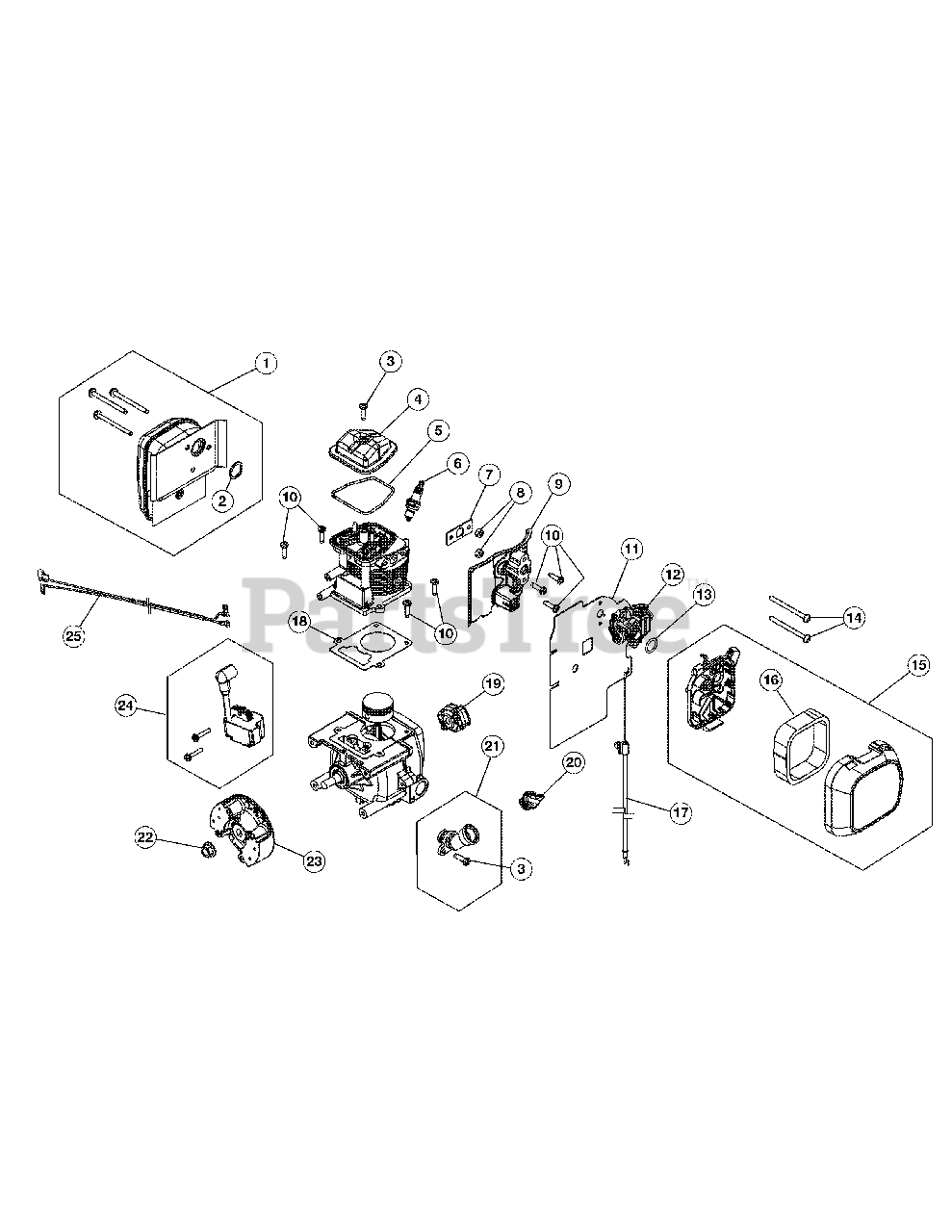

Engine Assembly Parts Diagram

  • Title

1

MTD 753-05669

Muffler Assembly (Incl. Ref No. 2)

$40.99

$

Usually ships in 3-6 days

0

2

MTD 753-05670

Muffler Gasket

$9.99

$

Usually ships in 3-6 days

0

3

MTD 710-04604

Screw

$3.99

$

In Stock, Qty 12

0

4

MTD 753-05671

Rocker Cover

$12.99

$

Usually ships in 3-6 days

0

5

MTD 753-05672

Rocker Cover O-Ring

$9.99

$

In Stock, only 2 left!

0

6

MTD 794-00043

Spark Plug
(Superseded to 794-00082)

$4.49

$

In Stock, Qty 20+

0

7

MTD 753-05673

Insulator Gasket

$9.99

$

Usually ships in 3-6 days

0

8

MTD 712-04099

Nut

$6.49

$

In Stock, only 1 left!

0

9

MTD 753-05674

Insulator

$14.99

$

Usually ships in 3-6 days

0

10

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

11

MTD 753-05675

Carburetor Gasket

$16.99

$

In Stock, only 1 left!

0

12

MTD 753-05676

Carburetor
(Superseded to 753-05676A)

$29.99

$

Usually ships in 3-6 days

0

13

MTD 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-04517

Screw

$4.99

$

In Stock, only 4 left!

0

15

MTD 753-05852

Air Cleaner Assembly (Incl. Ref No. 16)

$24.99

$

In Stock, Qty 5

0

16

MTD 753-05677

Air Filter

$4.49

$

In Stock, Qty 12

0

17

MTD 753-05970

Throttle Cable

$15.99

$

In Stock, only 1 left!

0

18

MTD 753-05681

Cylinder Gasket

$9.49

$

Usually ships in 3-6 days

0

19

MTD 753-05635

Pawl Assembly

$

$

Not available

20

MTD 753-05400

Oil Plug
(Superseded to 753-05408)

$27.99

$

In Stock, only 1 left!

0

21

MTD 753-05682

Oil Fill Tube (Incl. Ref No. 3)

$9.49

$

In Stock, only 1 left!

0

22

MTD 712-04137

Nut

$6.49

$

In Stock, only 3 left!

0

23

MTD 753-05688

Flywheel Asssembly

$42.99

$

Usually ships in 3-6 days

0

24

MTD 753-06003

Module Assembly

$39.99

$

Usually ships in 3-6 days

0

25

MTD 753-05690

Lead Wire

$17.99

$

Usually ships in 3-6 days

0

MTD 753-05974

Short Block Assembly
(Superseded to 753-08026)

Note: Not Shown

$136.99

$

In Stock, only 2 left!

0

MTD 753-05297

Spark Arrestor

Note: Not Shown

$28.99

$

Usually ships in 3-6 days

0
