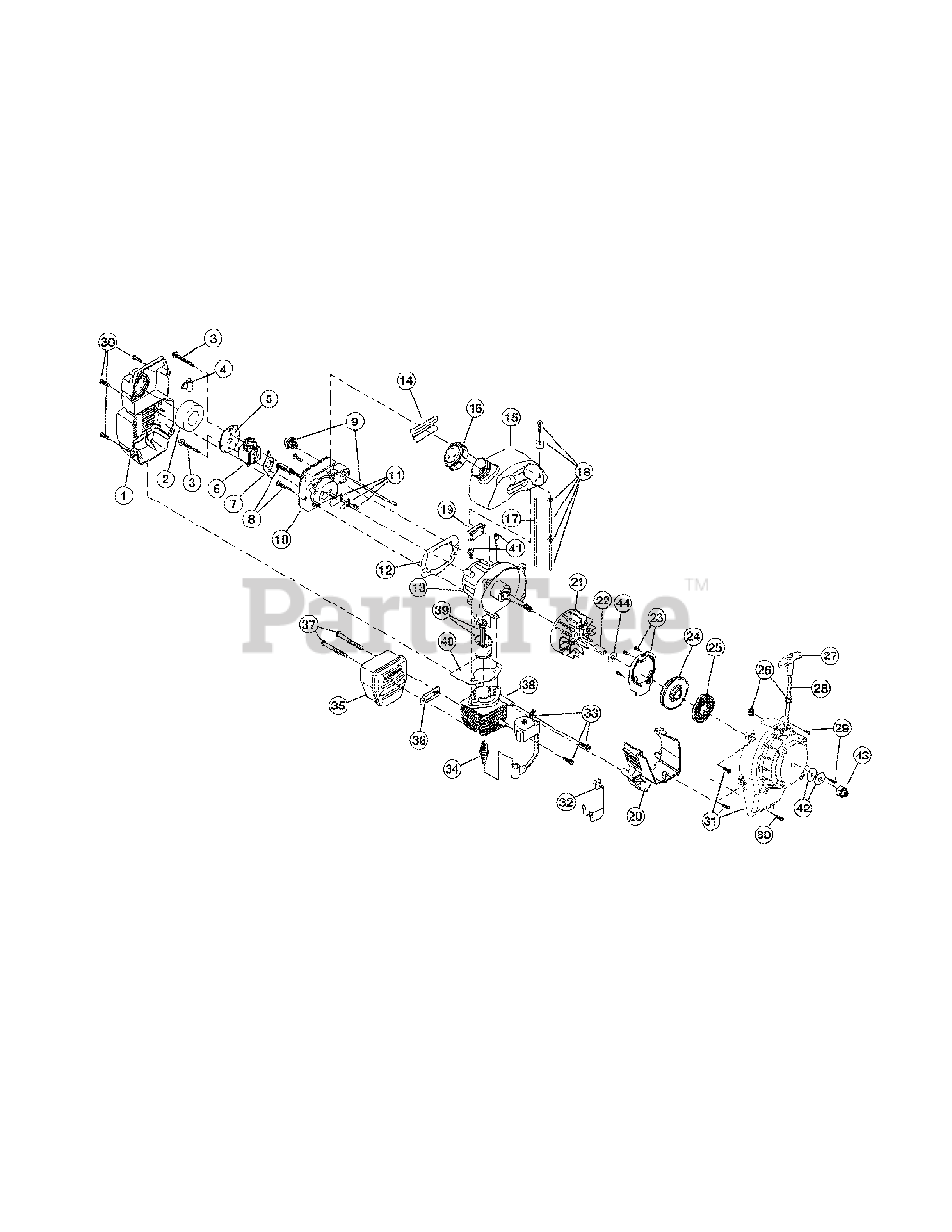

316.794970 (41AS320G799) - Craftsman Blower (Sears) Engine Parts Parts Diagram

Blower

Engine Parts Parts Diagram

  • Title

1

MTD 753-04810

Muffler Cover Assembly (includes 2 & 30)

$

$

Not available

2

MTD 791-180350B

Air Cleaner Filter

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw

$

$

Not available

4

MTD 753-04227

Choke Knob

$

$

Not available

5

MTD 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

6

MTD 753-04807

Carburetor Assembly (includes 7 & 18)

$87.99

$

Usually ships in 3-6 days

0

7

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

MTD 791-683974B

Primer & Hose Assembly

$21.99

$

In Stock, Qty 20+

0

10

MTD 753-1196

Carb Mount Assembly (includes 8, 11 & 12)

$

$

Not available

11

MTD 791-684451

Reed Assembly

$

$

Not available

12

MTD 753-1208

Carburetor Mount Gasket

$15.99

$

In Stock, only 3 left!

0

13

MTD 753-04747

Crankcase Service Assembly (includes 8)

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 753-04310

Fuel Tank Assembly (includes 16-18)

$

$

Not available

16

MTD 791-181803

Fuel Cap

$

$

Not available

17

MTD 791-181086

Fuel Return Line

$6.99

$

In Stock, Qty 20+

0

18

MTD 791-682039

Fuel Line Assembly

$15.99

$

In Stock, Qty 20+

0

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

MTD 753-04409

Shroud Extension (includes 30)
(Superseded to 753-05091)

$17.99

$

Usually ships in 3-6 days

0

21

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

22

MTD 753-04748

Spacer
(Superseded to 750-04260)

$8.99

$

Usually ships in 3-6 days

0

23

MTD 753-04705

Pulley Retainer

$

$

Not available

24

MTD 753-04459

Recoil Pulley Assembly (includes 28 & 44)
(Superseded to 753-04823)

$30.99

$

In Stock, Qty 9

0

25

MTD 753-04286

Recoil Spring

$24.99

$

In Stock, Qty 6

0

26

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

27

MTD 753-05011

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

28

MTD 791-613103

Rope

$9.99

$

In Stock, only 3 left!

0

29

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

30

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 17

0

31

MTD 753-05010

Starter Housing Assembly (includes 23-30 & 44)

$

$

Not available

32

MTD 791-182402

Wire Lead

$12.99

$

Usually ships in 3-6 days

0

33

MTD 753-05012

Module Assembly

$74.99

$

Usually ships in 3-6 days

0

34

MTD 791-610311B

Spark Plug

$13.99

$

In Stock, Qty 8

0

35

MTD 753-04618

Muffler Assembly (includes 36 & 37)
(Superseded to 753-05169)

$104.99

$

Usually ships in 3-6 days

0

36

MTD 753-04619

Exhaust Gasket

$8.49

$

In Stock, only 3 left!

0

37

MTD 753-04620

Muffler Mounting Bolt Set
(Superseded to 710-04188A)

$3.99

$

Usually ships in 3-6 days

0

38

MTD 753-04814

Cylinder Assembly (includes 40 & 41)

$78.99

$

In Stock, only 1 left!

0

39

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

40

MTD 753-04182

Cylinder Gasket

$15.99

$

Usually ships in 3-6 days

0

41

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

42

MTD 791-182396

Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

43

MTD 791-181524

Crankshaft Extension

$

$

Not available

44

MTD 753-04288

Palnut

$9.99

$

In Stock, only 1 left!

0

MTD 753-04689

Spark Arrestor (NOT SHOWN)

$

$

Not available

MTD 753-1209

Piston Ring Set (NOT SHOWN)

$49.99

$

Usually ships in 3-6 days

0

MTD 753-04924

Short Block Assembly(includes 8, 13, 34 & 38-41) (NOT SHOWN)

$

$

Not available
