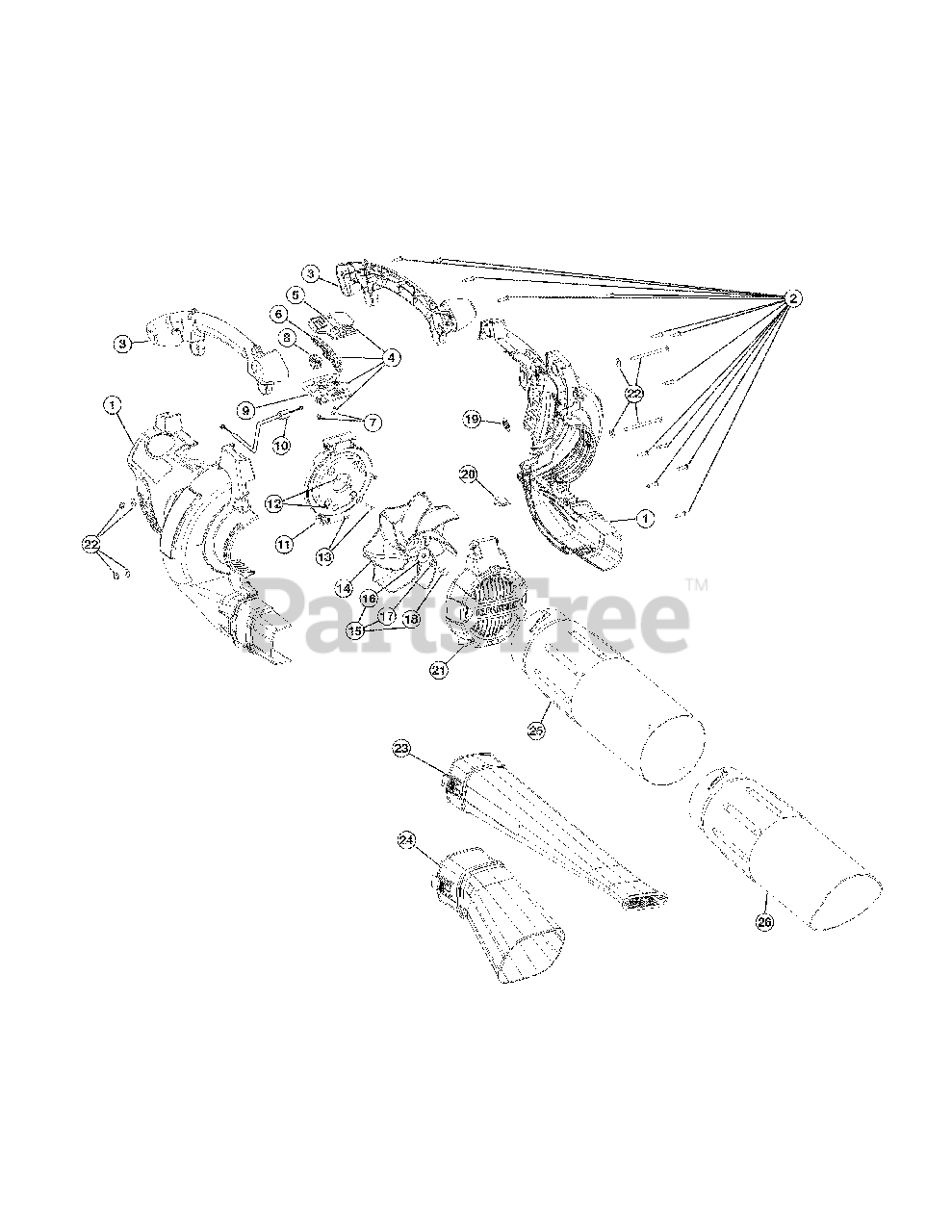

316.794970 (41AS320G799) - Craftsman Blower (Sears) Housing Parts Parts Diagram

Blower

Housing Parts Parts Diagram

  • Title

1

MTD 753-05046

Engine Cover Assm (includes 2)

$

$

Not available

2

MTD 791-181345

Screw

$3.99

$

In Stock, Qty 18

0

3

MTD 753-05047

Handle Assm (includes 2)

$26.99

$

In Stock, only 3 left!

0

4

MTD 753-05013

Throttle control Assm (includes 5-9)
(Superseded to 753-05013A)

$

$

Not available

5

MTD 791-182420

Upper Throttle Control Plate
(Superseded to 753-05013A)

$

$

Not available

6

MTD 753-05014

Throttle Control Lever
(Superseded to 753-05013A)

$

$

Not available

7

MTD 791-182423

Screw

$

$

Not available

8

MTD 791-182405

Rocker Switch Assm

$9.99

$

In Stock, Qty 20+

0

9

MTD 791-182422

Lower Throttle Control Plate
(Superseded to 753-05013A)

$

$

Not available

10

MTD 791-00049

Throttle Cable

$

$

Not available

11

MTD 753-04809

Engine Mount Plate (includes 12 & 13)

$

$

Not available

12

MTD 791-182409

Washer

$4.49

$

In Stock, Qty 5

0

13

MTD 753-04755

Screw
(Superseded to 710-04215A)

$4.49

$

Usually ships in 3-6 days

0

14

MTD 753-04596

Impeller Blade
(Superseded to 731-04275)

$32.99

$

In Stock, Qty 5

0

15

MTD 753-04482

Impeller Hardware (includes 16-18)

$9.49

$

In Stock, only 1 left!

0

16

MTD 753-04833

Washer
(Superseded to 736-04107)

$4.49

$

In Stock, only 1 left!

0

17

MTD 753-04834

Lock Washer
(Superseded to 736-04110A)

$4.99

$

Usually ships in 3-6 days

0

18

MTD 791-182414

Bolt

$4.49

$

Usually ships in 3-6 days

0

19

MTD 753-04456

Vacuum Door Spring

$

$

Not available

20

MTD 753-04455

Vacuum Door Lock
(Superseded to 732-04092A)

$9.49

$

Usually ships in 3-6 days

0

21

MTD 753-05015

Vacuum Door
(Superseded to 731-05212)

$13.99

$

Usually ships in 3-6 days

0

22

MTD 791-182424

Mounting Plate Hardware

$

$

Not available

23

MTD 753-05016

Blower Tube

$

$

Not available

24

MTD 791-182477

Vacuum Bag Adaptor

$26.99

$

Usually ships in 3-6 days

0

25

MTD 753-05017

Upper Vacuum Tube
(Superseded to 791-180466)

$

$

Not available

26

MTD 791-180467

Lower Vacuum Tube

$35.99

$

In Stock, Qty 5

0

MTD 791-612930

Cable Tie (NOT SHOWN)

$10.99

$

Usually ships in 3-6 days

0

MTD 753-04458

Vacuum Bag Assm (includes Bag & Cable Tie) (NOT SHOWN)

$50.99

$

In Stock, only 2 left!

0

MTD 791-682075B

Shoulder Strap (NOT SHOWN)

$36.99

$

Usually ships in 3-6 days

0
