316.794991 (41BR322G799) - Craftsman Blower (Sears) General Assembly Parts Diagram

Blower

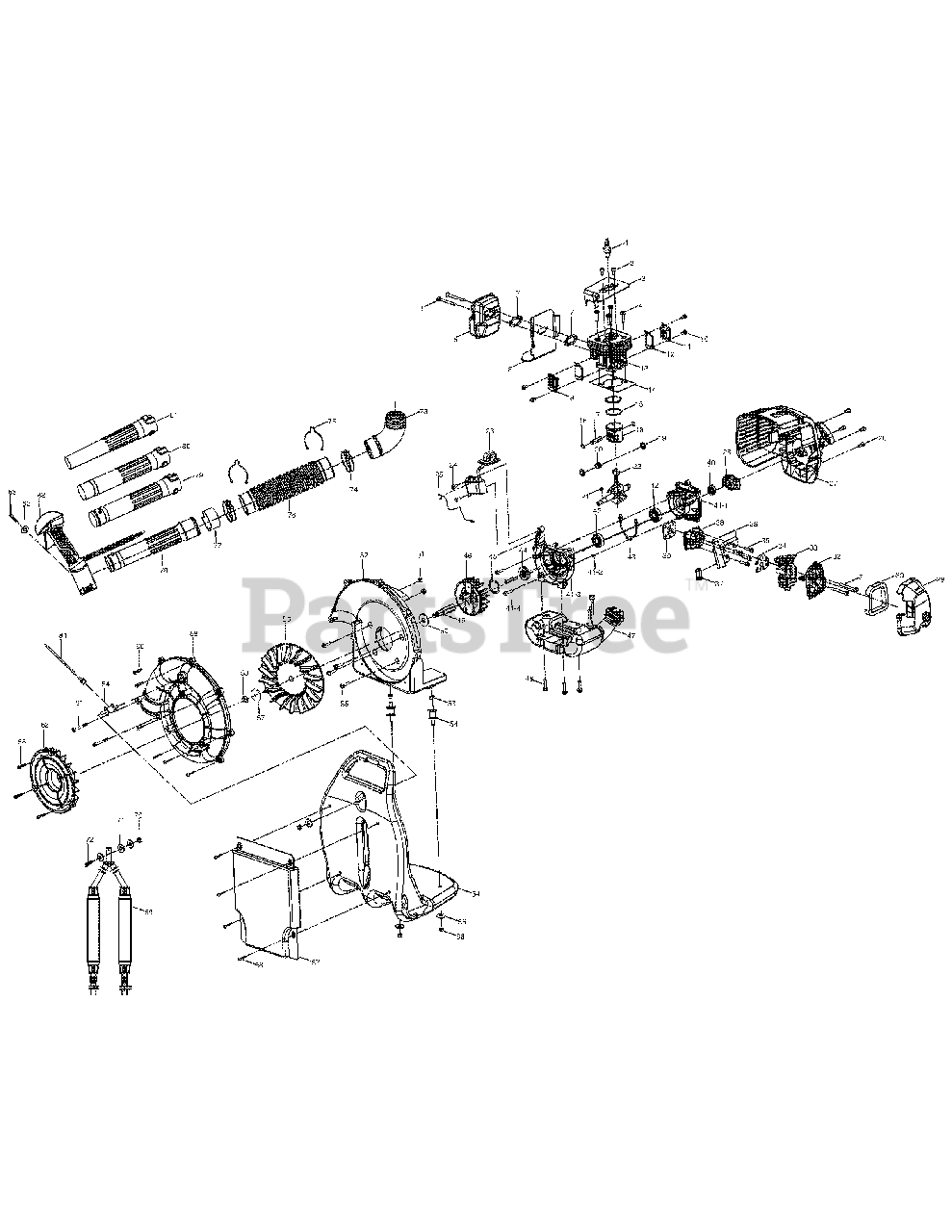

General Assembly Parts Diagram

  • Title

1

MTD 9295-310801

SPARK PLUG

$

$

Not available

2

MTD 9SGEB-05-10

SCREW

$

$

Currently unavailable

3

MTD 9211-320601

PLATE, SPARK SIDE

$

$

Currently unavailable

4

MTD 9SRCB-05-22

SCREW
(Superseded to MC-9SRCB-05-22)

$

$

Not available

5

MTD 9SXMBJ05-50

SCREW

$

$

Currently unavailable

6

MTD 9228-334503

MUFFLER ASS'Y

$

$

Currently unavailable

7

MTD 9014-GP0102

MUFFLER GASKET

$

$

Currently unavailable

8

MTD 9211-334501

MUFFLER PLATE

$

$

Currently unavailable

9

MTD 9017-334501

COVER, FLYWHEEL SIDE

$

$

Currently unavailable

10

MTD 9SGEB-04-10

SCREW

$

$

Currently unavailable

11

MTD 9017-334502

COVER, STARTER SIDE

$

$

Currently unavailable

12

MTD 9014-334507

GASKET

$

$

Currently unavailable

13

MTD 9292-334501F

CYLINDER

$

$

Currently unavailable

14

MTD 9014-334501

GASKET

$

$

Currently unavailable

15

MTD 9189-334501

PISTON RING

$

$

Currently unavailable

16

MTD 9131-334501

CIRCLIP

$

$

Currently unavailable

17

MTD 9115-334501

PISTON PIN

$

$

Currently unavailable

18

MTD 9290-334501

PISTON

$

$

Currently unavailable

19

MTD 9067-334501

AXIS COVER

$

$

Currently unavailable

20

MTD 9NR-KV9129.8

NEEDLE BEARING

$

$

Currently unavailable

21

MTD 6221-830301

KEY

$

$

Not available

22

MTD 9228-334502

CRANK/ROD ASS'Y

$

$

Currently unavailable

23

MTD 9288-320601-CH

IGNITION COIL

$

$

Currently unavailable

24

MTD 9SGEB-05-20

SCREW
(Superseded to MC-9SGEB-05-20)

$

$

Not available

25

MTD 9010-332102

COIL WIRE

$

$

Currently unavailable

26

MTD 9SGKB-05-12.5

SCREW
(Superseded to 710-04507)

$

$

Not available

27

MTD 9228-320602

STARTER HOUSING ASS'Y

$

$

Currently unavailable

28

MTD 9228-MD0107

PAWLS ASS'Y

$

$

Not available

29

MTD 9228-334522

FILTER ASS'Y

$

$

Currently unavailable

30

MTD 9183-334501

FILTER

$

$

Currently unavailable

31

MTD 9SGEB-05-52

SCREW

$

$

Currently unavailable

32

MTD 9228-334520

FILTER ASS'Y

$

$

Currently unavailable

33

MTD 9287-334501

CARBURETOR

$

$

Currently unavailable

34

MTD 9014-334505

CARBURETOR GASKET

$

$

Currently unavailable

35

MTD 9SKKB-05-19

SCREW
(Superseded to MC-9SKKB-05-19)

$

$

Not available

36

MTD 9211-334503

PLATE

$

$

Currently unavailable

37

MTD 9012-334501

GROMMET

$

$

Currently unavailable

38

MTD 9072-334501

INSULATOR

$

$

Currently unavailable

39

MTD 9014-334506

INSULATOR GASKET

$

$

Currently unavailable

40

MTD 9157-332101

SEAL
(Superseded to MC-9157-332101)

$

$

Not available

41

MTD 9228-334501

CRANKCASE ASS'Y

$

$

Currently unavailable

41-1

MTD 9151-334502A

CRANKCASE, STARTER SIDE
(Superseded to MC-9228-334501)

$

$

Not available

41-2

MTD 9PA-03-08S

PIN

$

$

Not available

41-3

MTD 9151-334501A

CRANKCASE, FLYWHEEL SIDE
(Superseded to MC-9228-334501)

$

$

Not available

41-4

MTD 9SGEB-05-20

SCREW
(Superseded to MC-9SGEB-05-20)

$

$

Not available

42

MTD 9DB-620101

BEARING

$

$

Not available

43

MTD 9014-334502

GASKET, CRANKCASE SIDE

$

$

Currently unavailable

44

MTD 9157-334501

SEAL

$

$

Currently unavailable

45

MTD 9CB-32

C RING
(Superseded to MC-9CB-32)

$

$

Not available

46

MTD 9169-334501

FLYWHEEL

$

$

Currently unavailable

47

MTD 9228-334506

FUEL TANK ASS'Y

$

$

Currently unavailable

48

MTD 9SKKBY05-18

SCREW
(Superseded to MC-9SKKBY05-18)

$

$

Not available

49

MTD 9127-320601

CONNECT AXIS

$

$

Currently unavailable

50

MTD 9WFZ-12.1-30

WASHER
(Superseded to MC-9WFZ-12.1-30)

$

$

Not available

51

MTD 6NGZ-05

NUT
(Superseded to MC-6NGZ-05)

$

$

Not available

52

MTD 9038-320601

SCREW HOUSING

$

$

Currently unavailable

53

MTD 6NDE-06

NUT
(Superseded to MC-6NDE-06)

$

$

Not available

54

MTD 9012-320601

VIBRO-ISOLATING RUBBER

$

$

Not available

55

MTD 9SRCBM05-30

SCREW

$

$

Not available

56

MTD 9151-320601

IMPELLER
(Superseded to MC-9151-320601)

$72.99

$

Usually ships in 3-6 days

0

57

MTD 9WFZ-8.4-32

WASHER
(Superseded to MC-9WFZ-8.4-32)

$

$

Not available

58

MTD 9NAC-08

NUT
(Superseded to MC-9NAC-08)

$

$

Not available

59

MTD 9038-320602

SCREW HOUSING
(Superseded to MC-9038-320602)

$

$

Not available

60

MTD 9SKKBY8/16-0.75

SCREW
(Superseded to 710-04232)

$5.49

$

In Stock, only 2 left!

0

61

MTD 9SRCB-05-75

SCREW
(Superseded to MC-9SRCB-05-75)

$

$

Not available

62

MTD 9017-320601

COVER

$

$

Not available

63

MTD 9SKKBB05-18

SCREW
(Superseded to 710-04232)

$5.49

$

In Stock, only 2 left!

0

64

MTD 9004-320601

FRAME
(Superseded to MC-9004-320601)

$

$

Not available

65

MTD 9WFZ-06-18

WASHER

$

$

Not available

66

MTD 9NGZ-06

NUT

$

$

Not available

67

MTD 9014-320601

CUSHION BACK

$

$

Currently unavailable

68

MTD 9RGB7.14-16.27

RIVET RIBBED

$

$

Currently unavailable

69

MTD 9149-320601

HARNESS

$

$

Not available

70

MTD 6NGZ-08

NUT

$

$

Not available

71

MTD 9WFZ-08-22

WASHER

$

$

Not available

72

MTD 9SDCB-08-16

SCREW

$

$

Not available

73

MTD 9186-320601

ELBOW PIPE

$

$

Not available

74

MTD 9036-320601

HOSEBEND
(Superseded to MC-9036-320601)

$

$

Not available

75

MTD 9036-320602

WIRE CLAMP

$

$

Not available

76

MTD 9186-320602

FLEX PIPE
(Superseded to MC-9186-320602)

$

$

Not available

77

MTD 9189-320601

ACTIVE RING

$

$

Not available

78

MTD 9186-320605

BASE PIPE

$

$

Not available

79

MTD 9186-320604

MIDDLE PIPE

$

$

Not available

80

MTD 9186-320606

END PIPE (56MM)

$

$

Not available

81

MTD 9186-320603

END PIPE (40MM)

$

$

Not available

82

MTD 9228-320606

THROTTLE LEVER ASS'Y

$

$

Currently unavailable

83

MTD 9WFB-4.5-13

WASHER

$

$

Currently unavailable

84

MTD 6032-150-02

LIGATE TAPE

$

$

Not available
