31600 (732) - Toro 32" Snow Thrower (SN: 000000001 - 000999999) (1970) ENGINE ASSEMBLY Parts Diagram

32" Snow Thrower

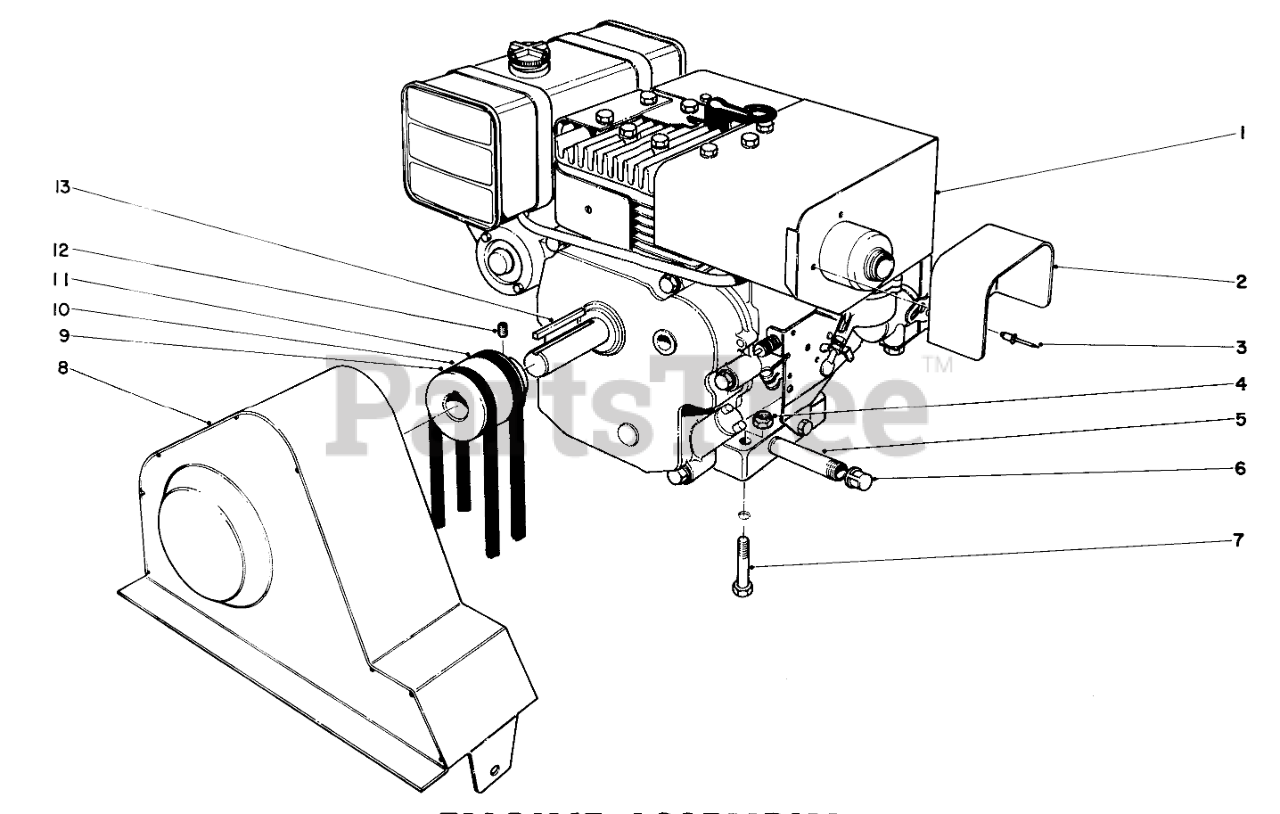

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 221-334

Engine (Recoil)

$

$

Currently unavailable

Toro 221-348

Engine (Electric)

Note: Not illustrated

$

$

Currently unavailable

2

Toro 5-9100

Shield, Muffler

$

$

Currently unavailable

3

Toro 3290-284

.187 X 1/4 POP RIVET

$6.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 289-20

NIPPLE-PIPE

$

$

Not available

6

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

7

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

8

Toro 6-0200

Belt Cover

$

$

Currently unavailable

9

Toro 5-9760

V-Belt
(Superseded to 17-6540)

$30.99

$

In Stock, Qty 5

0

10

Toro 5-9330

Pulley, Engine

$

$

Currently unavailable

11

Toro 5-9770

V-Belt, Drive

$

$

Not available

12

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

13

Toro 5-0930

KEY

$14.99

$

Usually ships in 3-6 days

0
