31600 (732) - Toro 32" Snow Thrower (SN: 000000001 - 000999999) (1970) Engine Model 170402 (recoil) Parts Diagram

32" Snow Thrower

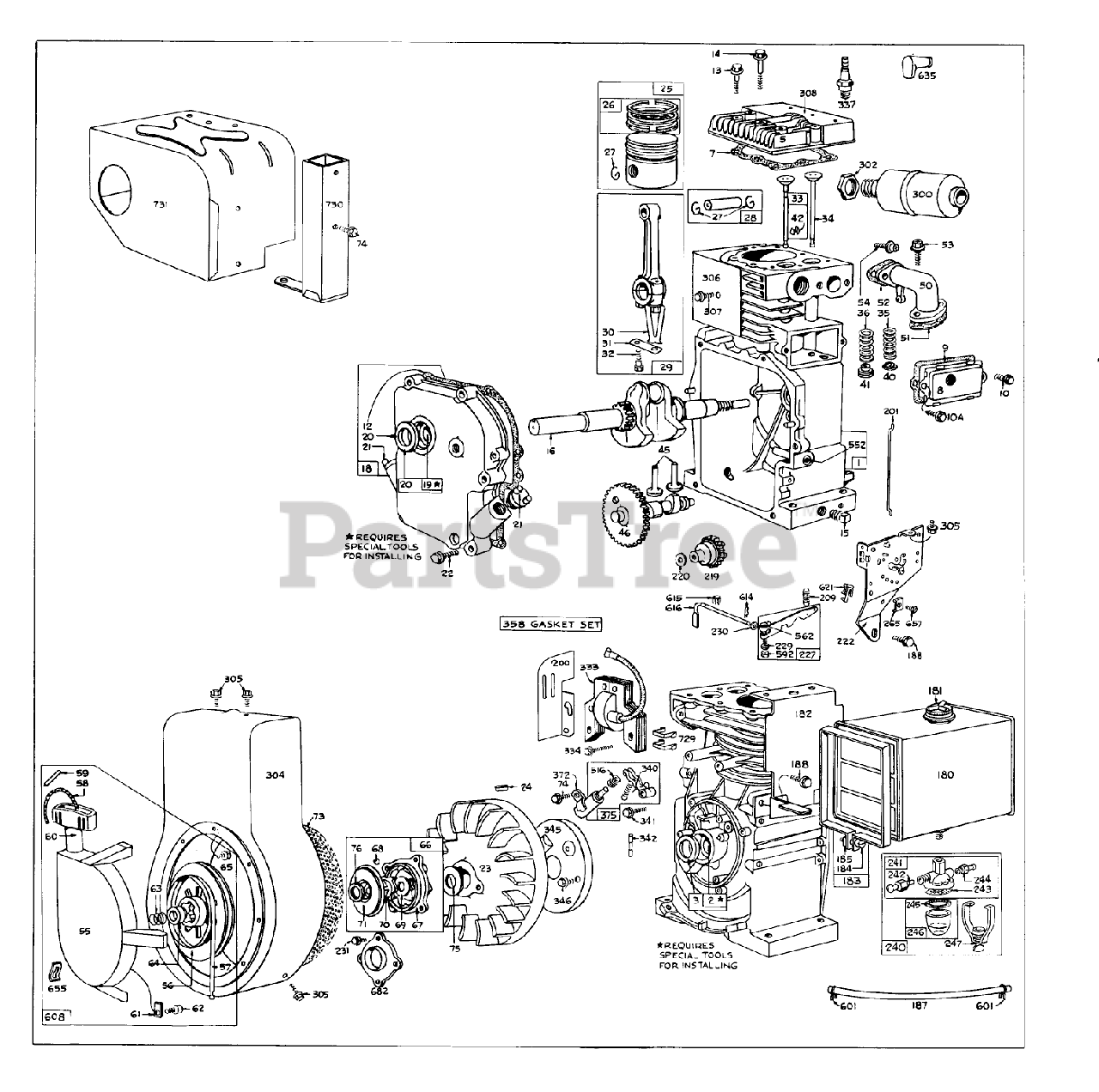

Engine Model 170402 (recoil) Parts Diagram

  • Title

1

Toro 390399

Cylinder Assembly

$

$

Currently unavailable

2

Toro 295962

Bushing-Cylinder

$

$

Currently unavailable

3

Toro 294606

Seal-Oil

$

$

Currently unavailable

5

Toro 211592

Head-CyIinder

$

$

Currently unavailable

7

Toro 270430

Gasket-Cylinder Hd.

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

8

Toro 390321

Breather Assembly

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

10A

Toro 93536

Screw

$

$

Currently unavailable

12

Toro 27750

Gasket-Crankcase Cover 1/64" Thick

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

Toro 27876

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

Toro 27877

33154A,55A,60A W/FO

Note: Included in Gasket Set-Part No. 299577

$3.23

$

Usually ships in 3-6 days

0

13

Toro 93210

Screw-Cylinder Head

$

$

Currently unavailable

14

Toro 93211

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 91084

Plug-Pipe

$

$

Currently unavailable

16

Toro 260315

Crankshaft

$

$

Currently unavailable

18

Toro 299167

Cover Assy.-Crankcase

$

$

Currently unavailable

19

Toro 295964

Bushing

$

$

Currently unavailable

20

Toro 298423

Seal-OiI

$

$

Currently unavailable

21

Toro 66768

Plug-Oil

$

$

Currently unavailable

22

Toro 93205

Screw-Sump Mtg. Sem

$

$

Currently unavailable

23

Toro 298260

Flywheel

$

$

Currently unavailable

24

Toro 61760

Key Flywheel

$

$

Currently unavailable

25

Toro 299573

Piston Assembly-Std.

$

$

Currently unavailable

Toro 299566

Piston Assy.-.010" O.S.

$

$

Currently unavailable

Toro 299567

Piston Assy.-.020" O.S.

$

$

Currently unavailable

Toro 299568

Piston Assembly .030" O.S. PISTON RING SETS: Note: For Chrome Piston Ring Set-std. size-order Part No. 299743.

$

$

Currently unavailable

26

Toro 299569

Ring Set-Piston-Std. Consists of:

$

$

Currently unavailable

Toro 299570

Yoke Bushing

$

$

Currently unavailable

Toro 299571

Ring Set-Piston-.020" O.S. Consists of:

$

$

Currently unavailable

Toro 299572

Ring Set-Piston-.030" O.S. Consists of:

$

$

Currently unavailable

27

Toro 68546

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 295840

Assembly-Piston-Std

$

$

Currently unavailable

Toro 295841

Pin-Piston (.005" O.S.)

$

$

Currently unavailable

29

Toro 295838

Rod Assy.-Connecting

$

$

Currently unavailable

30

Toro 220837

Dipper-Connecting Rod

$

$

Not available

31

Toro 220811

Lock-Conn. Rod Screw

$

$

Not available

32

Toro 92659

Screw Conn. Rod

$

$

Currently unavailable

33

Toro 390419

Valve-Exhaust

$

$

Currently unavailable

34

Toro 261055

VaIve-Intake

$

$

Currently unavailable

35

Toro 65906

Spring-Valve

$

$

Currently unavailable

36

Toro 26828

Spring-Valve

$

$

Currently unavailable

40

Toro 221596

Retainer-Valve

$

$

Currently unavailable

41

Toro 292260

Retainer-Valve

$

$

Currently unavailable

42

Toro 93630

Retainer-Rotocoil

$

$

Currently unavailable

45

Toro 260933

Tappet-Valve

$

$

Currently unavailable

46

Toro 210728

Gear-Cam

$

$

Currently unavailable

50

Toro 210705

Elbow-Intake

$

$

Currently unavailable

51

Toro 65647

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

52

Toro 27828

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 299577

$

$

Currently unavailable

53

Toro 93128

Screw-Carburetor Mounting

$

$

Currently unavailable

54

Toro 93208

Screw-Sem

$

$

Currently unavailable

55

Toro 295272

Housing-Rewind Starter

$

$

Currently unavailable

56

Toro 295871

Pulley-Rewind

$

$

Currently unavailable

57

Toro 294303

Spring-Rewind

$

$

Currently unavailable

58

Toro 66564

Rope-Rewind Starter

$

$

Currently unavailable

59

Toro 230228

Pin-Starter Grip

$

$

Currently unavailable

60

Toro 66728

See Supercession: 742562
(Superseded to 742562)

$

$

Not available

61

Toro 68848

Bumper-Starter Pulley

$

$

Currently unavailable

62

Toro 93254

Screw-Pulley Bumper Mtg.

$

$

Currently unavailable

63

Toro 260414

Spring

$

$

Currently unavailable

64

Toro 230543

Adapter

$

$

Currently unavailable

65

Toro 93106

Screw-Rewind Starter Housing Mounting

$

$

Currently unavailable

66

Toro 298798

Clutch Assy.-Rewind Starter

$

$

Currently unavailable

67

Toro 211383

Housing

$

$

Currently unavailable

68

Toro 63770

Ball

$

$

Currently unavailable

69

Toro 66718

Washer-Thrust

$

$

Currently unavailable

70

Toro 298799

Ratchet

$

$

Currently unavailable

71

Toro 221653

Washer

$

$

Currently unavailable

73

Toro 221796

Screen

$

$

Currently unavailable

74

Toro 93042

Screw

$

$

Currently unavailable

75

Toro 220865

Washer

$

$

Currently unavailable

76

Toro 68238

Washer

$

$

Currently unavailable

158

Toro 27590

Filter-Carburetor Drain

$

$

Currently unavailable

159

Toro 220521

Retainer, Carb. Drain Filter

$

$

Not available

180

Toro 290816

Tank Assy.,Fuel

$

$

Currently unavailable

181

Toro 297866

Cap-Fuel Tank

$

$

Currently unavailable

182

Toro 221935

Bracket-Fuel Tank

$

$

Currently unavailable

183

Toro 291367

Strap Assy, Fuel Tank

$

$

Currently unavailable

184

Toro 91257

Screw-Machine Fil. Hd.

$

$

Currently unavailable

185

Toro 90970

Nut-Square

$

$

Currently unavailable

187

Toro 299942

Pipe-Fuel

$

$

Currently unavailable

188

Toro 93535

Crew

$

$

Currently unavailable

200

Toro 221760

Guide-Air

$

$

Not available

201

Toro 260872

Link-Governor

$

$

Currently unavailable

209

Toro 260871

Spring-Governor

$

$

Currently unavailable

219

Toro 297656

Gear-Governor

$

$

Currently unavailable

220

Toro 221551

Washer-Thrust

$

$

Currently unavailable

222

Toro 299012

Plate-Governor Control

$

$

Currently unavailable

227

Toro 299165

Lever Assy.-Governor

$

$

Currently unavailable

229

Toro 220680

Washer

$

$

Currently unavailable

230

Toro 221559

Clamp-Casing

$

$

Currently unavailable

231

Toro 93064

Screw

$

$

Currently unavailable

240

Toro 295984

Filter Assembly-Fuel

$

$

Currently unavailable

241

Toro 296005

Cover Assembly-Fuel

$

$

Currently unavailable

242

Toro 295913

Valve-Fuel Shut-Off

$

$

Currently unavailable

243

Toro 22547

Screen-Fuel Filter

$

$

Currently unavailable

244

Toro 230318

Connector-Fuel

$

$

Currently unavailable

245

Toro 68477

Gasket-Fuel Filter Bowl

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

246

Toro 298683

Bowl-Fuel Filter

$

$

Currently unavailable

247

Toro 99665

Yoke-Fuel Filter

$

$

Currently unavailable

265

Toro 221535

Clamp-Casing

$

$

Currently unavailable

300

Toro 294599

Muffler-Exhaust

$

$

Currently unavailable

301

Toro 91245

Nipple-Exhaust

$

$

Currently unavailable

302

Toro 91242

Locknut-Muffler

$

$

Currently unavailable

304

Toro 390497

Housing-Blower

$

$

Currently unavailable

305

Toro 93158

Screw

$

$

Currently unavailable

306

Toro 221898

Screw-Cylinder

$

$

Currently unavailable

307

Toro 93163

Screw

$

$

Currently unavailable

308

Toro 221901

Cover-Cylinder Head

$

$

Currently unavailable

333

Toro 298968

Armature Assembly

$

$

Currently unavailable

334

Toro 93381

Screw

$

$

Currently unavailable

337

Toro 298809

Plug Spark

$

$

Currently unavailable

340

Toro 26018

Spring Breaker Arm

$

$

Currently unavailable

341

Toro 93381

Screw

$

$

Currently unavailable

342

Toro 65704

Plunger

$

$

Currently unavailable

345

Toro 222170

Cover-Breaker Point

$

$

Currently unavailable

346

Toro 93014

Screw

$

$

Currently unavailable

356

Toro 299500

Wire-Ground

$

$

Currently unavailable

358

Toro 299577

Gasket Set

$

$

Currently unavailable

372

Toro 220477

Camp-Condenser

$

$

Currently unavailable

375

Toro 294628

Set

$

$

Currently unavailable

Toro 294628

Set

$

$

Currently unavailable

Toro 65704

Plunger

$

$

Currently unavailable

Toro 61760

Key Flywheel

$

$

Currently unavailable

552

Toro 230843

Bushing-Governor Shaft

$

$

Currently unavailable

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 90356

Nut

$

$

Currently unavailable

601

Toro 93053

Clamp-Hose

$

$

Currently unavailable

608

Toro 295001

Starter Assy, Rewind

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

616

Toro 230842

Crank-Governor

$

$

Currently unavailable

621

Toro 297472

Switch-Stop

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

655

Toro 221014

Anchor Spring

$

$

Currently unavailable

657

Toro 93496

Screw

$

$

Currently unavailable

682

Toro 211516

Shield

$

$

Currently unavailable

729

Toro 221907

CIip-Wire

$

$

Currently unavailable

730

Toro 299384

Stack-Air

$

$

Currently unavailable

731

Toro 390498

Hood-Snow

$

$

Currently unavailable
