31600 (732) - Toro 32" Snow Thrower (SN: 000000001 - 000999999) (1970) HANDLE AND CONTROL ASSEMBLY Parts Diagram

32" Snow Thrower

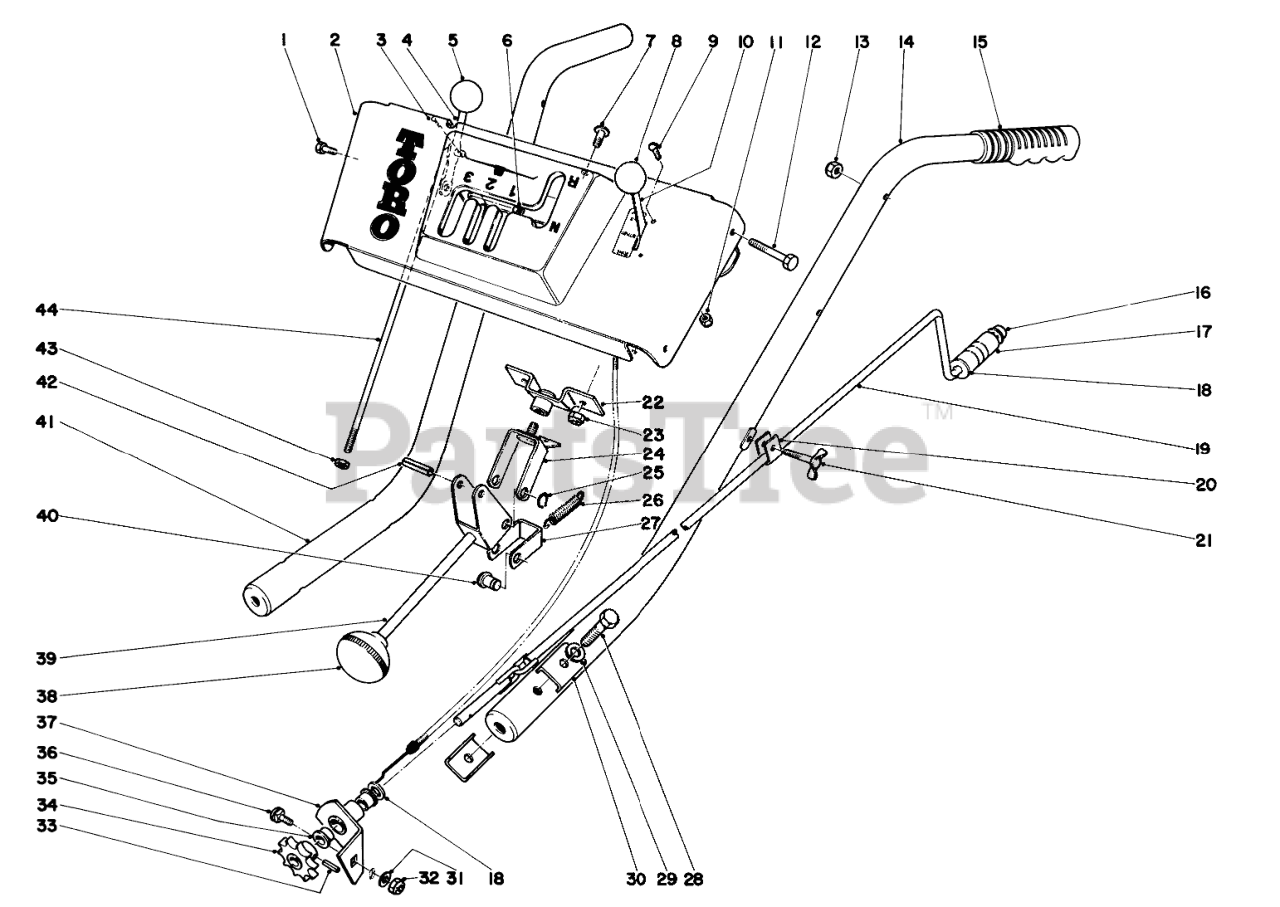

HANDLE AND CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 6-1230

Escutcheon Plate

$

$

Currently unavailable

3

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

4

Toro 5-7920

Control Wheel Clutch

$

$

Currently unavailable

5

Toro 3-0631

BALL-GRIP

$

$

Currently unavailable

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 3258-157

Screw, Machine

$

$

Not available

8

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

9

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

10

Toro 6-0440

Control Throttle

$

$

Currently unavailable

11

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 6-0850

Handle, Left

$

$

Currently unavailable

15

Toro 6-0450

Grip Handle
(Superseded to 74-1380)

$

$

Not available

16

Toro 3290-302

Speed Nut

$

$

Currently unavailable

17

Toro 6-0030

Chute Control Grip
(Superseded to 20-2060)

$

$

Not available

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 6-0070

Chute Control

$

$

Currently unavailable

20

Toro 5-9730

Clamp, Chute Control

$

$

Currently unavailable

21

Toro 32141-104

Thumb Screw

$

$

Currently unavailable

22

Toro 6-0710

Swivel Block

$

$

Currently unavailable

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 6-0730

Pivot Bracket

$

$

Currently unavailable

25

Toro 32120-3

Ring-Snap
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

26

Toro 6-8800

Spring Reverse

$

$

Currently unavailable

27

Toro 6-8790

U-Clip

$

$

Currently unavailable

28

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

30

Toro 6-0060

Stabilizer Handle

$

$

Currently unavailable

31

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3296-26

NUT-LOCK, NI

$3.99

$

Usually ships in 3-6 days

0

33

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

34

Toro 5-9940

Sprocket

$

$

Currently unavailable

35

Toro 256-116

BUSHING-FLANGE

$4.49

$

In Stock, Qty 11

0

36

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

37

Toro 5-9970

Chute Bracket (Incl. Ref. #35)

$

$

Currently unavailable

38

Toro 233-10

KNOB-LEVER

$61.99

$

Usually ships in 3-6 days

0

39

Toro 6-0680

Control Rod

$

$

Currently unavailable

40

Toro 6-8780

Pin Shift Lever

$

$

Currently unavailable

41

Toro 6-0830

Handle, Right

$

$

Currently unavailable

42

Toro 32121-42

PIN-ROLL

$2.99

$

In Stock, only 1 left!

0

43

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

44

Toro 5-7940

Upper Rod Wheel Clutch

$

$

Currently unavailable
