31624 (524) - Toro 24" Snow Thrower (SN: 004000001 - 004999999) (1974) ENGINE ASSEMBLY Parts Diagram

24" Snow Thrower

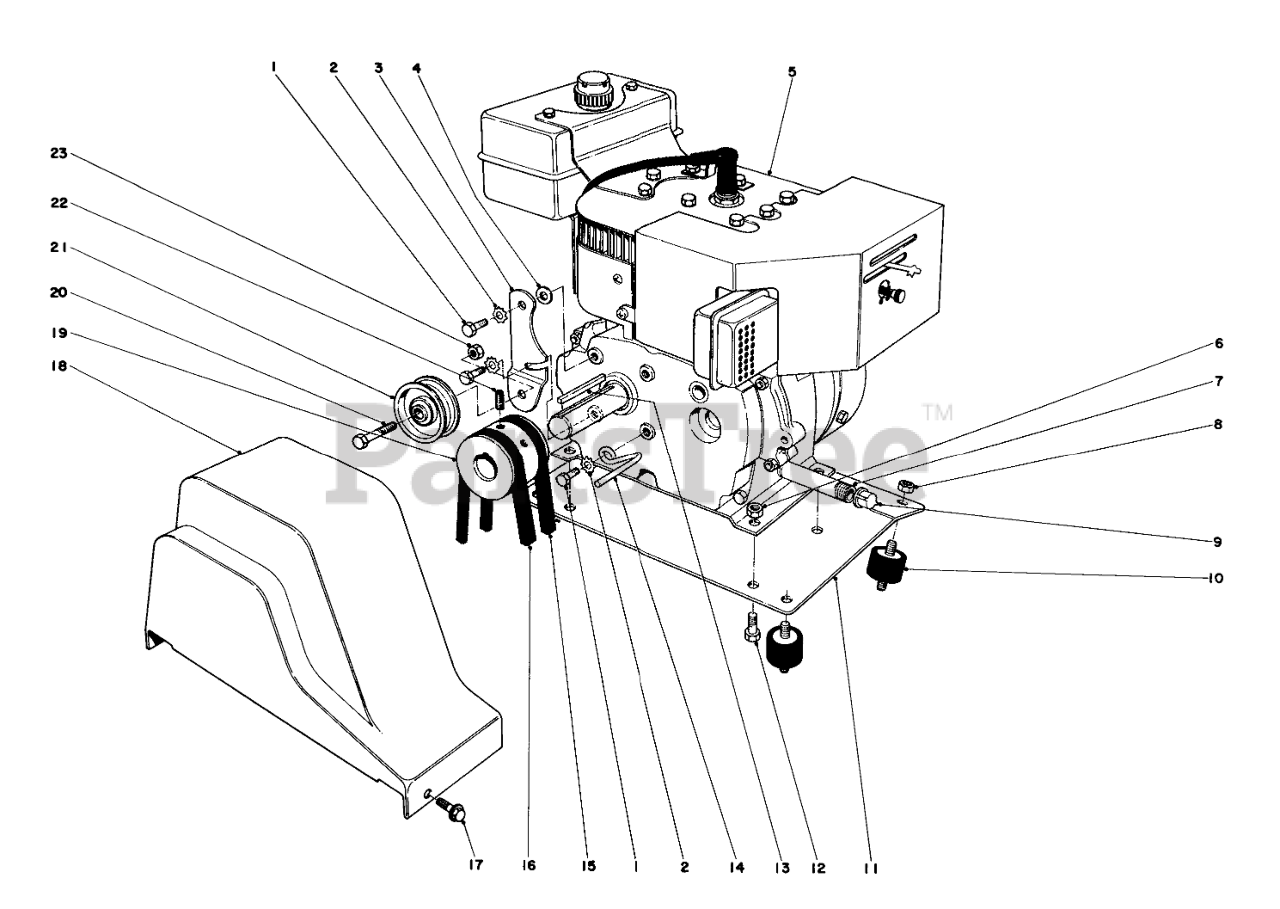

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

2

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

3

Toro 20-1800

ENGINE IDLER ARM

$

$

Not available

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 221-434

Engine

$

$

Currently unavailable

Toro 221-458

Engine (Model No. 31677)

Note: Not illustrated

$

$

Currently unavailable

6

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

7

Toro 289-34

NIPPLE-PIPE

$34.99

$

Usually ships in 3-6 days

0

8

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

9

Toro 288-2

CAP-PIPE

$16.99

$

In Stock, only 1 left!

0

10

Toro 20-3130

Engine Mount

$

$

Not available

11

Toro 20-1790

Engine Mounting Plate

$

$

Not available

12

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 5-0930

KEY

$14.99

$

Usually ships in 3-6 days

0

14

Toro 17-5530

BELT RETAINER

$

$

Not available

15

Toro 20-1820

V-BELT

$22.99

$

In Stock, only 2 left!

0

16

Toro 17-0850

V-Belt
(Superseded to 26-9670)

$25.99

$

In Stock, only 1 left!

0

17

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

18

Toro 20-1830

BELT GUARD

$

$

Not available

19

Toro 21-4100

ENGINE PULLEY

$

$

Not available

20

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

21

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0

22

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$12.99

$

Usually ships in 3-6 days

0

23

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

Toro 20-7100

Starter Kit Domestic (Optional)
(Superseded to 38-7590)

Note: Not illustrated

$

$

Not available

Toro 11-5700

Starter Kit (Canadian)
(Superseded to 38-7590)

Note: Not illustrated

$

$

Not available
