31625 (524) - Toro 24" Snow Thrower (SN: 005000001 - 005999999) (1975) Auger Assambly (continued) Parts Diagram

24" Snow Thrower

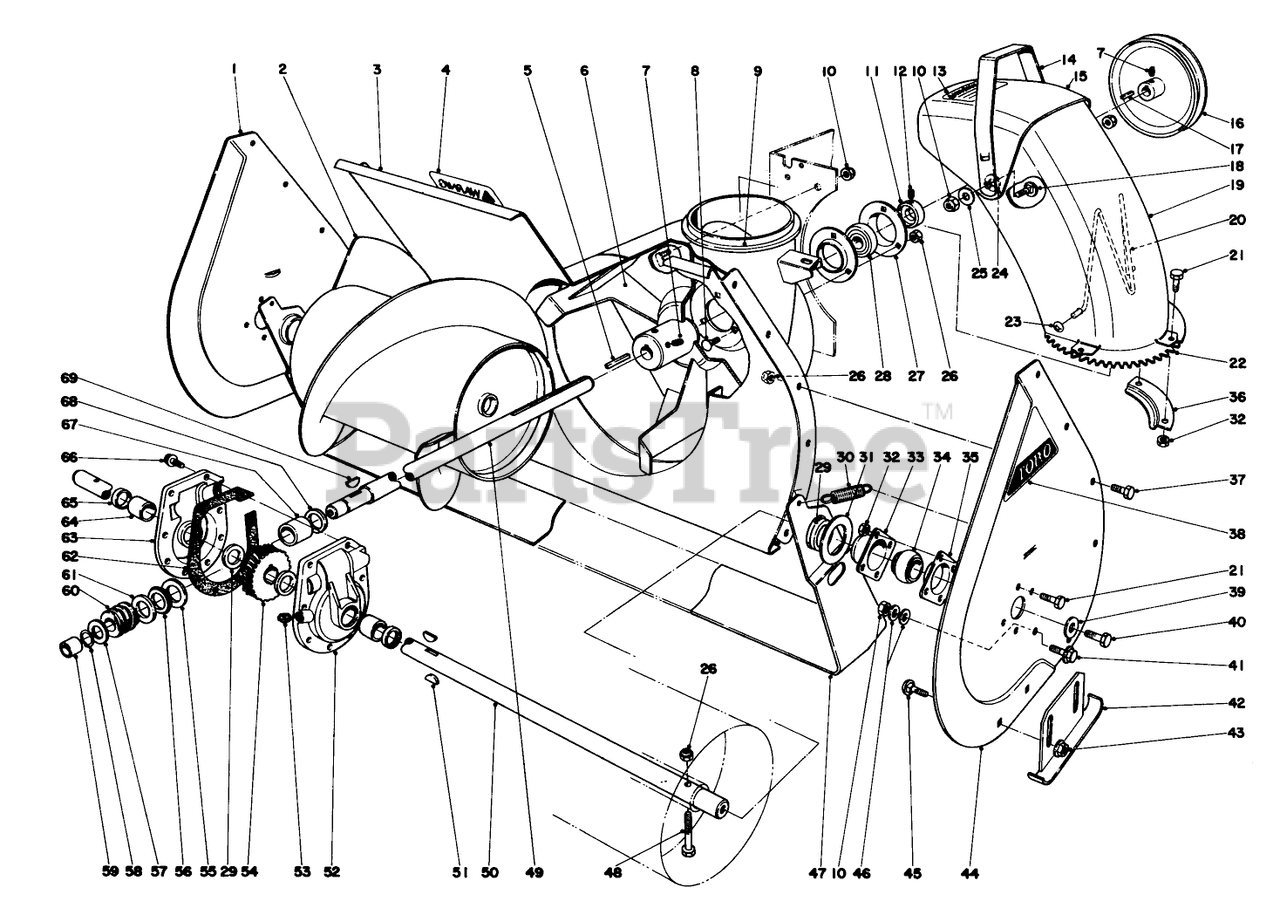

Auger Assambly (continued) Parts Diagram

  • Title

1

Toro 20-1360

DISCONTINUED
(Superseded to 43-7440)

$

$

Not available

2

Toro 20-1190

See Supercession: 26-6140-03
(Superseded to 26-6140-03)

$

$

Not available

Toro 20-1240

DISCONTINUED

Note: Not illustrated

$

$

Not available

3

Toro 20-1110

See Supercession: 26-6090
(Superseded to 410087)

$

$

Not available

4

Toro 22-8130

See Supercession: 94-2568
(Superseded to 94-2568)

$11.99

$

In Stock, only 3 left!

0

5

Toro 6-8590

KEY

$13.99

$

Usually ships in 3-6 days

0

6

Toro 20-1260

IMPELLER WA *RO

$867.99

$

Usually ships in 3-6 days

0

7

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, Qty 12

0

8

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 5-7250

DISCONTINUED

$

$

Not available

10

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, only 2 left!

0

11

Toro 251-231

EXT LOCKING COLLAR

$40.99

$

In Stock, only 1 left!

0

12

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

13

Toro 22-8730

DISCONTINUED

$

$

Not available

14

Toro 20-1410

DEFLECTOR HANDLE *B

$99.99

$

Usually ships in 3-6 days

0

15

Toro 20-1400

DISCONTINUED
(Superseded to 11-9379)

$

$

Not available

16

Toro 20-1310

IMPELLER PULLEY

$309.99

$

Usually ships in 3-6 days

0

17

Toro 3-6857

SQUARE KEY

$19.99

$

Usually ships in 3-6 days

0

18

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 5

0

19

Toro 20-1390

See Supercession: 56-2450
(Superseded to 56-2450)

$

$

Not available

20

Toro 12-2040

WIRE-CHUTE

$

$

Not available

21

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 20-1370

DISCONTINUED
(Superseded to 43-7470-03)

$

$

Not available

23

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

24

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

25

Toro 3290-340

WASHER-BELLEVILLE

$8.99

$

In Stock, Qty 6

0

26

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, only 3 left!

0

27

Toro 251-229

BRG FLANGE

$50.99

$

In Stock, only 1 left!

0

28

Toro 251-224

BALL BRG W/COLLAR

$65.99

$

Usually ships in 3-6 days

0

29

Toro 252-71

WASHER-THRUST

$18.99

$

Usually ships in 3-6 days

0

30

Toro 5-7290

SPRING-TENSION

$26.99

$

In Stock, only 1 left!

0

31

Toro 20-0300

SCRAPER BLADE SPACER

$10.99

$

Usually ships in 3-6 days

0

32

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

33

Toro 20-1000

BEARING-FLANGE, REAR

$12.99

$

In Stock, Qty 5

0

34

Toro 20-0980

BEARING

$25.99

$

In Stock, Qty 5

0

35

Toro 20-0990

BEARING-FLANGE, FRONT

$12.99

$

In Stock, Qty 5

0

36

Toro 20-1380

DISCONTINUED

$

$

Not available

37

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

38

Toro 17-6500

DISCONTINUED

$

$

Not available

39

Toro 3-0750

WASHER

$8.49

$

Usually ships in 3-6 days

0

40

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

41

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

42

Toro 8-8460

See Supercession: 20-2840-01
(Superseded to 20-2840-01)

$45.99

$

In Stock, Qty 9

0

43

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

44

Toro 20-1340

See Supercession: 43-7430
(Superseded to 43-7430)

$328.99

$

Usually ships in 3-6 days

0

45

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 5

0

46

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

47

Toro 2-1320

Scraper Blade

$

$

Currently unavailable

48

Toro 17-7030

See Supercession: 322-12
(Superseded to 322-12)

$2.49

$

In Stock, Qty 7

0

49

Toro 20-1180

DISCONTINUED
(Superseded to 66-6941)

$

$

Not available

50

Toro 20-1170

DISCONTINUED

$

$

Not available

51

Toro 3257-33

KEY-WOODRUFF

$2.49

$

Usually ships in 3-6 days

0

52

Toro 19-6970

See Supercession: 14-2459
(Superseded to 14-2459)

$164.99

$

In Stock, only 2 left!

0

53

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

54

Toro 5-7180

GEAR-WORM, 27T

$173.99

$

Usually ships in 3-6 days

0

55

Toro 252-78

WASHER-THRUST

$24.99

$

In Stock, only 2 left!

0

56

Toro 252-76

BEARING-THRUST

$23.99

$

In Stock, only 2 left!

0

57

Toro 3-8664

WASHER-THRUST

$7.49

$

In Stock, only 1 left!

0

58

Toro 32120-72

RING-SNAP

$2.49

$

In Stock, Qty 5

0

59

Toro 256-32

BUSHING

$11.99

$

In Stock, Qty 9

0

60

Toro 5-7170

GEAR

$124.99

$

In Stock, only 3 left!

0

61

Toro 252-77

THRUST-WASHER

$11.99

$

In Stock, only 3 left!

0

62

Toro 19-8520

See Supercession: 51-0460
(Superseded to 51-0460)

$9.99

$

In Stock, Qty 5

0

63

Toro 19-6980

See Supercession: 14-2449
(Superseded to 14-2449)

$164.99

$

In Stock, only 2 left!

0

64

Toro 256-237

BUSHING

$17.99

$

In Stock, only 2 left!

0

65

Toro 7-0045

SEAL-OIL

$20.99

$

In Stock, Qty 15

0

66

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

67

Toro 20-3210

BUSHING-SPECIAL

$13.99

$

In Stock, only 3 left!

0

68

Toro 237-87

RING-QUAD

$7.99

$

In Stock, Qty 7

0

69

Toro 3257-23

KEY-WOODRUFF

$7.99

$

In Stock, Qty 6

0

Toro 20-0690

DRIFT BREAKER 24

Note: Optional equipment

$134.99

$

Usually ships in 3-6 days

0

Toro 20-2850

See Supercession: 20-2840-01
(Superseded to 20-2840-01)

Note: Optional equipment

$45.99

$

In Stock, Qty 9

0

Toro 19-7000

See Supercession: 19-7002
(Superseded to 19-7002)

Note: Not illustrated

$

$

Not available
