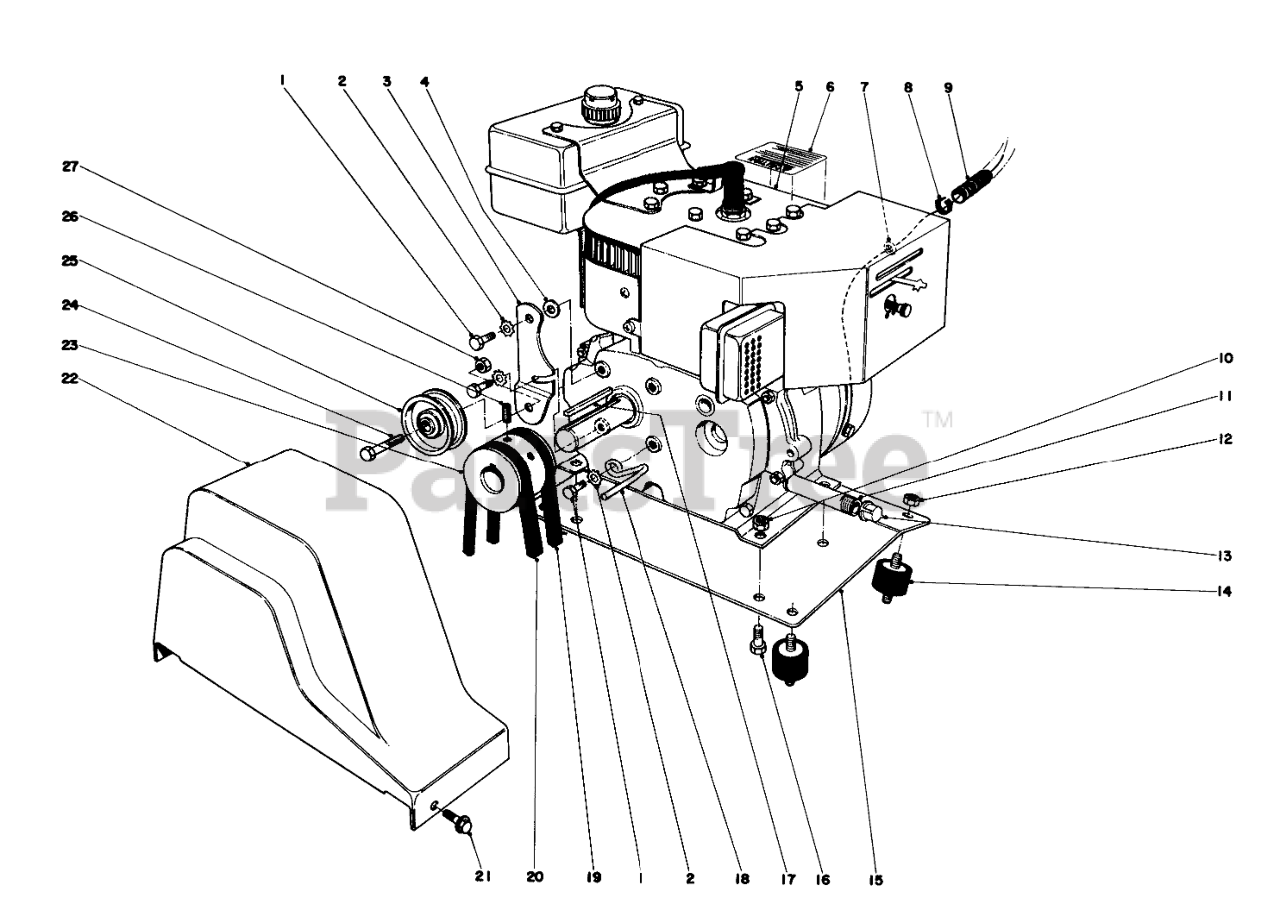

31625 (524) - Toro 24" Snow Thrower (SN: 005000001 - 005999999) (1975) ENGINE ASSEMBLY Parts Diagram

24" Snow Thrower

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

2

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

3

Toro 20-1800

ENGINE IDLER ARM

$

$

Not available

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 221-473

Engine (Model No. 31625)

$

$

Currently unavailable

Toro 221-458

Engine (Model No. 31677)

Note: Not illustrated

$

$

Currently unavailable

6

Toro 22-9990

Decal Instruction

$

$

Currently unavailable

7

Toro 237-85

GROMMET

$1.49

$

Usually ships in 3-6 days

0

8

Toro 2412-48

RING FITTING

$

$

Not available

9

Toro 22-9090

Cover Harness

$

$

Not available

10

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

11

Toro 289-34

NIPPLE-PIPE

$34.99

$

Usually ships in 3-6 days

0

12

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

13

Toro 288-2

CAP-PIPE

$16.99

$

In Stock, only 1 left!

0

14

Toro 2-3130

Engine Mount

$

$

Currently unavailable

15

Toro 20-1790

Engine Mounting Plate

$

$

Not available

16

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

17

$14.99

$

Usually ships in 3-6 days

0

18

Toro 17-5530

BELT RETAINER

$

$

Not available

19

Toro 20-1820

V-BELT

$22.99

$

In Stock, only 2 left!

0

20

Toro 17-0850

V-Belt
(Superseded to 26-9670)

$25.99

$

In Stock, only 1 left!

0

21

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

22

Toro 20-1830

BELT GUARD

$

$

Not available

23

Toro 21-4100

ENGINE PULLEY

$

$

Not available

24

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

25

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0

26

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$12.99

$

Usually ships in 3-6 days

0

27

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

Toro 23-3790

Starter Kit
(Superseded to 38036)

Note: Optional equipment

$

$

Not available

Toro 20-7100

Starter Kit Domestic (Optional)
(Superseded to 38-7590)

Note: Optional equipment

$

$

Not available

Toro 23-4410

Starter Motor Complete
(Superseded to 38-7590)

Note: Optional equipment

$

$

Not available
